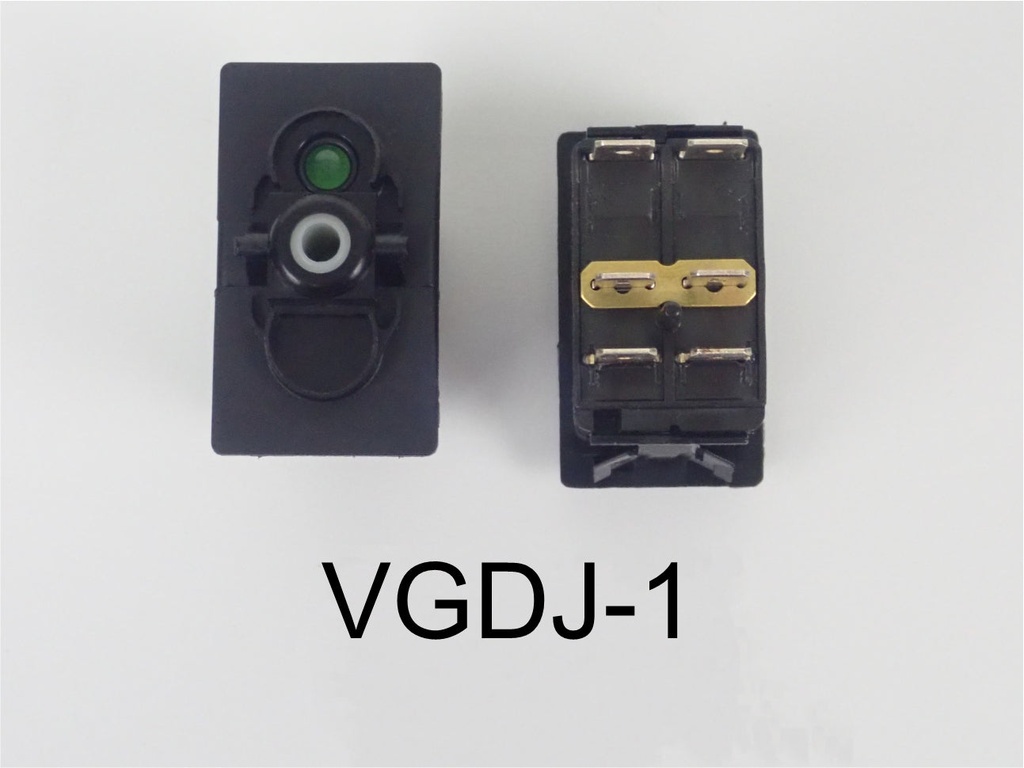

VGDJ-1 Carling ON/ON/OFF double pole rocker switch w/independent green lamp, for nav lights.
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009069
Details: Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's VGDJ-1 ON/ON/OFF DPDT W/ SINGLE 12V INDEPENDENT GREEN LAMP Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) Specifications: FP Marine SKU:ELC-009069 Series: Contura V Function:Latching ON/ON DPDT Lamp: Single 12V Independent Green position 1 (top), *OEM Part #(s): VGDJ-1 *Sea Ray Part #(s): *Substitution(s): * Part #(s) may vary among boat models/years & are for search/reference only. Carlingswitch ON/ON/OFF double pole V series Contura rocker switch body. This is a Switch Body Only. Actuators are sold separately. OFF/ON/ON configuration, double pole double throw. 12V green independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position. 6 terminal; Terminals #7 and #8 are for the lamp, Terminal #7 is the ground and Terminal #8 is the power. Carling special circuit OFF/2&3/2&3,5&6. Terminals #2 and #5 are the power in with an external jumper between #2 and #5. Terminals #3 and #6 are power out when the actuator is in the Up position. Terminal #3 is Power out when the actuator in the Middle position. Common for Marine, RV, automotive, and other 12V DC applications. Sea Ray uses this as a switch for navigation lights. Both the anchor and bow light are on in the first position and just the anchor light is on in the second position.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
