VGDJ-1 Carling ON/ON/OFF double pole rocker switch w/independent green lamp, for nav lights.

Web Listing Details

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

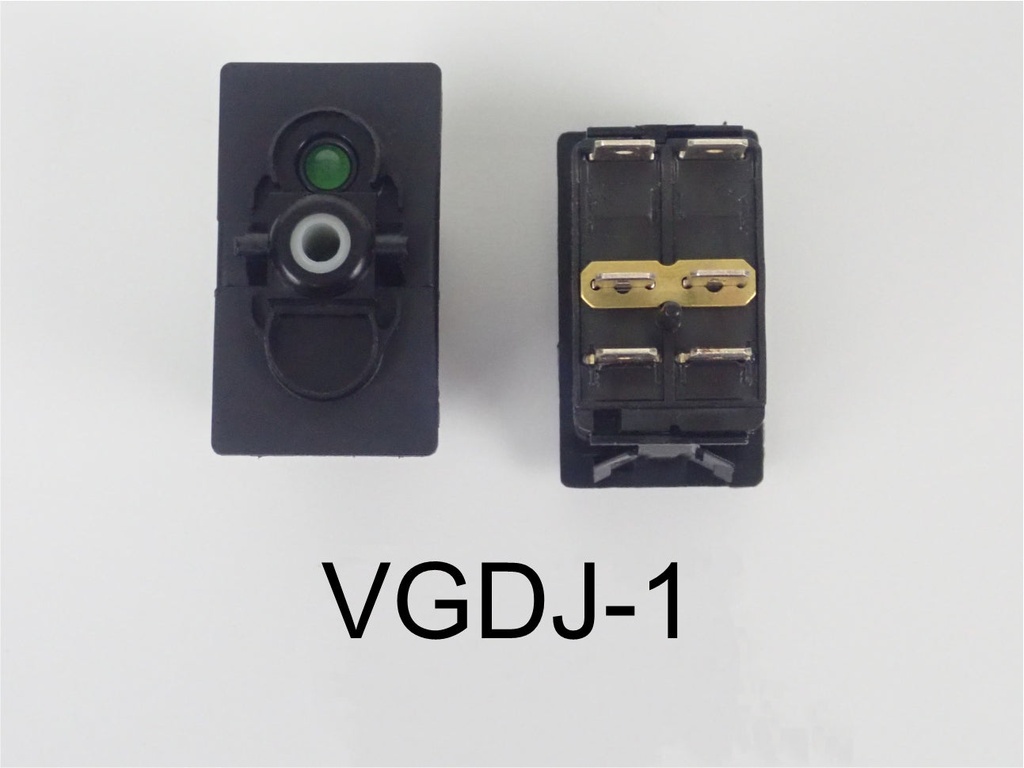

VGDJ-1 ON/ON/OFF DPDT W/ SINGLE 12V INDEPENDENT GREEN LAMP

Specifications:

• FP Marine SKU:ELC-009069
• Series: Contura V

• Function:Latching ON/ON DPDT

• Lamp: Single 12V Independent Green position 1 (top),

• *OEM Part #(s): VGDJ-1
• *Sea Ray Part #(s):
• *Substitution(s):

* Part #(s) may vary among boat models/years & are for search/reference only.

• This is a Switch Body Only. Actuators are sold separately.
• OFF/ON/ON configuration, double pole double throw.

• 12V green independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.

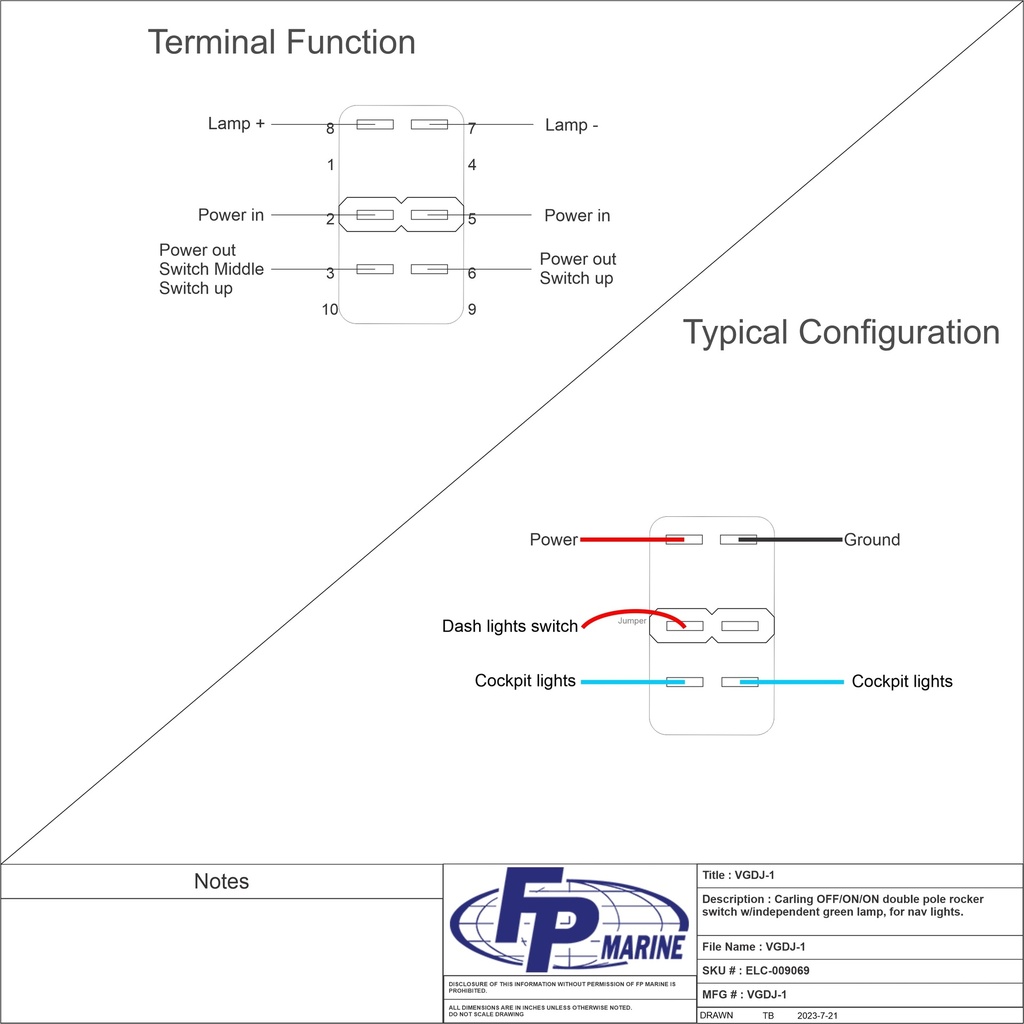

• 6 terminal; Terminals #7 and #8 are for the lamp, Terminal #7 is the ground and Terminal #8 is the power. Carling special circuit OFF/2&3/2&3,5&6. Terminals #2 and #5 are the power in with an external jumper between #2 and #5. Terminals #3 and #6 are power out when the actuator is in the Up position. Terminal #3 is Power out when the actuator in the Middle position.


• Common for Marine, RV, automotive, and other 12V DC applications. Sea Ray uses this as a switch for navigation lights. Both the anchor and bow light are on in the first position and just the anchor light is on in the second position.
