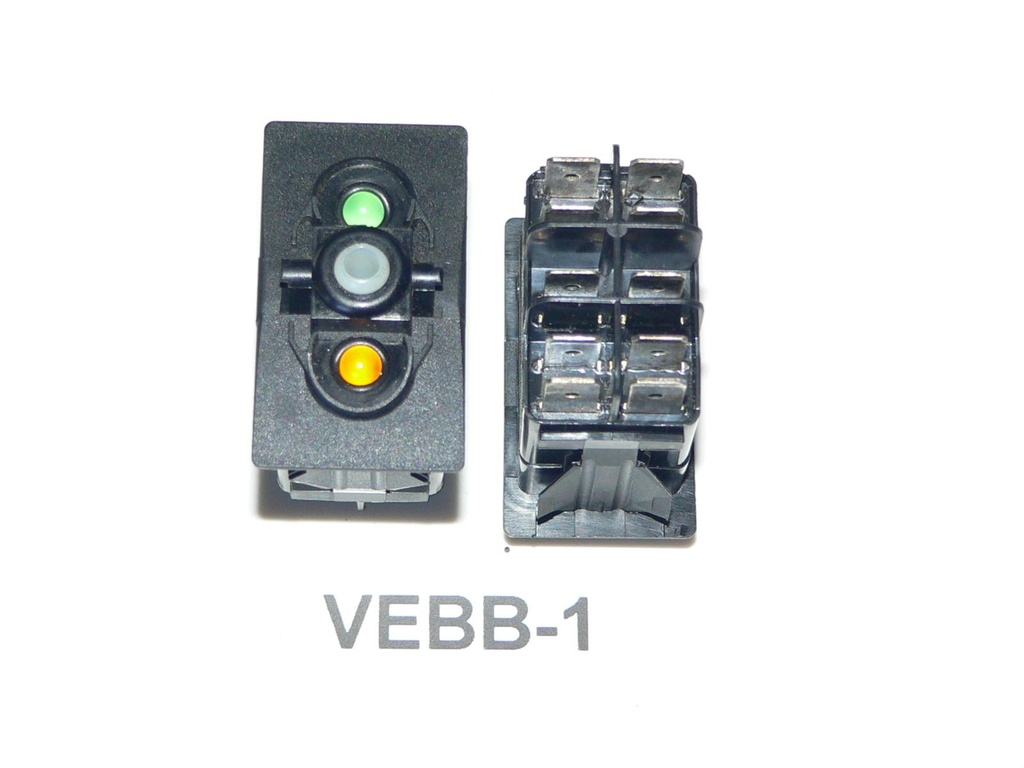

VEBB-1 Carling ON/ON/ON rocker switch, special circuit w/24 volt lamps
PNL-BW180VT-stg
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON/ON configuration.
- 10 terminal; special circuit ON/ON/ON - Terminals #7,#9 are Ground for the Lamps and Terminals #8,#10 are Power in for the lamps. Terminals #2,#5 are power in. Terminals #3,#6 are Power out when the actuator is in the up position. Terminals #3,#4 are Power out when the actuator is in the middle position. Terminals #1,#4 are Power out when the actuator is in the down position.
- Independent green 24 volt LED lamp in position 1 - wired to terminal #7 and #8
- Independent Amber 24 volt LED lamp in position 2 - wired to terminal #9 and #10
- Independent lamps are illuminated independently of actuator position. Independent lamps have both a negative (ground) terminal and a positive terminal that must be wired externally to illuminate. If you want an independent lamp to illuminate when the actuator is in a particular position, you have to run a jumper wire from a terminal activated by the actuator position (like #1,3,4, or 6) to a power terminal for one of the lamps (like #8 or 10) ....watch the videos!!
- Choose from a variety of actuators. Actuator part numbers begin with VV.
Product Overview
If you are replacing a worn switch, VEBB 1 Carling ON/ON/ON rocker switch, special circuit w/24 volt lamps is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a professional marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with personable real people with real hands on expertise.
Specifications and Details
Web Listing Details
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON/ON configuration.
- 10 terminal; special circuit ON/ON/ON - Terminals #7,#9 are Ground for the Lamps and Terminals #8,#10 are Power in for the lamps. Terminals #2,#5 are power in. Terminals #3,#6 are Power out when the actuator is in the up position. Terminals #3,#4 are Power out when the actuator is in the middle position. Terminals #1,#4 are Power out when the actuator is in the down position.
- Independent green 24 volt LED lamp in position 1 - wired to terminal #7 and #8
- Independent Amber 24 volt LED lamp in position 2 - wired to terminal #9 and #10
- Independent lamps are illuminated independently of actuator position. Independent lamps have both a negative (ground) terminal and a positive terminal that must be wired externally to illuminate. If you want an independent lamp to illuminate when the actuator is in a particular position, you have to run a jumper wire from a terminal activated by the actuator position (like #1,3,4, or 6) to a power terminal for one of the lamps (like #8 or 10) ....watch the videos!!
- Choose from a variety of actuators. Actuator part numbers begin with VV.
Fitment and Ordering Support
In marine electrical service work, VEBB 1 Carling ON/ON/ON rocker switch, special circuit w/24 volt lamps supports indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is responsive. You will reach personable human support with real experience who can help confirm the right part.
Internal Reference:
ELC-009065
