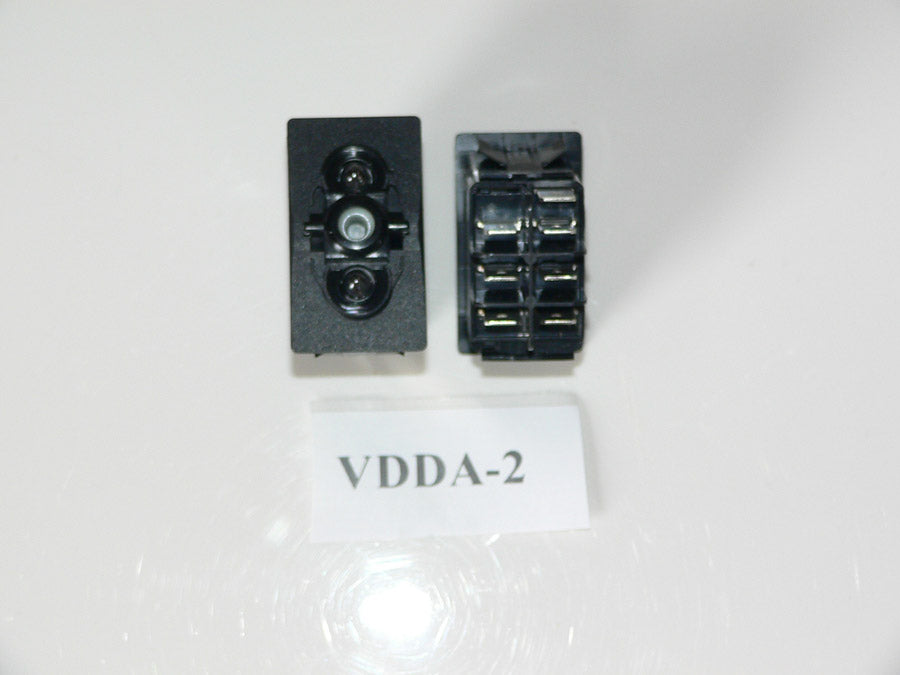

VDDA-2 Carling ON/ON double pole rocker switch w/2 lamps lamps
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009061
Details: Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's VDDA-2 ON/ON DPST TERMINAL GUARDS W/ DOUBLE 12V DEPENDENT CLEAR LAMPS Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) Specifications: FP Marine SKU: ELC-009061 Series: Contura V Function:Latching ON/ON DPST Lamp: Single 12V Independent Green position 1 (top), *OEM Part #(s): VDDA-2*Sea Ray Part #(s): *Substitution(s): * Part #(s) may vary among boat models/years & are for search/reference only. Carlingswitch ON/ON double pole V series Contura rocker switch body. This is a Switch Body Only. Actuators are sold separately. ON/ON configuration. 2&3,5&6/1&2,4&5 Clear dependent lamp in position 1 -wired to terminal #7(ground) and #3 Clear dependent lamp in position 2 -wired to terminal #7(ground) and #1 and #2, This is a unique switch and it is highly recommended that you watch the videos to be more comfortable wiring this switch. It is important to know how the terminals are numbered and you can wire this switch in many different ways. 7 terminal; Terminal #7 is the ground for both lamps. Terminals #2,#5 are Power in. Terminals #3,#6 are power out when the actuator is in the up position and Terminal #1,#4 are power out when the actuator is in the down position. This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
