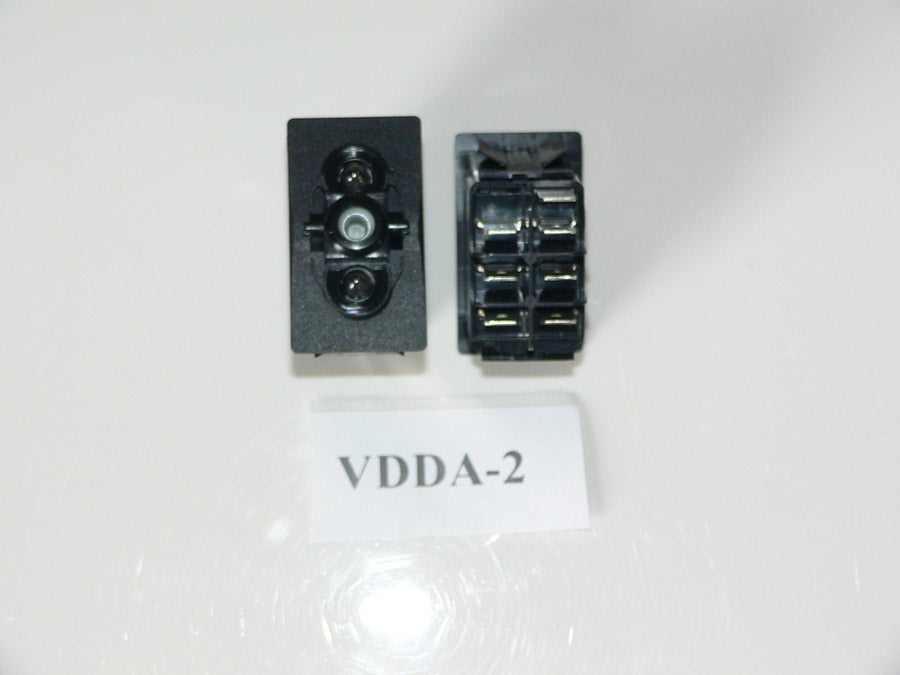

VDDA-2 ON/ON DPST TERMINAL GUARDS W/ DOUBLE 12V DEPENDENT CLEAR LAMPS
Specifications:
- FP Marine SKU: ELC-009061
- Series: Contura V
- Function:Latching ON/ON DPST
- Lamp: Single 12V Independent Green position 1 (top),
- *OEM Part #(s): VDDA-2
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration. 2&3,5&6/1&2,4&5
- Clear dependent lamp in position 1 -wired to terminal #7(ground) and #3
- Clear dependent lamp in position 2 -wired to terminal #7(ground) and #1 and #2, This is a unique switch and it is highly recommended that you watch the videos to be more comfortable wiring this switch. It is important to know how the terminals are numbered and you can wire this switch in many different ways.
- 7 terminal; Terminal #7 is the ground for both lamps. Terminals #2,#5 are Power in. Terminals #3,#6 are power out when the actuator is in the up position and Terminal #1,#4 are power out when the actuator is in the down position.
- This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
