VDD1-1 Carling ON/ON double pole rocker switch w/independent lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VDD1-1 ON/ON DPST W/ SINGLE 12V INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009059
- Series: Contura V
- Function:Latching ON/ON DPST
- Lamp: Single 12V Independent Clear position 1 (top),
- *OEM Part #(s): VDD1-1
- *Sea Ray Part #(s): # 648063
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.

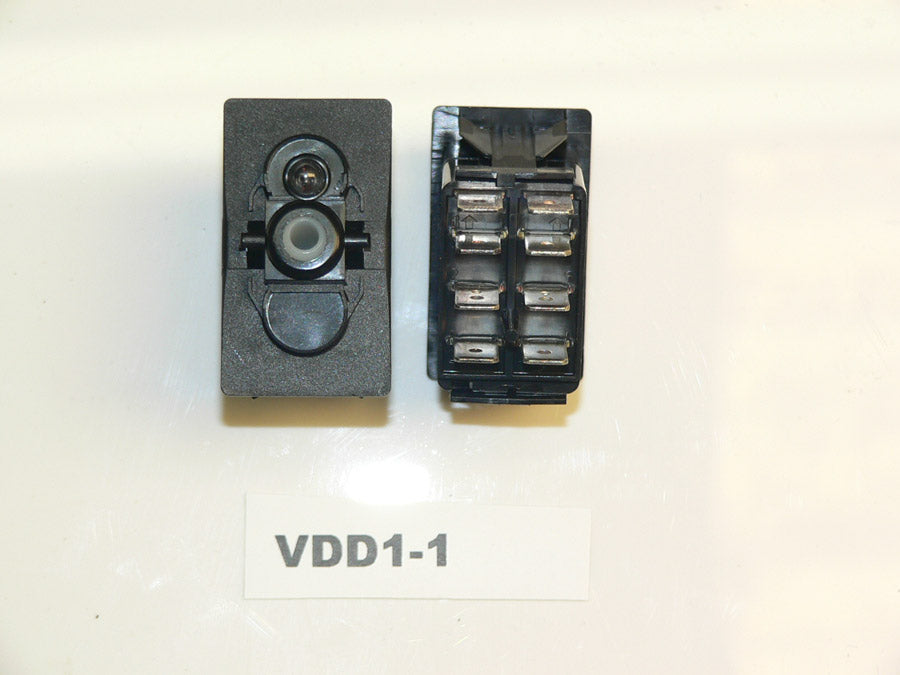

- 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.
- 8 terminal; Terminal #7 is the ground and Terminal #8 is the power for the lamp. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. Terminal #2,#5 are power in. Terminals #3,#6 are power out when the actuator is in the Up position and Terminals #1,#4 are power out when the actuator is in the Down position. In a double pole switch, the two sides of the switch are independent of each other.
- This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
Product Overview
If you are replacing a worn switch, VDD1 1 Carling ON/ON double pole rocker switch w/independent lamp is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a new option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be durable and finished to a quality standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with easy to work with human support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VDD1-1 ON/ON DPST W/ SINGLE 12V INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009059
- Series: Contura V
- Function:Latching ON/ON DPST
- Lamp: Single 12V Independent Clear position 1 (top),
- *OEM Part #(s): VDD1-1
- *Sea Ray Part #(s): # 648063
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.
- 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.
- 8 terminal; Terminal #7 is the ground and Terminal #8 is the power for the lamp. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. Terminal #2,#5 are power in. Terminals #3,#6 are power out when the actuator is in the Up position and Terminals #1,#4 are power out when the actuator is in the Down position. In a double pole switch, the two sides of the switch are independent of each other.
- This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
Fitment and Ordering Support
In marine electrical service work, VDD1 1 Carling ON/ON double pole rocker switch w/independent lamp supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach friendly human support with real know how who can help confirm the right part.
