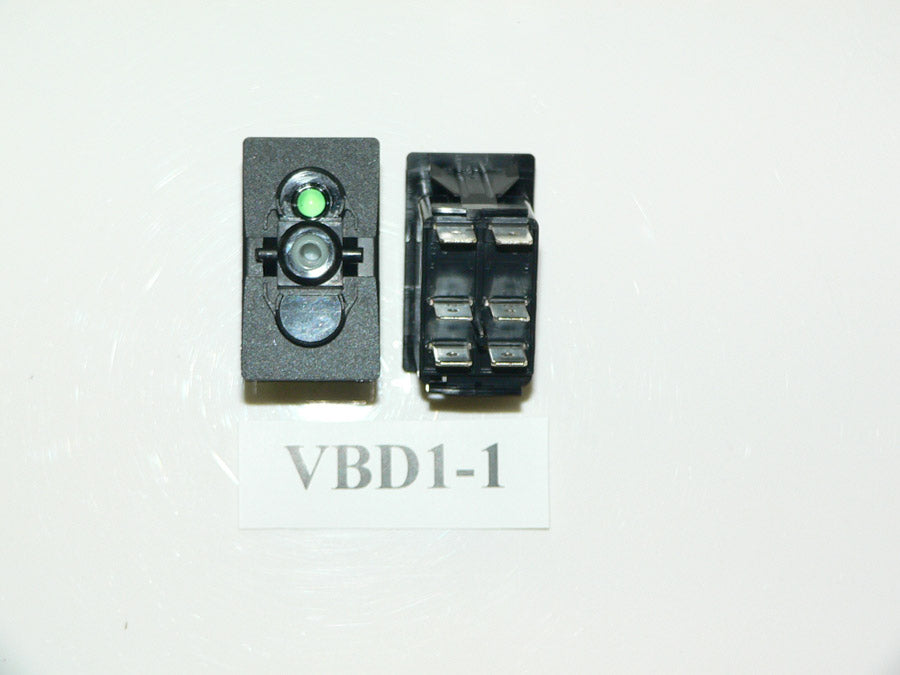

VBD1-1 Carling (ON)/OFF Momentary double pole rocker switch w/independent Green 12V lamp

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

VBD1-1 (ON)/OFF DPST W/ SINGLE 12V INDEPENDENT GREEN LAMP

Specifications:

• FP Marine SKU:ELC-009056
• Series: Contura V

• Function:Latching ON/OFF DPST

• Lamp: Single 12V Independent Green position 1 (top),

• *OEM Part #(s): VBD1-1
• *Sea Ray Part #(s):
• *Substitution(s):

* Part #(s) may vary among boat models/years & are for search/reference only.

• (ON)/OFF configuration. Momentary ON, normally OFF
• Double Pole

• 12V independent Green lamp in the 1 position.

• An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position

• 6 terminal; Terminal #7 is the power and Terminal #8 ground for the lamp, Terminals #2,#5 are power in and Terminals (#3),(#6) are Momentary power out. The two sides of the switch are independent of each other.

• Part# VBD1-1 , can substitute for VBDA-1 which has a clear lamp

• This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc. Common for Marine, RV, automotive, and other 12 volt DC applications.
