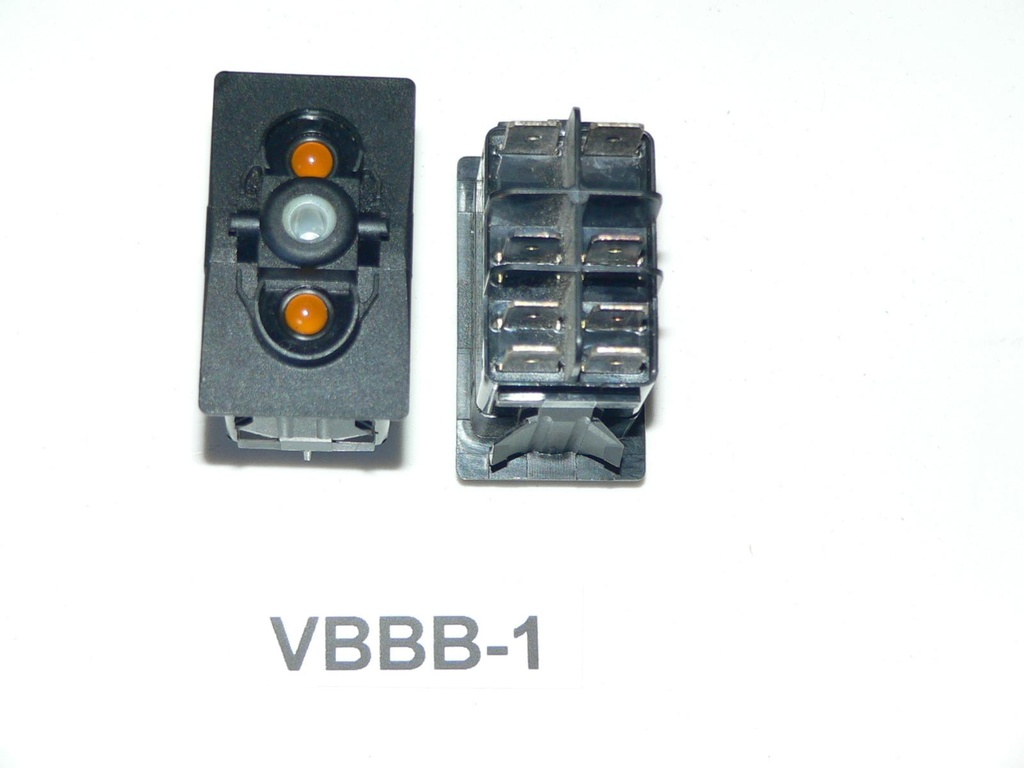

VBBB-1 Carling rocker switch (ON)/OFF momentary Double Pole Independent Amber lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VBBB-1 (ON)/OFF DPST TERMINAL GUARDS W/ DOUBLE 24V INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU: ELC-009054
- Series: Contura V
- Function: Momentary (ON)/OFF DPST
- Lamp: Double 24V Independent Amber position 1 (top), Independent AMber position 2 (bottom)
- *OEM Part #(s): VBBB-1
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- Part# VBBB-1
- (ON)/OFF configuration. Momentary ON, normally OFF
- Double Pole. The two sides of the switch are independent of each other. Typically used to activate tow accessories at the same time like horns, solenoids, latching relays, etc.
- 24V independent Amber lamp in the 1 position. Wired to #7, #8
- 24V independent Amber lamp in the 2 position. Wired to #9, #10
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 8 terminal; Terminal #7 is the ground for the lamp in 1 position and Terminal #8 is the power feed for that lamp. Terminals #2,#5 are power in. Terminals (#3),(#6) are power out. Terminal #9 is the ground for the lamp in 2 position and Terminal #10 is the power feed for that lamp
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc. Common for Marine, RV, automotive, and other 12 volt DC applications.
Product Overview
VBBB 1 Carling rocker switch (ON)/OFF momentary Double Pole Independent Amber lamps is a trusted choice when you want a clean install and consistent switching performance. It is commonly used for ignition and starting circuits. It is a expert marine replacement part. It is built to be long lasting and finished to a high quality standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with personable real people with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VBBB-1 (ON)/OFF DPST TERMINAL GUARDS W/ DOUBLE 24V INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU: ELC-009054
- Series: Contura V
- Function: Momentary (ON)/OFF DPST
- Lamp: Double 24V Independent Amber position 1 (top), Independent AMber position 2 (bottom)
- *OEM Part #(s): VBBB-1
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- Part# VBBB-1
- (ON)/OFF configuration. Momentary ON, normally OFF
- Double Pole. The two sides of the switch are independent of each other. Typically used to activate tow accessories at the same time like horns, solenoids, latching relays, etc.
- 24V independent Amber lamp in the 1 position. Wired to #7, #8
- 24V independent Amber lamp in the 2 position. Wired to #9, #10
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 8 terminal; Terminal #7 is the ground for the lamp in 1 position and Terminal #8 is the power feed for that lamp. Terminals #2,#5 are power in. Terminals (#3),(#6) are power out. Terminal #9 is the ground for the lamp in 2 position and Terminal #10 is the power feed for that lamp
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc. Common for Marine, RV, automotive, and other 12 volt DC applications.
Fitment and Ordering Support
VBBB 1 Carling rocker switch (ON)/OFF momentary Double Pole Independent Amber lamps is commonly used for ignition and starting circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach personable people first support with real hands on expertise who can help confirm the right part.
