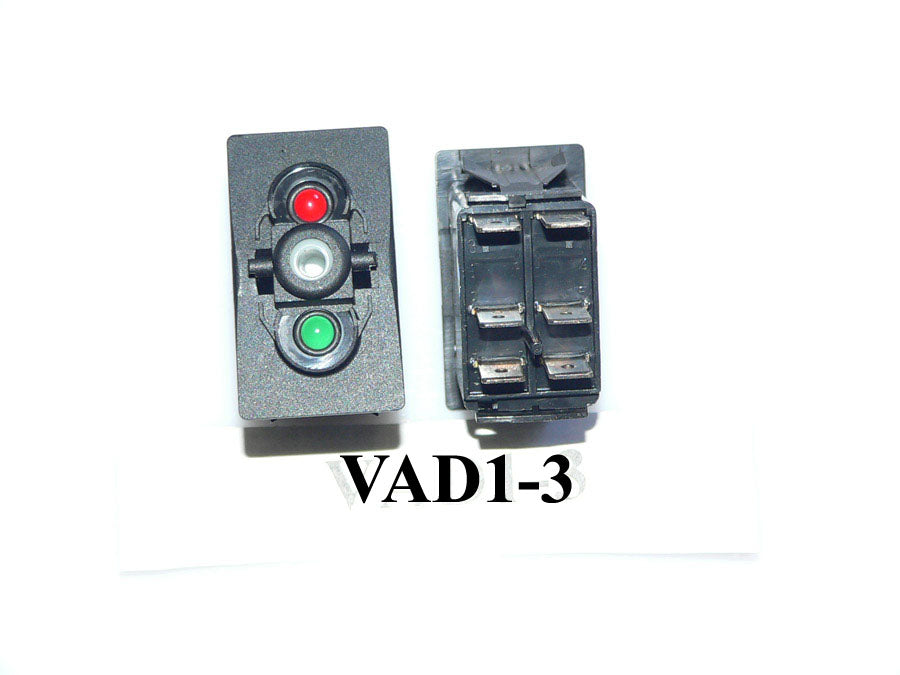

VAD1-3 Carling rocker switch On/Off DP Independent Red and Dependent Green lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VAD1-3 ON/OFF DPST W/ DOUBLE 12V INDEPENDENT RED AND DEPENDENT GREEN LAMPS
Specifications:
- FP Marine SKU: ELC-009048
- Series: Contura V
- Function:Latching ON/OFF DPST
- Lamp: Double 12V Dependent Green position 1 (top), Independent Red position 2 (bottom)
- OEM Part #(s): VAD1-3 Sea Ray Part #(s): VAD1FTHB
- Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- ON/OFF configuration
- Double Pole, the two sides of the switch are independent of each other. This is a very odd configuration and not a typical double pole switch - read the full description carefully. Though this is a double pole switch, it is typically used to power only one accessory.
- 12V Red independent LED lamp in the 1 position is wired to terminals (#7 -) and (#8 +) and illuminates independently of actuator position.
- 12V Green dependent LED lamp in 2 position is wired to terminals (#3+)(internally) and (#6-). This lamp illuminates when the switch is actuated to the ON position.
- An independent lamp has both a positive and negative terminal as opposed to a dependent lamp that just has a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 6 terminal; Terminal #7 is the ground for the red independent lamp in position 1. Terminal #8 is the power feed for the red independent lamp in position 1. Terminal #2 is power in. Terminal #3 is power out (and also the positive feed for the green lamp in position 2). Terminal #5 is not used, Terminal #6 is the ground for the Green lamp in position 2. Be careful as the terminal #2-#3 and #5-#6 connections are made when the actuator is depressed. Terminal #2 which will energize #3 when actuator depressed. Ground will be connected to terminal #6 to illuminate the bulb so you must be sure not to connect power to terminal #5 like you would typically do on a double pole switch. This will create a dead short circuit.
Product Overview
If you are replacing a worn switch, VAD1 3 Carling rocker switch On/Off DP Independent Red and Dependent Green lamps is a reliable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with easy to work with real people with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VAD1-3 ON/OFF DPST W/ DOUBLE 12V INDEPENDENT RED AND DEPENDENT GREEN LAMPS
Specifications:
- FP Marine SKU: ELC-009048
- Series: Contura V
- Function:Latching ON/OFF DPST
- Lamp: Double 12V Dependent Green position 1 (top), Independent Red position 2 (bottom)
- OEM Part #(s): VAD1-3 Sea Ray Part #(s): VAD1FTHB
- Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- ON/OFF configuration
- Double Pole, the two sides of the switch are independent of each other. This is a very odd configuration and not a typical double pole switch - read the full description carefully. Though this is a double pole switch, it is typically used to power only one accessory.
- 12V Red independent LED lamp in the 1 position is wired to terminals (#7 -) and (#8 +) and illuminates independently of actuator position.
- 12V Green dependent LED lamp in 2 position is wired to terminals (#3+)(internally) and (#6-). This lamp illuminates when the switch is actuated to the ON position.
- An independent lamp has both a positive and negative terminal as opposed to a dependent lamp that just has a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 6 terminal; Terminal #7 is the ground for the red independent lamp in position 1. Terminal #8 is the power feed for the red independent lamp in position 1. Terminal #2 is power in. Terminal #3 is power out (and also the positive feed for the green lamp in position 2). Terminal #5 is not used, Terminal #6 is the ground for the Green lamp in position 2. Be careful as the terminal #2-#3 and #5-#6 connections are made when the actuator is depressed. Terminal #2 which will energize #3 when actuator depressed. Ground will be connected to terminal #6 to illuminate the bulb so you must be sure not to connect power to terminal #5 like you would typically do on a double pole switch. This will create a dead short circuit.
Fitment and Ordering Support
In marine electrical service work, VAD1 3 Carling rocker switch On/Off DP Independent Red and Dependent Green lamps supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach friendly human support with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-009048
