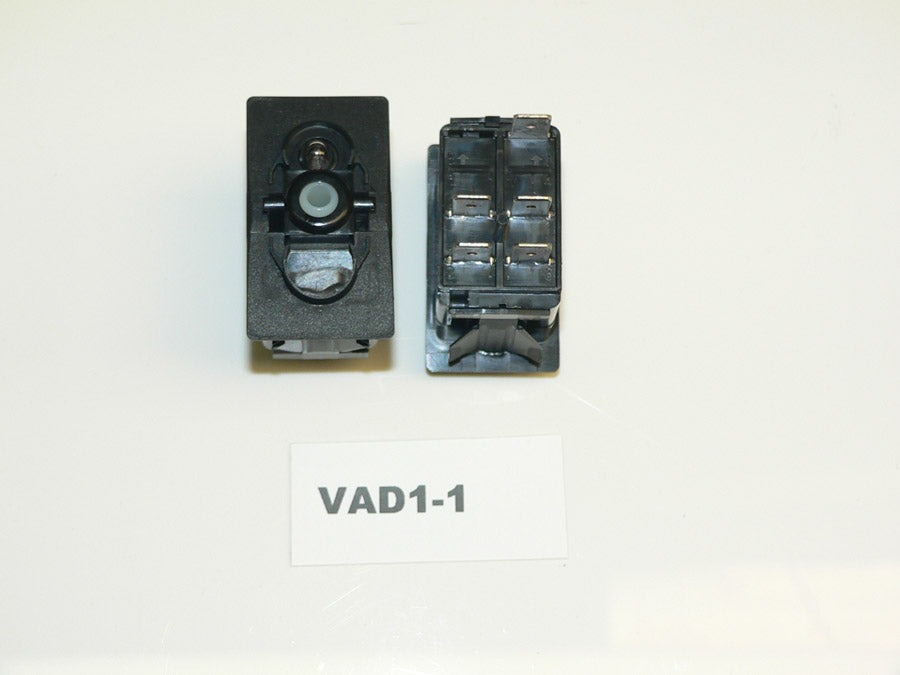

VAD1-1 Carling ON/OFF double pole rocker switch w/lamp
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009047
Details: Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's VAD1-1 Carling ON/OFF double pole rocker switch w/lamp Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) ON/OFF configuration The double pole switch is most often used to operate two separate lights, pumps, bilge blowers, etc. Sea Ray uses this switch for navigation lights in some model boats. The two sides of the switch are independent of each other. 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position. 5 terminal; Top right terminal (#7) is the ground for the lamp. The middle two terminals, (#2) and (#5) are power in. The bottom two terminals, (#3) and (#6) are power out. Common for Marine, RV, automotive, and other 12V DC applications. Part# VAD1-1 Sea Ray part # 681510, old part # 0681510, 648030 (compare # of terminals and lamps) 1740286 Substitutes for VADA on/off. The VADA has plastic barriers between the terminals. You may receive either VAD1 or VADA depending upon availability. Choose from a variety of actuators with different lenses.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
