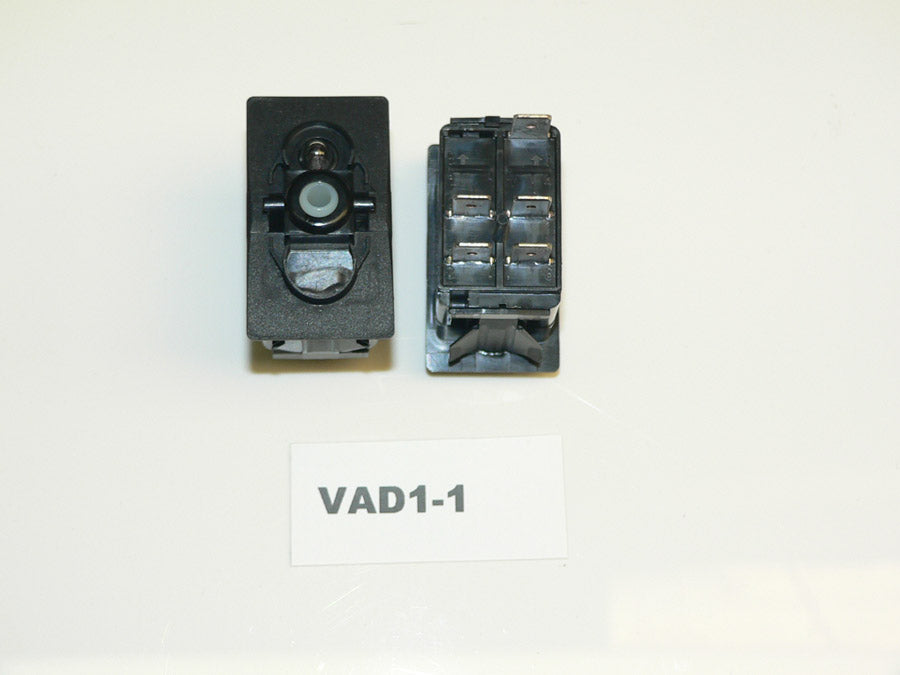

VAD1-1 Carling ON/OFF double pole rocker switch w/lamp
- ON/OFF configuration
- The double pole switch is most often used to operate two separate lights, pumps, bilge blowers, etc. Sea Ray uses this switch for navigation lights in some model boats. The two sides of the switch are independent of each other.
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 5 terminal; Top right terminal (#7) is the ground for the lamp. The middle two terminals, (#2) and (#5) are power in. The bottom two terminals, (#3) and (#6) are power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# VAD1-1 Sea Ray part # 681510, old part # 0681510, 648030 (compare # of terminals and lamps) 1740286
- Substitutes for VADA on/off. The VADA has plastic barriers between the terminals. You may receive either VAD1 or VADA depending upon availability.
- Choose from a variety of actuators with different lenses.
