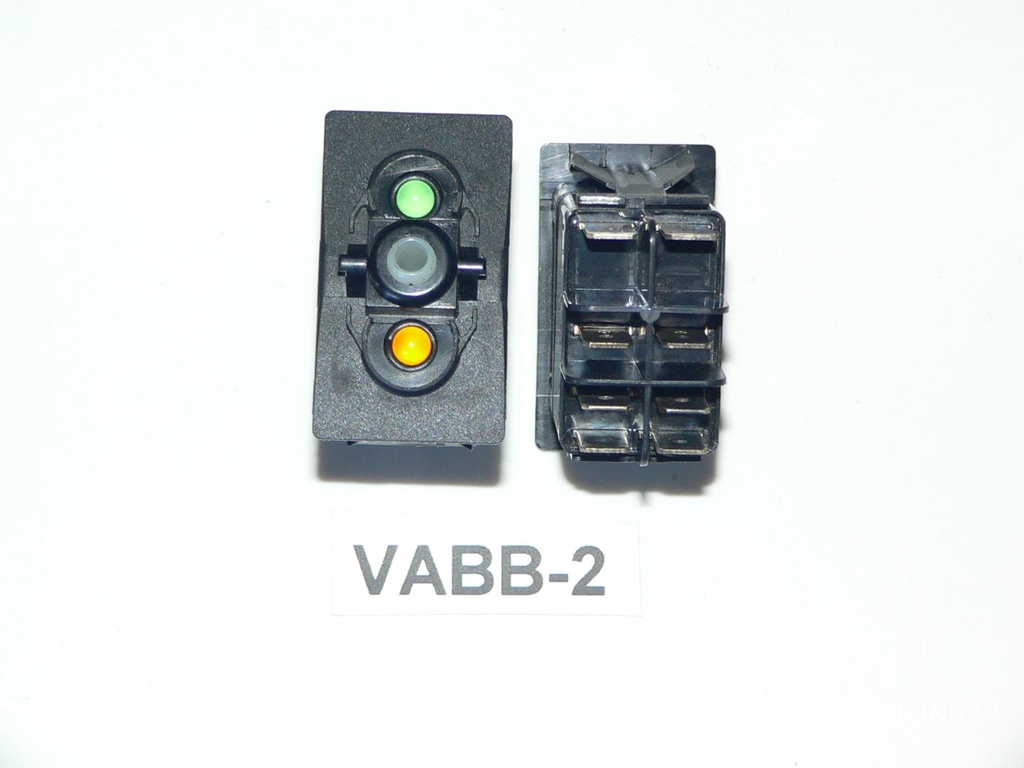

VABB-2 Carling ON/OFF double pole rocker switch w/24 Volt lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VABB-2 ON/OFF DPST TERMINAL GUARDS W/ DOUBLE 24V GREEN AND AMBER INDEPENDENT LAMPS
Specifications:
- FP Marine SKU:ELC-009046
- Series: Contura V
- Function:Latching ON/OFF DPST
- Lamp: Double 24V Independent Green position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): VABB-2
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- ON/OFF configuration
- The double pole switch is most often used to operate two separate lights, pumps, bilge blowers, etc.
-
24V green lamp in the 1 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 7- and 8+
-
24V amber lamp in the 2 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 9- and 10+
- An independent lamp has both a positive and negative terminal as opposed to the dependent lamps that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position
-
8 terminal; Terminal #7 is the ground for the green lamp, Terminal #8 is the power input for the green independent lamp. Terminals #2,#5 are power in. The next two terminals #3,#6 are power out. Bottom right terminal #9 is the ground for the amber lamp, The bottom left terminal #10 is the power input for the amber independent lamp. The two sides of the switch are independent of each other.
- Common for Marine, RV, automotive, and other 24V DC applications.
Product Overview
VABB 2 Carling ON/OFF double pole rocker switch w/24 Volt lamps is a dependable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be built to last and finished to a premium standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with easy to work with people first support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
VABB-2 ON/OFF DPST TERMINAL GUARDS W/ DOUBLE 24V GREEN AND AMBER INDEPENDENT LAMPS
Specifications:
- FP Marine SKU:ELC-009046
- Series: Contura V
- Function:Latching ON/OFF DPST
- Lamp: Double 24V Independent Green position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): VABB-2
- *Sea Ray Part #(s):
- *Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
- ON/OFF configuration
- The double pole switch is most often used to operate two separate lights, pumps, bilge blowers, etc.
-
24V green lamp in the 1 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 7- and 8+
-
24V amber lamp in the 2 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 9- and 10+
- An independent lamp has both a positive and negative terminal as opposed to the dependent lamps that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position
-
8 terminal; Terminal #7 is the ground for the green lamp, Terminal #8 is the power input for the green independent lamp. Terminals #2,#5 are power in. The next two terminals #3,#6 are power out. Bottom right terminal #9 is the ground for the amber lamp, The bottom left terminal #10 is the power input for the amber independent lamp. The two sides of the switch are independent of each other.
- Common for Marine, RV, automotive, and other 24V DC applications.
Fitment and Ordering Support
VABB 2 Carling ON/OFF double pole rocker switch w/24 Volt lamps is commonly used for indicator and control circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach friendly real people with real experience who can help confirm the right part.
