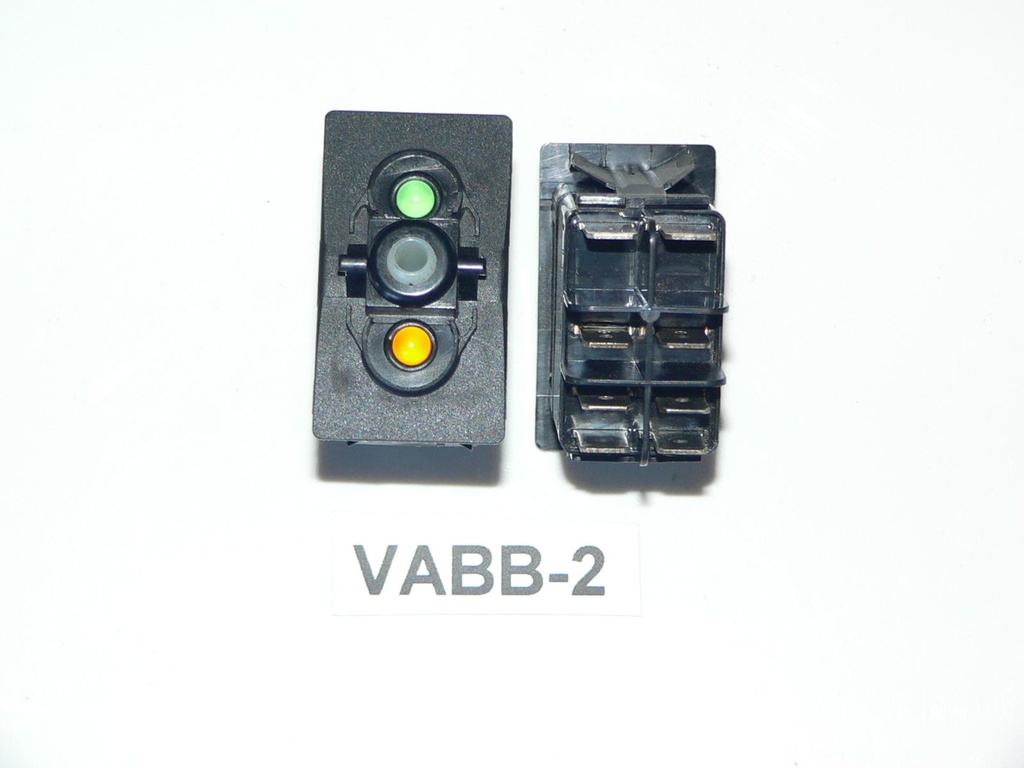

VABB-2 Carling ON/OFF double pole rocker switch w/24 Volt lamps
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009046
Details: Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's VABB-2 ON/OFF DPST TERMINAL GUARDS W/ DOUBLE 24V GREEN AND AMBER INDEPENDENT LAMPS Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) Specifications: FP Marine SKU:ELC-009046 Series: Contura V Function:Latching ON/OFF DPST Lamp: Double 24V Independent Green position 1 (top), Independent Amber position 2 (bottom) *OEM Part #(s): VABB-2 *Sea Ray Part #(s): *Substitution(s): * Part #(s) may vary among boat models/years & are for search/reference only. Carlingswitch ON/OFF double pole V series Contura rocker switch body. ON/OFF configuration The double pole switch is most often used to operate two separate lights, pumps, bilge blowers, etc. 24V green lamp in the 1 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 7- and 8+ 24V amber lamp in the 2 position is independent and can be wired to illuminate at any time. The lamp is wired to terminals 9- and 10+ An independent lamp has both a positive and negative terminal as opposed to the dependent lamps that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position 8 terminal; Terminal #7 is the ground for the green lamp, Terminal #8 is the power input for the green independent lamp. Terminals #2,#5 are power in. The next two terminals #3,#6 are power out. Bottom right terminal #9 is the ground for the amber lamp, The bottom left terminal #10 is the power input for the amber independent lamp. The two sides of the switch are independent of each other. Common for Marine, RV, automotive, and other 24V DC applications.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
