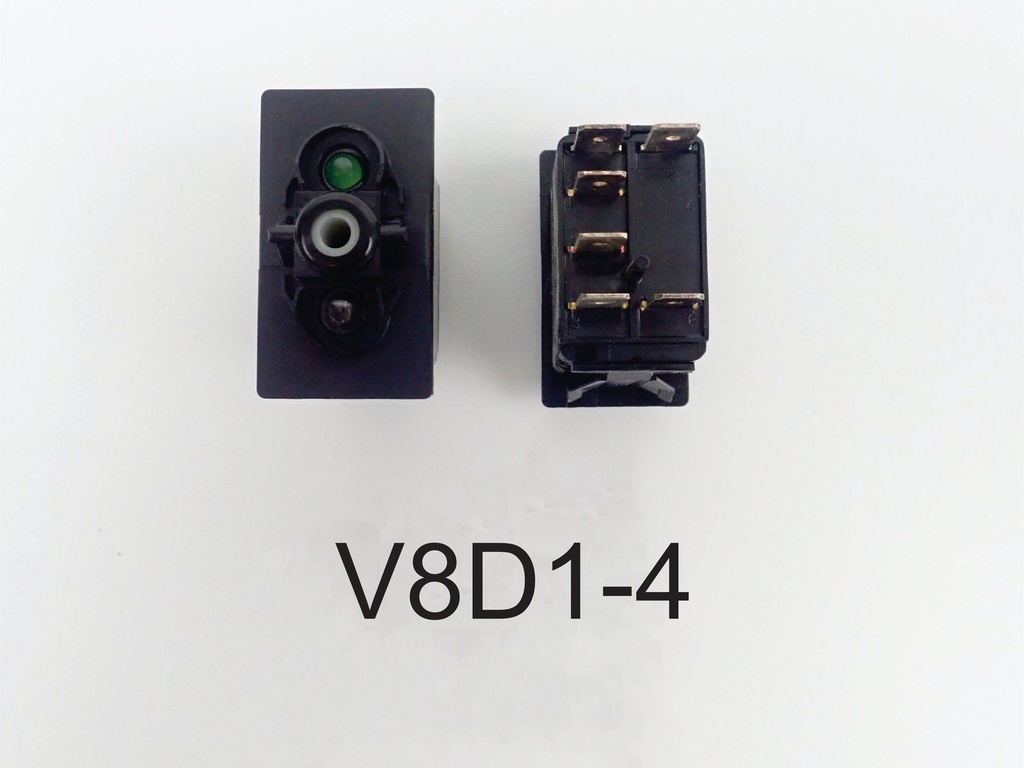

V8D1-4 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear and green lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8D1-4 (ON)/OFF/(ON) SPDT W/ INDEPENDENT CLEAR AND GREEN LAMPS
Specifications:
- FP Marine SKU: ELC-009043
- Series: Contura V
- Function:Latching ON/OFF SPST
- Lamp: Double 12V Green, position 1 (top)
- *OEM Part #(s): V8D1-4
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- 12V GREEN independent lamp in the 1 position. 12V CLEAR independent lamp in the 2 position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 6 terminal; Terminals #7.#8 are for the GREEN lamp, Terminal #7 is the ground and Terminal #8 is the power. Terminal #6 is the power for the CLEAR lamp. the clear lamp shares the ground from terminal #7. Terminal #2 is power in and Terminals (#1) & (#3) are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
V8D1 4 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear and green lamps is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be long lasting and finished to a quality standard. If you want help confirming fitment or wiring, our support team is responsive. You will speak with personable real people with real experience.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8D1-4 (ON)/OFF/(ON) SPDT W/ INDEPENDENT CLEAR AND GREEN LAMPS
Specifications:
- FP Marine SKU: ELC-009043
- Series: Contura V
- Function:Latching ON/OFF SPST
- Lamp: Double 12V Green, position 1 (top)
- *OEM Part #(s): V8D1-4
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- 12V GREEN independent lamp in the 1 position. 12V CLEAR independent lamp in the 2 position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 6 terminal; Terminals #7.#8 are for the GREEN lamp, Terminal #7 is the ground and Terminal #8 is the power. Terminal #6 is the power for the CLEAR lamp. the clear lamp shares the ground from terminal #7. Terminal #2 is power in and Terminals (#1) & (#3) are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
Customers use V8D1 4 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear and green lamps for indicator and control circuits in many marine setups. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is responsive. You will reach easy to work with people first support with real know how who can help confirm the right part.
