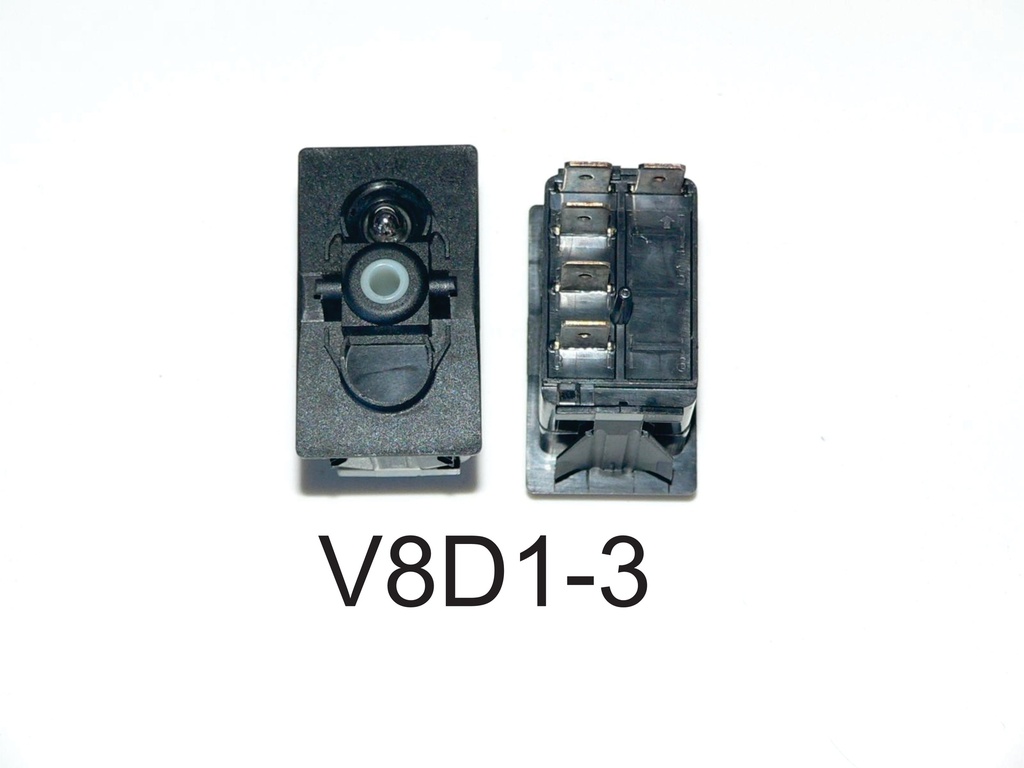

V8D1-3 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear Lamp in Position #1
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8D1-3 (ON)/OFF/(ON) SPDT W/ INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009040
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) SPDT
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V8D1-3
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- 12V clear independent lamp in the 1 position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 5 terminal; Terminals #7 is the ground and Terminal #8 the power for the lamp. Terminal #2 is power in and the other Terminals (#1),(#3) are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
V8D1 3 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear Lamp in Position #1 is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. This is a new option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with easy to work with real people with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8D1-3 (ON)/OFF/(ON) SPDT W/ INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009040
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) SPDT
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V8D1-3
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- 12V clear independent lamp in the 1 position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 5 terminal; Terminals #7 is the ground and Terminal #8 the power for the lamp. Terminal #2 is power in and the other Terminals (#1),(#3) are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
In marine electrical service work, V8D1 3 Carling (ON)/OFF/(ON) momentary single pole rocker switch with independent clear Lamp in Position #1 supports indicator and control circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach friendly people first support with real know how who can help confirm the right part.
