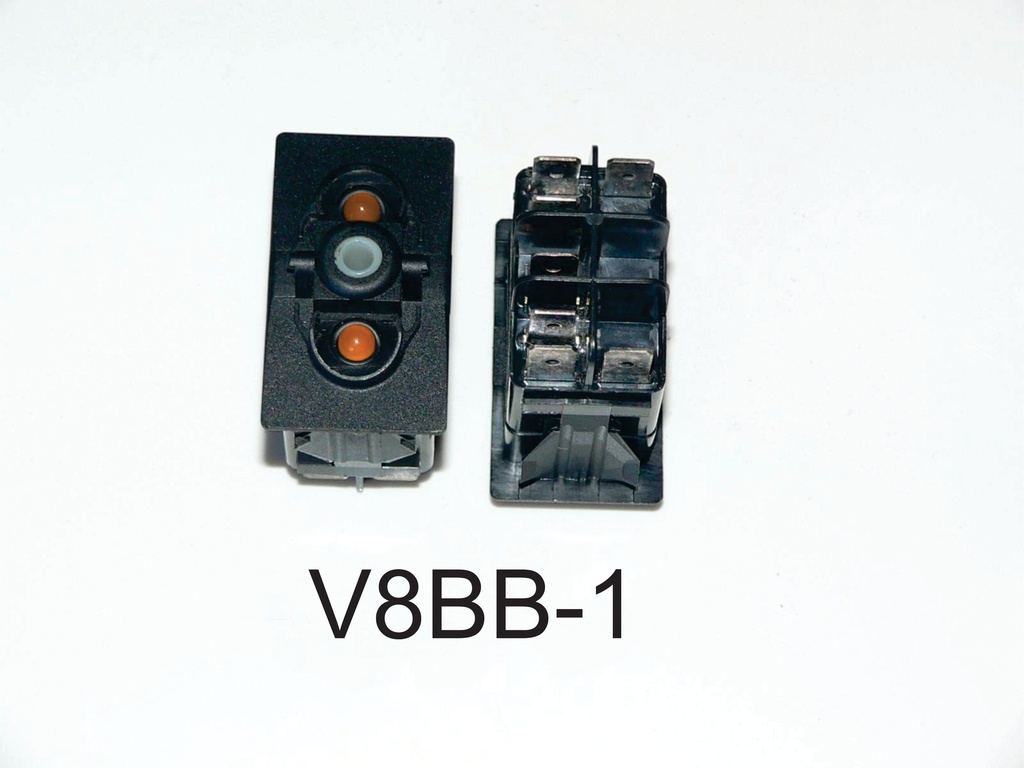

V8BB-1 Carling rocker switch (On)/Off/(On) independent amber lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8BB-1 (ON)/OFF/(ON) DPDT TERMINAL GUARDS W/ INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU:ELC-009039
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Double 12V Amber, position 1 (top), Amber position 2 (bottom)
- *OEM Part #(s): V8BB-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- Two Amber LED lamps. Both the lamp in position 1, and the lamp in 2 position are independent.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 7 terminal; Terminals #7,#9 are the grounds for the lamps. Terminal #8,#10 are power for the independent lamps. Terminal #2 is power in. Terminals #1,#3 are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
If you are replacing a worn switch, V8BB 1 Carling rocker switch (On)/Off/(On) independent amber lamps is a reliable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be built to last and finished to a premium standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with friendly human support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V8BB-1 (ON)/OFF/(ON) DPDT TERMINAL GUARDS W/ INDEPENDENT AMBER LAMPS
Specifications:
- FP Marine SKU:ELC-009039
- Series: Contura V
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Double 12V Amber, position 1 (top), Amber position 2 (bottom)
- *OEM Part #(s): V8BB-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, single pole double throw. momentary-on/off/momentary-on
- Two Amber LED lamps. Both the lamp in position 1, and the lamp in 2 position are independent.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 7 terminal; Terminals #7,#9 are the grounds for the lamps. Terminal #8,#10 are power for the independent lamps. Terminal #2 is power in. Terminals #1,#3 are power out. The switch is off when the actuator is in the middle position.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
V8BB 1 Carling rocker switch (On)/Off/(On) independent amber lamps is commonly used for indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach friendly real people with real experience who can help confirm the right part.
Internal Reference:
ELC-009039
