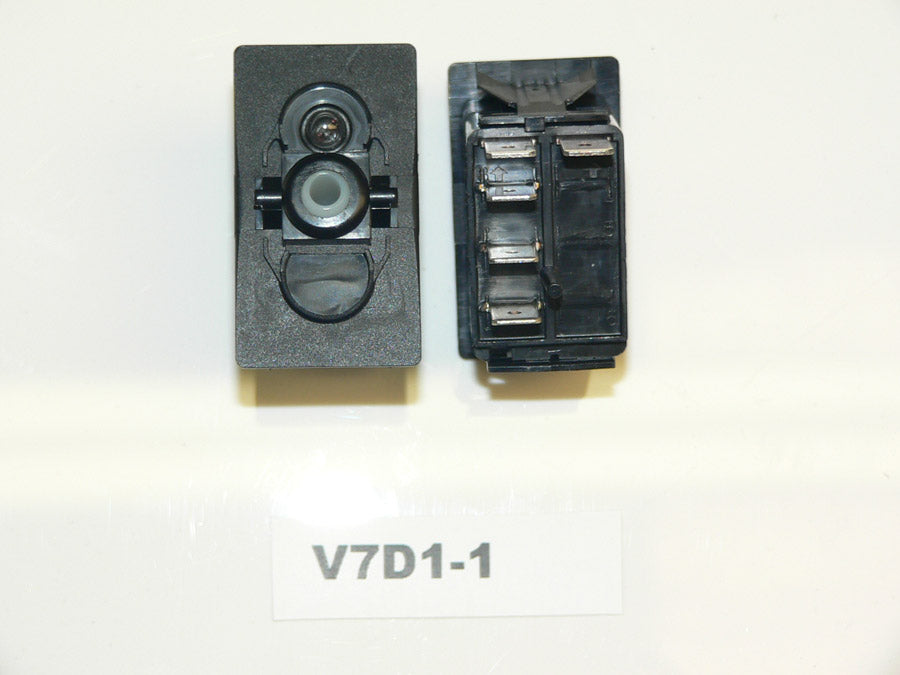

V7D1-1 Carling (ON)/OFF/ON single pole rocker switch with 1 independent lamp Maverick Hewes horn/accessory
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Switch - Standard
Application: boat electrical switching and control
SKU: ELC-009038
Details: Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's V7D1-1 (ON)/OFF/ON SPDT W/ INDEPENDENT 12V CLEAR LAMP Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) Specifications: FP Marine SKU:ELC-009038 Series: Contura V Function: Momentary (ON)/OFF/ON SPDT Lamp: Single 12V Clear, position 1 (top) *OEM Part #(s): V7D1-1 *Sea Ray Part #(s): *Substitution(s): Carlingswitch (ON)/OFF/ON single pole V series Contura rocker switch body. This is a Switch Body Only. Actuators are sold separately. (ON)/OFF/ON configuration, single pole double throw. momentary-on/off/on 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position. 5 terminal; Terminal #7 is the ground and Terminal #8 is the power for the lamps. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. Terminal #2 is power "in" and Terminals #1,(#3) are power out for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit Terminal (#3), it is a momentary action. Pushing the bottom of the actuator will activate the other circuit. Both circuits can not be activated at the same time. Common for Marine, RV, automotive, and other 12V DC applications. Maverick Hewes boat company uses this switch as an accessory switch in conjunction with the horn switch.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
