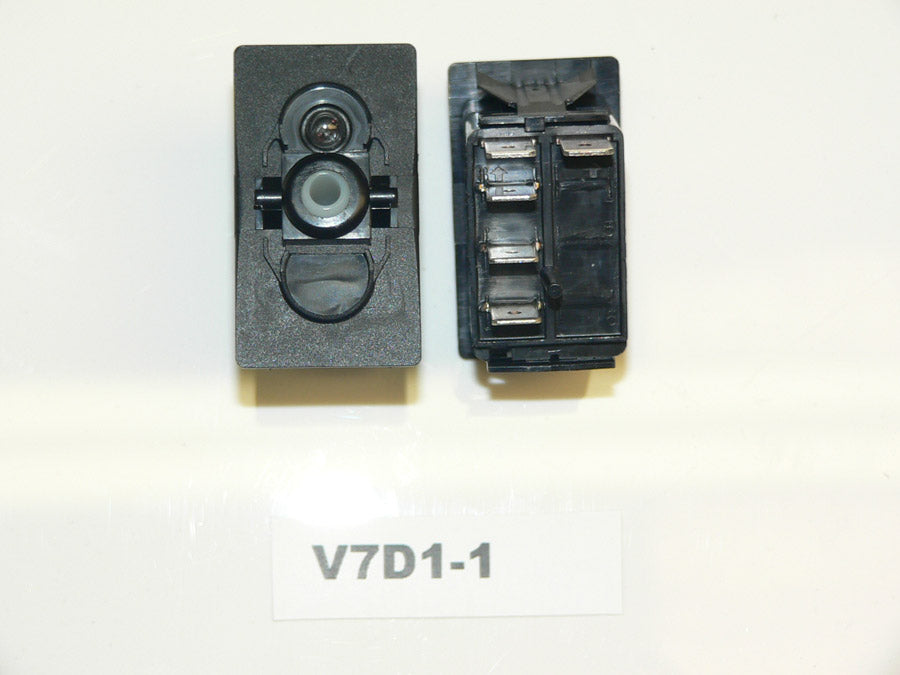

V7D1-1 (ON)/OFF/ON SPDT W/ INDEPENDENT 12V CLEAR LAMP

Specifications:

• FP Marine SKU:ELC-009038
• Series: Contura V

• Function: Momentary (ON)/OFF/ON SPDT

• Lamp: Single 12V Clear, position 1 (top)
• *OEM Part #(s): V7D1-1
• *Sea Ray Part #(s):
• *Substitution(s):

• This is a Switch Body Only. Actuators are sold separately.
• (ON)/OFF/ON configuration, single pole double throw. momentary-on/off/on

• 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.

• 5 terminal; Terminal #7 is the ground and Terminal #8 is the power for the lamps. You can jump the power to the lamp from another terminal on the switch so it illuminates always, or when either or both of the accessories are activated..your choice. Terminal #2 is power "in" and Terminals #1,(#3) are power out for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit Terminal (#3), it is a momentary action. Pushing the bottom of the actuator will activate the other circuit. Both circuits can not be activated at the same time.

• Common for Marine, RV, automotive, and other 12V DC applications. Maverick Hewes boat company uses this switch as an accessory switch in conjunction with the horn switch.
