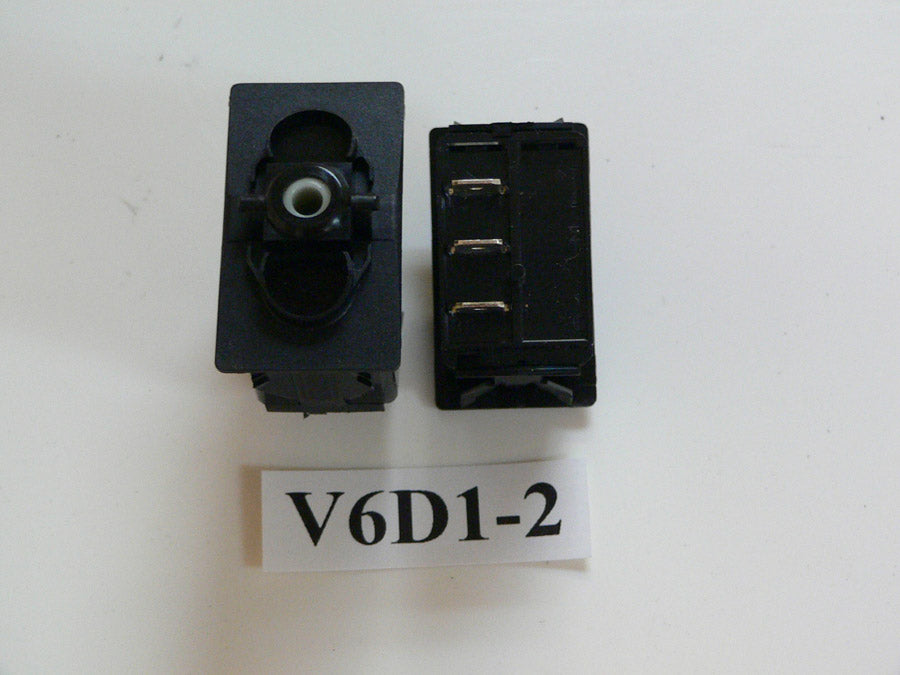

V6D1-2 Carling ON/OFF/ON single pole rocker switch no lamp
PNL-BW180VT-stg
- Carling Part# V6D1S00B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, single pole double throw
- No lamps
- 3 terminal; The middle terminal is power "in" and the other two terminals are power "out" for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit and illuminates one of the lights. Pushing the bottom of the actuator will activate the other circuit and illuminate the other light. Both circuits can not be activated at the same time, that requires a double pole switch like a VJ series.
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Product Overview
V6D1 2 Carling ON/OFF/ON single pole rocker switch no lamp is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. It is a professional marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with friendly people first support with real know how.
Specifications and Details
Web Listing Details
- Carling Part# V6D1S00B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, single pole double throw
- No lamps
- 3 terminal; The middle terminal is power "in" and the other two terminals are power "out" for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit and illuminates one of the lights. Pushing the bottom of the actuator will activate the other circuit and illuminate the other light. Both circuits can not be activated at the same time, that requires a double pole switch like a VJ series.
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Fitment and Ordering Support
Customers use V6D1 2 Carling ON/OFF/ON single pole rocker switch no lamp for indicator and control circuits in many marine setups. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is responsive. You will reach personable people first support with real experience who can help confirm the right part.
