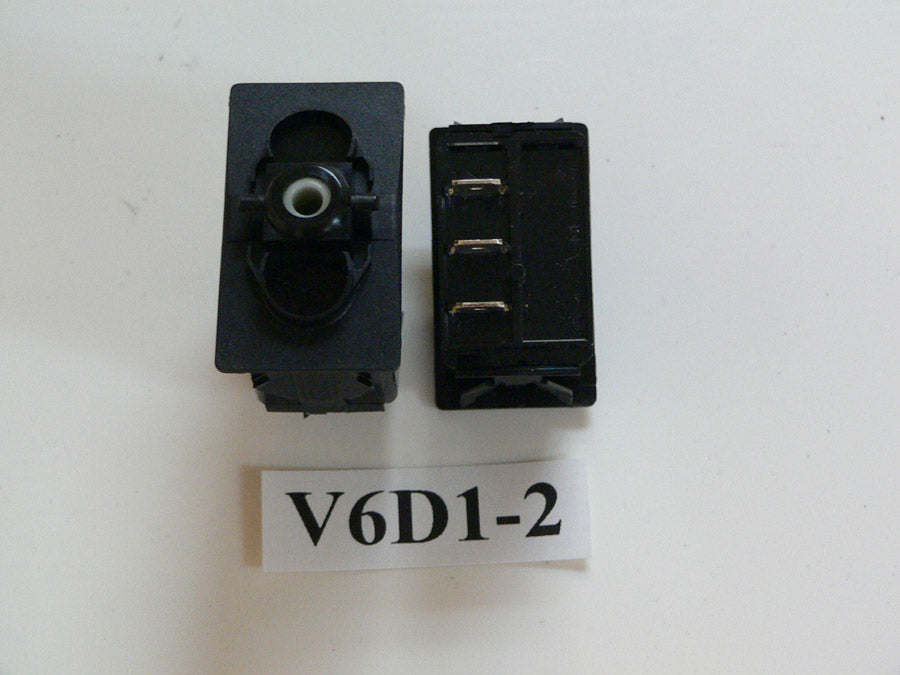

V6D1-2 Carling ON/OFF/ON single pole rocker switch no lamp
SUR-000009-1791788
V6D1-2
Carlingswitch ON/OFF/ON single pole V series Contura rocker switch body.
- This is a Switch Body Only. Actuators are sold separately.
- ON/OFF/ON configuration, single pole double throw
- No lamps
- 3 terminal; The middle terminal is power "in" and the other two terminals are power "out" for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit and illuminates one of the lights. Pushing the bottom of the actuator will activate the other circuit and illuminate the other light. Both circuits can not be activated at the same time, that requires a double pole switch like a VJ series.
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
- Part# V6D1-2
- Sea Ray part#
- Choose from a variety of actuators with different lenses. Actuator part numbers begin with VV.
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
