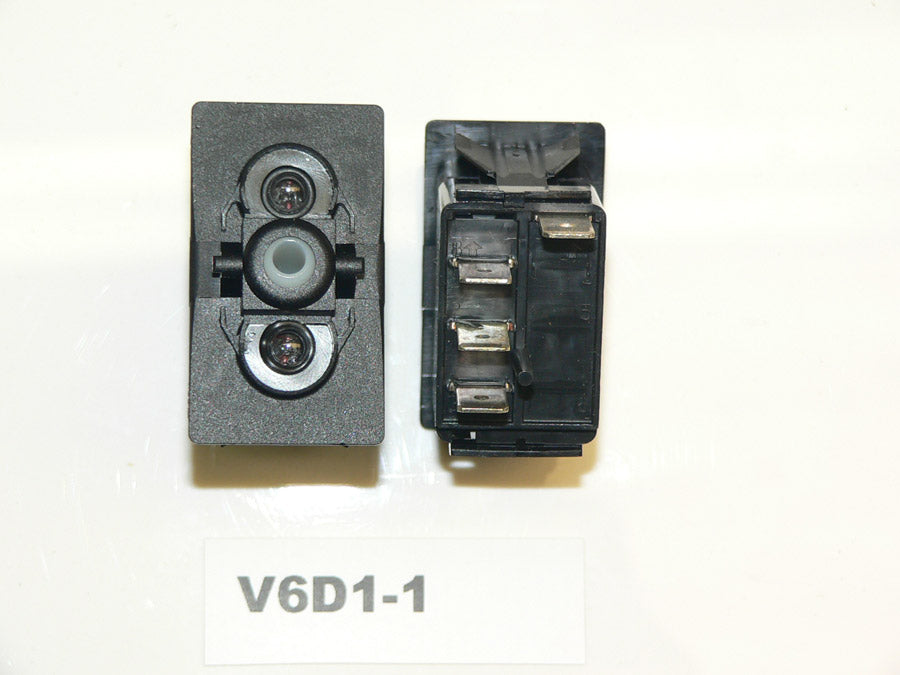

V6D1-1 Carling ON/OFF/ON single pole rocker switch DUAL LAMP for Maverick/Hewes
PNL-BW180VT-stg
- Carling Part# V6D1D66B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, double throw
- Dual 12V lamps common for accessories like livewell pumps (on and auto timer), some lighting, etc.
- 4 terminal; The top right is the ground for the lamp. The middle terminal is power "in" and the other two terminals are power "out" for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit and illuminates one of the lights. Pushing the bottom of the actuator will activate the other circuit and illuminate the other light. Both circuits can not be activated at the same time, that requires a double pole switch like a VJ series.
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
. This switch would use an actuator with two lenses.For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Product Overview
If you are replacing a worn switch, V6D1 1 Carling ON/OFF/ON single pole rocker switch DUAL LAMP for Maverick/Hewes is a trusted option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is helpful. You will speak with easy to work with real people with real experience.
Specifications and Details
Web Listing Details
V6D1-1- Carling Part# V6D1D66B-00000-000
This is a Switch Body Only. Actuators are sold separately. - ON/OFF/ON configuration, double throw
- Dual 12V lamps common for accessories like livewell pumps (on and auto timer), some lighting, etc.
- 4 terminal; The top right is the ground for the lamp. The middle terminal is power "in" and the other two terminals are power "out" for the two different circuits. The switch is "off" when the actuator is in the middle position. Pushing the top of the actuator activates one circuit and illuminates one of the lights. Pushing the bottom of the actuator will activate the other circuit and illuminate the other light. Both circuits can not be activated at the same time, that requires a double pole switch like a VJ series.
- Common for Marine, RV, automotive, and other 12V DC applications. Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
. This switch would use an actuator with two lenses.For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Fitment and Ordering Support
In marine electrical service work, V6D1 1 Carling ON/OFF/ON single pole rocker switch DUAL LAMP for Maverick/Hewes supports indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach friendly human support with real hands on expertise who can help confirm the right part.
