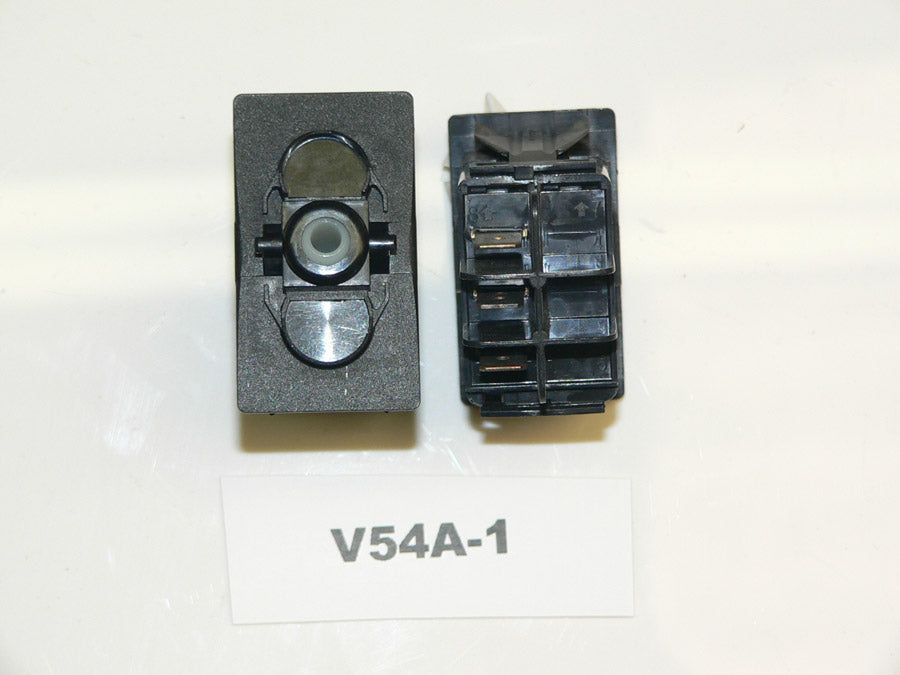

V54A-1Carling ON/(ON) momentary single pole rocker switch no lamp
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V54A-1 ON/(ON) SPST TERMINAL GUARDS W/ NO LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009035
- Series: Contura V
- Function: Momentary ON/(ON) SPST
- Lamp: N/A
- *OEM Part #(s): V54A-1
- *Sea Ray Part #(s):
- *Substitution(s):
Carlingswitch ON/(ON) single pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/(ON) configuration. Normally ON, momentary (ON) when actuated.
- 3 terminal; Terminal #2 is power in and Terminal (#1),#3 are power out. This switch feeds power to one circuit normally and then feeds momentary power to the second circuit when the actuator is depressed. The actuator is spring loaded to return back to the normal ON position when released.
- Part# V54A-1 Sea Ray part #719849 battery voltage test
