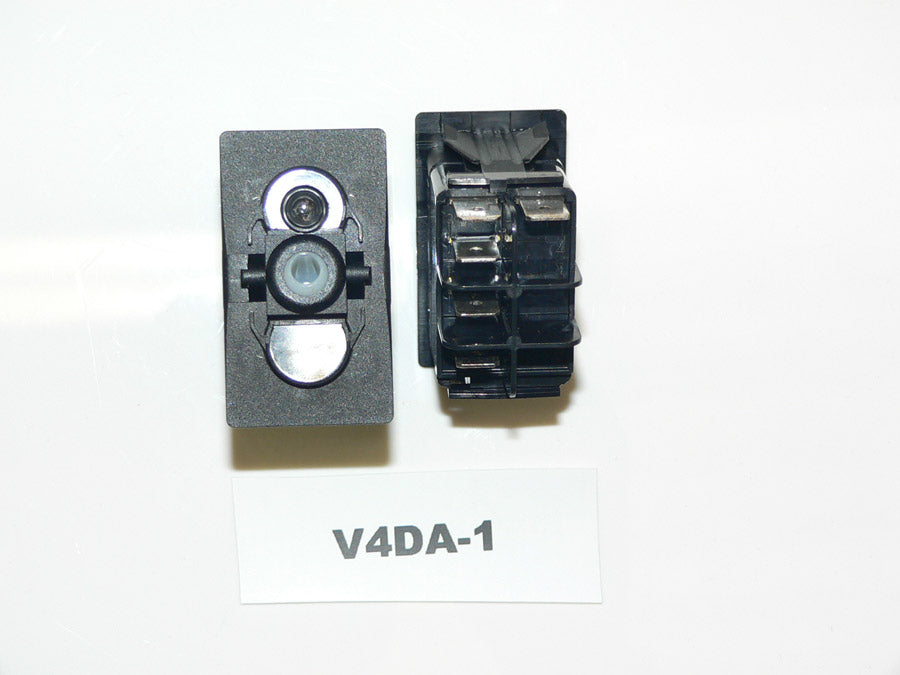

V4DA-1Carling ON/ON single pole rocker switch w/independent clear lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V4DA-1 ON/ON SPST TERMINAL GUARDS W/ INDEPENDENT 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009034
- Series: Contura V
- Function:Latching ON/ON SPST
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V4DA-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.
- 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 5 terminal; Terminal #7 is the ground and Terminal #8 is the power. Terminal #2 is power in and Terminal #3 is power out.
- This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
- Part# V4DA-1 Sea Ray part # 648105
Product Overview
V4DA 1Carling ON/ON single pole rocker switch w/independent clear lamp is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our customer service is helpful. You will speak with easy to work with people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V4DA-1 ON/ON SPST TERMINAL GUARDS W/ INDEPENDENT 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009034
- Series: Contura V
- Function:Latching ON/ON SPST
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V4DA-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.
- 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- 5 terminal; Terminal #7 is the ground and Terminal #8 is the power. Terminal #2 is power in and Terminal #3 is power out.
- This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
- Part# V4DA-1 Sea Ray part # 648105
Fitment and Ordering Support
Customers use V4DA 1Carling ON/ON single pole rocker switch w/independent clear lamp for indicator and control circuits in many marine setups. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach friendly human support with real experience who can help confirm the right part.
Internal Reference:
ELC-009034
