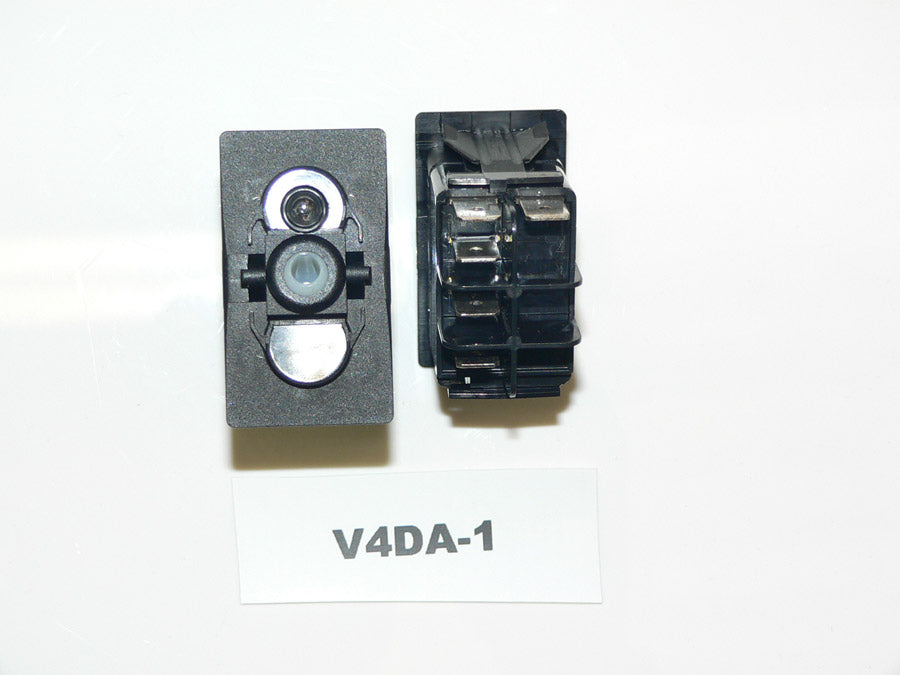

V4DA-1Carling ON/ON single pole rocker switch w/independent clear lamp

https://www.fpmarine.com/web/image/product.template/28739/image_1920?unique=e05e9e6

SUR-000009-1791788

Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

V4DA-1 ON/ON SPST TERMINAL GUARDS W/ INDEPENDENT 12V CLEAR LAMP

Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.


Specifications:

  • FP Marine SKU:ELC-009034
  • Series: Contura V
  • Function:Latching ON/ON SPST
  • Lamp: Single Independent 12V Clear, position 1 (top)
  • *OEM Part #(s): V4DA-1
    • *Sea Ray Part #(s):
  • *Substitution(s):

Carlingswitch ON/ON single pole V series Contura rocker switch body.

  • This is a Switch Body Only. Actuators are sold separately.
  • ON/ON configuration.
  • 12V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
  • 5 terminal; Terminal #7 is the ground and Terminal #8 is the power. Terminal #2 is power in and Terminal #3 is power out.
  • This type of switch is often used in conjunction with another dash switch for cockpit lights. Another common use is for windshield wiper motors that require constant power to one wire for the "park" function.
  • Part# V4DA-1 Sea Ray part # 648105

21.26 21.26 USD 21.26

21.26

Not Available For Sale

This combination does not exist.


Internal Reference: ELC-009034
