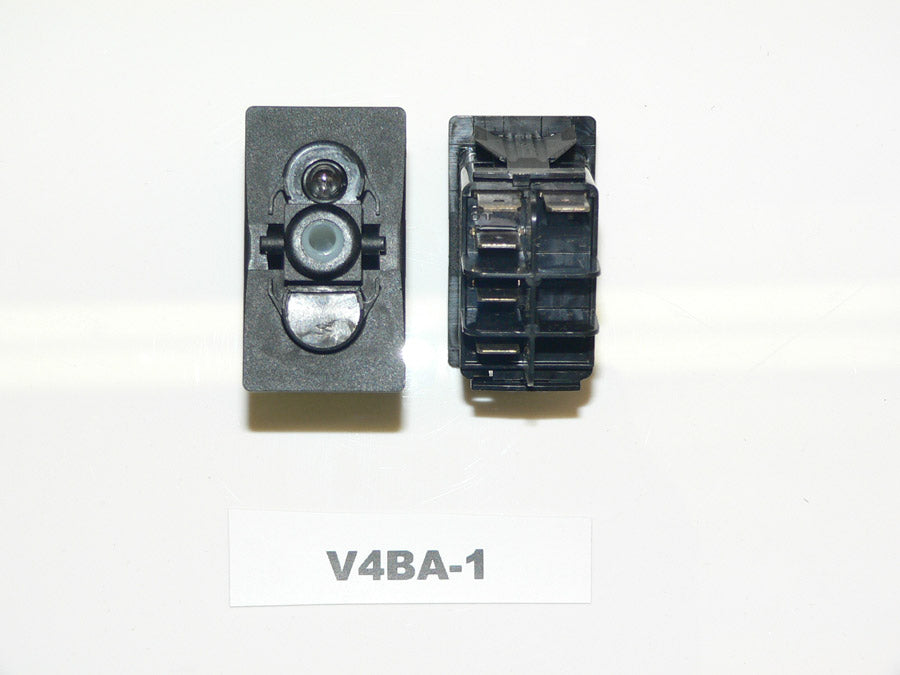

V4BA-1 Carling ON/ON single pole rocker switch, Independent 24V lamp.
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V4BA-1 ON/ON SPST TERMINAL GUARDS W/ 24V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009032
- Series: Contura V
- Function:Latching ON/ON SPST
- Lamp: Single 24V Clear, position 1 (top)
- *OEM Part #(s): V4BA-1
- *Sea Ray Part #(s): # 670562
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.
- 5 terminal; Terminal #8 is positive and Terminal #7 is ground for the lamp. Terminal #2 is power in and Terminal #1,#3 are power out.
- 24V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- Part# V4BA-1 Sea Ray part
Product Overview
V4BA 1 Carling ON/ON single pole rocker switch, Independent 24V lamp. is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a professional marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is supportive. You will speak with personable people first support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V4BA-1 ON/ON SPST TERMINAL GUARDS W/ 24V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009032
- Series: Contura V
- Function:Latching ON/ON SPST
- Lamp: Single 24V Clear, position 1 (top)
- *OEM Part #(s): V4BA-1
- *Sea Ray Part #(s): # 670562
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/ON configuration.
- 5 terminal; Terminal #8 is positive and Terminal #7 is ground for the lamp. Terminal #2 is power in and Terminal #1,#3 are power out.
- 24V clear independent lamp in the top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- Part# V4BA-1 Sea Ray part
Fitment and Ordering Support
Customers use V4BA 1 Carling ON/ON single pole rocker switch, Independent 24V lamp. for indicator and control circuits in many marine setups. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach easy to work with human support with real experience who can help confirm the right part.
Internal Reference:
ELC-009032
