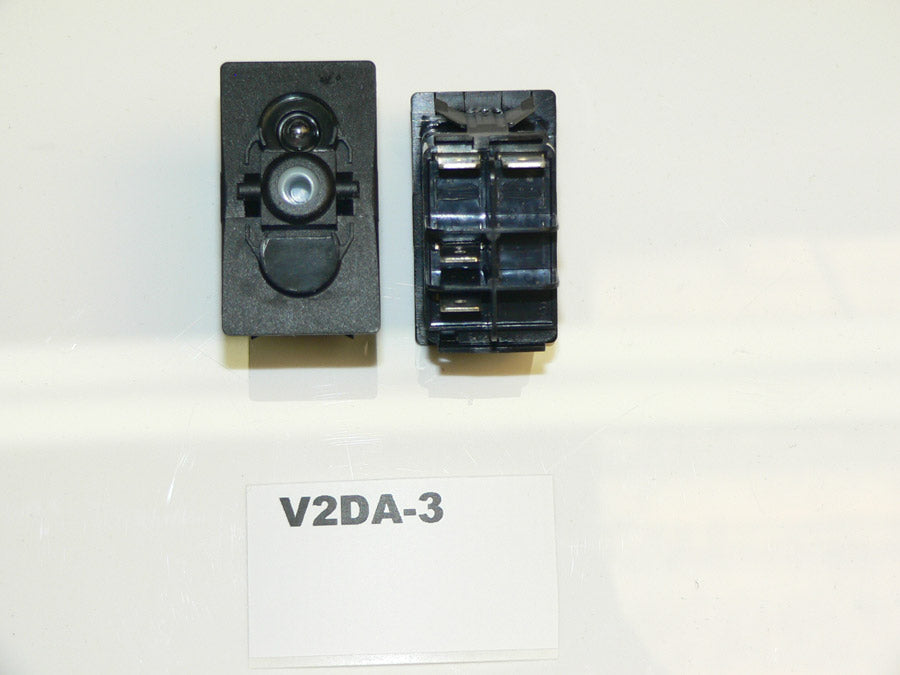

V2DA-3 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2DA-3 (ON)/OFF SPST TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-
- Series: Contura V
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V2DA-3
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- 12V independent clear lamp in the 1 position.
-
-
An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 is ground for the lamp, Terminal #2 is power in and Terminal (#3) is Momentary power out.
- Part# V2DA-3 Sea Ray part # 799304 -or 0799304 Blowers. The parts manual for 2001 340DA incorrectly calls for part # 1374396 which is a 24v switch.
- CONFIRM 1st - Please check your existing switch carefully for the number of terminals, the number of lamps, and the color of the lamps. (you will have to remove your actuator to see the color of the lamp) We have found the Sea Ray part # cross references to a few different Carling #'s
-
An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc. Common for Marine, RV, automotive, and other 12 volt DC applications.
- Choose from a variety of actuators with different lenses. Actuator part numbers begin with VV.
http://www.searay-parts.com/Switch-Actuator-s/387.htm
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Product Overview
If you are replacing a worn switch, V2DA 3 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V lamp is a trusted option that helps you finish the job without extra hassle. It is commonly used for ignition and starting circuits. It is a professional marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with friendly human support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2DA-3 (ON)/OFF SPST TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-
- Series: Contura V
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V2DA-3
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- 12V independent clear lamp in the 1 position.
-
-
An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 is ground for the lamp, Terminal #2 is power in and Terminal (#3) is Momentary power out.
- Part# V2DA-3 Sea Ray part # 799304 -or 0799304 Blowers. The parts manual for 2001 340DA incorrectly calls for part # 1374396 which is a 24v switch.
- CONFIRM 1st - Please check your existing switch carefully for the number of terminals, the number of lamps, and the color of the lamps. (you will have to remove your actuator to see the color of the lamp) We have found the Sea Ray part # cross references to a few different Carling #'s
-
An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc. Common for Marine, RV, automotive, and other 12 volt DC applications.
- Choose from a variety of actuators with different lenses. Actuator part numbers begin with VV.
http://www.searay-parts.com/Switch-Actuator-s/387.htm
For instructional videos, please visit our YouTube channel:
www.youtube.com/fpmarine
Fitment and Ordering Support
Customers use V2DA 3 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V lamp for ignition and starting circuits in many marine setups. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach friendly real people with real experience who can help confirm the right part.
