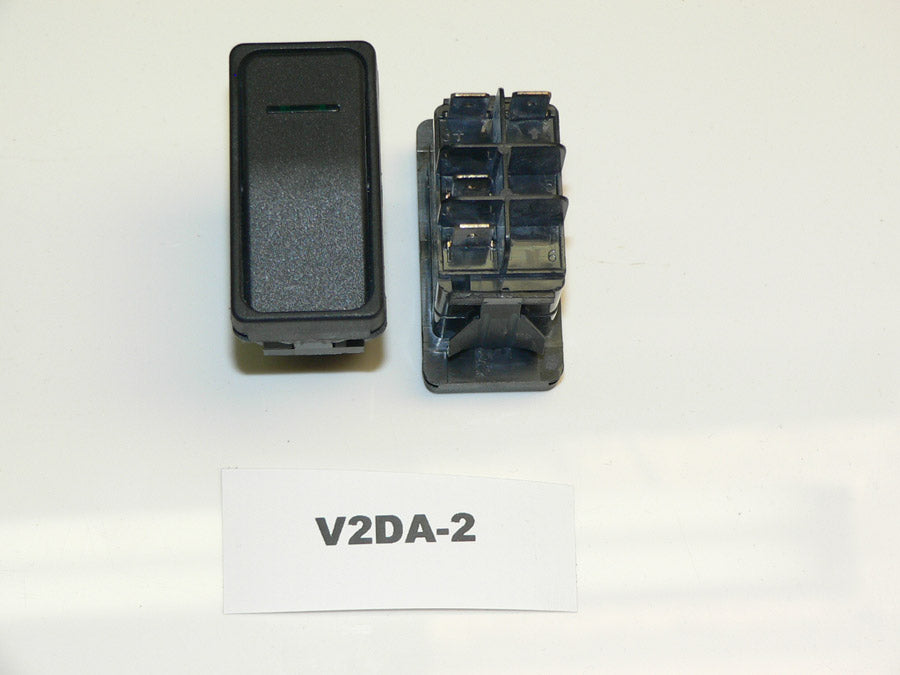

V2DA-2 Carling (ON)/OFF Momentary single pole rocker switch Raised bracket w/actuator independent green lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2DA-2 (ON)/OFF SPST RASIED BRACKET W/ INDEPENDENT GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009028
- Series: Contura V
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 12V Green, position 1 (top)
- *OEM Part #(s): V2DA-2
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- Independent green LED lamp in #1 position (top)
- Raised Bracket with Contura X actuator prevents accidental activation of the switch.
-
-
4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp. Terminal #2 is power in and Terminal (#3) is Momentary power out.
-
4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp. Terminal #2 is power in and Terminal (#3) is Momentary power out.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc.Typically Sea Ray uses this type of switch as "Battery Energize" switches on the main distribution panel in the cabin. The momentary action activates a solenoid and the green light goes on. When the switch is pressed again, the solenoid is de-activated and the green light goes out.
- Also makes a great "START" switch with it's guarded housing.
- Part# V2DA-2 Sea Ray part#
Product Overview
If you are replacing a worn switch, V2DA 2 Carling (ON)/OFF Momentary single pole rocker switch Raised bracket w/actuator independent green lamp is a trusted option that helps you finish the job without extra hassle. It is commonly used for ignition and starting circuits. It is a professional marine replacement part. It is built to be built to last and finished to a quality standard. If you want help confirming fitment or wiring, our service team is helpful. You will speak with friendly human support with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2DA-2 (ON)/OFF SPST RASIED BRACKET W/ INDEPENDENT GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009028
- Series: Contura V
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 12V Green, position 1 (top)
- *OEM Part #(s): V2DA-2
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- Independent green LED lamp in #1 position (top)
- Raised Bracket with Contura X actuator prevents accidental activation of the switch.
-
-
4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp. Terminal #2 is power in and Terminal (#3) is Momentary power out.
-
4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp. Terminal #2 is power in and Terminal (#3) is Momentary power out.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position.
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc.Typically Sea Ray uses this type of switch as "Battery Energize" switches on the main distribution panel in the cabin. The momentary action activates a solenoid and the green light goes on. When the switch is pressed again, the solenoid is de-activated and the green light goes out.
- Also makes a great "START" switch with it's guarded housing.
- Part# V2DA-2 Sea Ray part#
Fitment and Ordering Support
In marine electrical service work, V2DA 2 Carling (ON)/OFF Momentary single pole rocker switch Raised bracket w/actuator independent green lamp supports ignition and starting circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is responsive. You will reach easy to work with real people with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-009028
