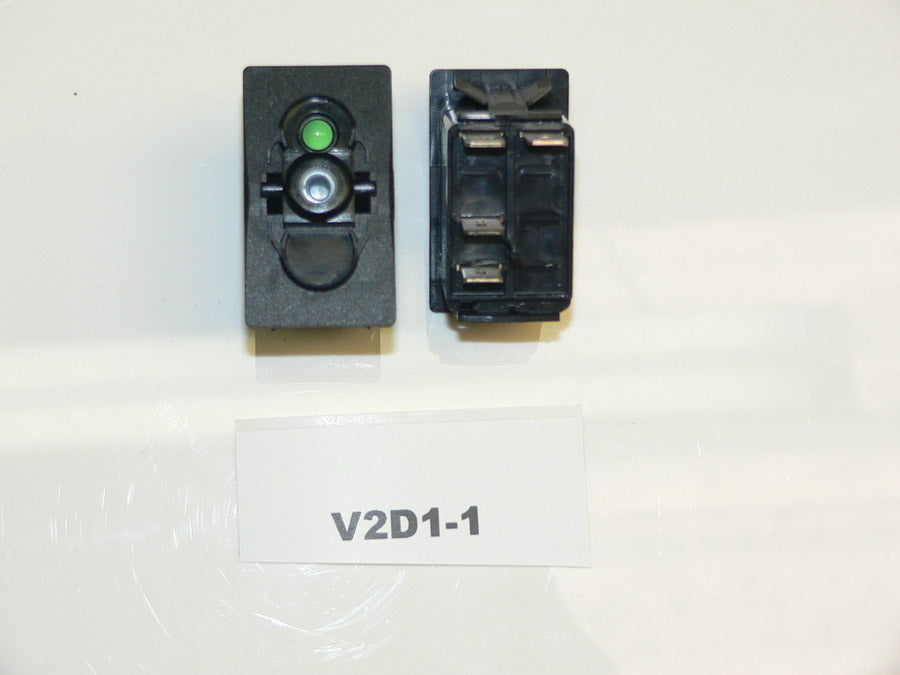

V2D1-1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V Green LED lamp in position #1
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2D1-1 (ON)/OFF SPST W/ INDEPENDENT 12V GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009024
- Series: V-Series
- Function: Momentary (ON)/OFF SPST
- Lamp: Single Independent 12V Green LED, position 1 (top)
- *OEM Part #(s): V2D1-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- 12V independent Green LED lamp in the 1 position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 is ground for the lamp, Terminal #2 is power in and Terminal (#3) Momentary power out.
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc.
- Part# V2D1-1 Replaces V2DA Replaces Sea Ray BBG part# 1260256
Product Overview
If you are replacing a worn switch, V2D1 1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V Green LED lamp in position #1 is a reliable option that helps you finish the job without extra hassle. It is commonly used for ignition and starting circuits. This is a latest option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be long lasting and finished to a high quality standard. If you want help confirming fitment or wiring, our support team is responsive. You will speak with personable people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2D1-1 (ON)/OFF SPST W/ INDEPENDENT 12V GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009024
- Series: V-Series
- Function: Momentary (ON)/OFF SPST
- Lamp: Single Independent 12V Green LED, position 1 (top)
- *OEM Part #(s): V2D1-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- 12V independent Green LED lamp in the 1 position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 is ground for the lamp, Terminal #2 is power in and Terminal (#3) Momentary power out.
- This type of switch with momentary action is used for horns, windshield washers, solenoid activation, starting circuits, etc.
- Part# V2D1-1 Replaces V2DA Replaces Sea Ray BBG part# 1260256
Fitment and Ordering Support
In marine electrical service work, V2D1 1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 12V Green LED lamp in position #1 supports ignition and starting circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach friendly real people with real hands on expertise who can help confirm the right part.
