V2BA-1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 24V Green LED lamp in position #1
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2BA-1 (ON)/OFF SPST TERMINAL GUARDS W/ INDEPENDENT 24V GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009023
- Series: V-Series
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 24V Green LED, position 1 (top)
- *OEM Part #(s): V2BA-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF

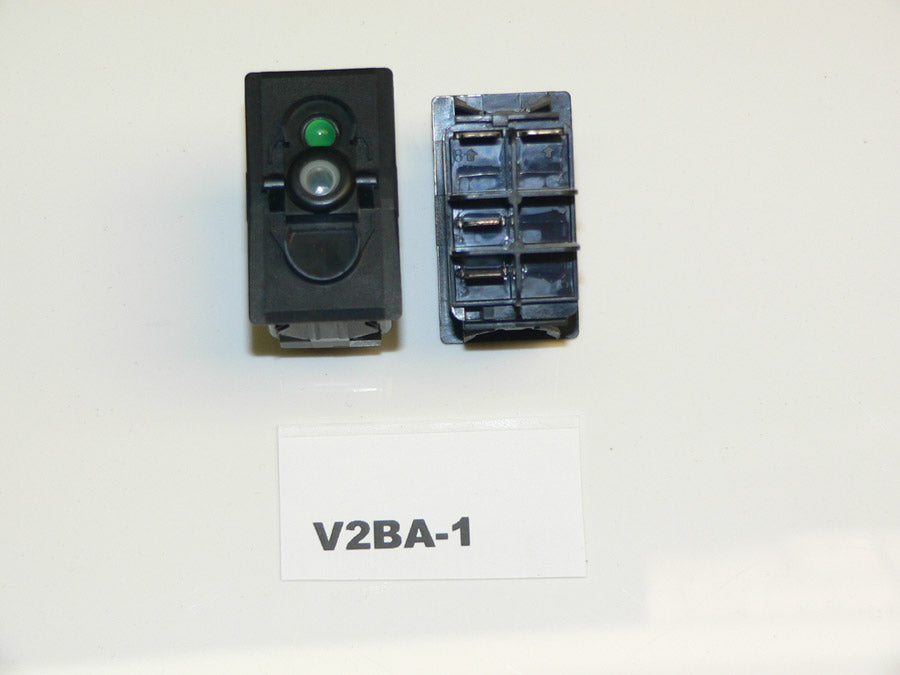

- 24V independent Green LED lamp in the 2 position. The photo shows the lamp on top, but it was photographed upside down.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal (#3) Momentary is power out.
Product Overview
V2BA 1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 24V Green LED lamp in position #1 is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a new option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be long lasting and finished to a quality standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with personable human support with real experience.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2BA-1 (ON)/OFF SPST TERMINAL GUARDS W/ INDEPENDENT 24V GREEN LED LAMP
Specifications:
- FP Marine SKU: ELC-009023
- Series: V-Series
- Function: Momentary (ON)/OFF SPST
- Lamp: Single 24V Green LED, position 1 (top)
- *OEM Part #(s): V2BA-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF configuration. Momentary ON, normally OFF
- 24V independent Green LED lamp in the 2 position. The photo shows the lamp on top, but it was photographed upside down.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal (#3) Momentary is power out.
Fitment and Ordering Support
V2BA 1 Carling (ON)/OFF Momentary single pole rocker switch w/independent 24V Green LED lamp in position #1 is commonly used for indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is responsive. You will reach easy to work with human support with real experience who can help confirm the right part.
