V2BA-2 Carling (ON)/OFF Momentary single pole rocker switch w/independent 24V lamp in position #1
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V2BA-2 (ON)/OFF SPST TERMINAL GUARDS W/ 24V CLEAR LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU: ELC-009022
- Series: V-Series
- Function: Momentary (ON)/OFF SPST
- Lamp: Single Independent 24V Clear, position 1 (top)
- *OEM Part #(s): V2BA-2
- *Sea Ray Part #(s):
- *Substitution(s):
Carlingswitch (ON)/OFF single pole V series Contura rocker switch body.
This is a Switch Body Only. Actuators are sold separately.
This is a Switch Body Only. Actuators are sold separately.
- (ON)/OFF configuration. Momentary V2BA-2ON, normally OFF

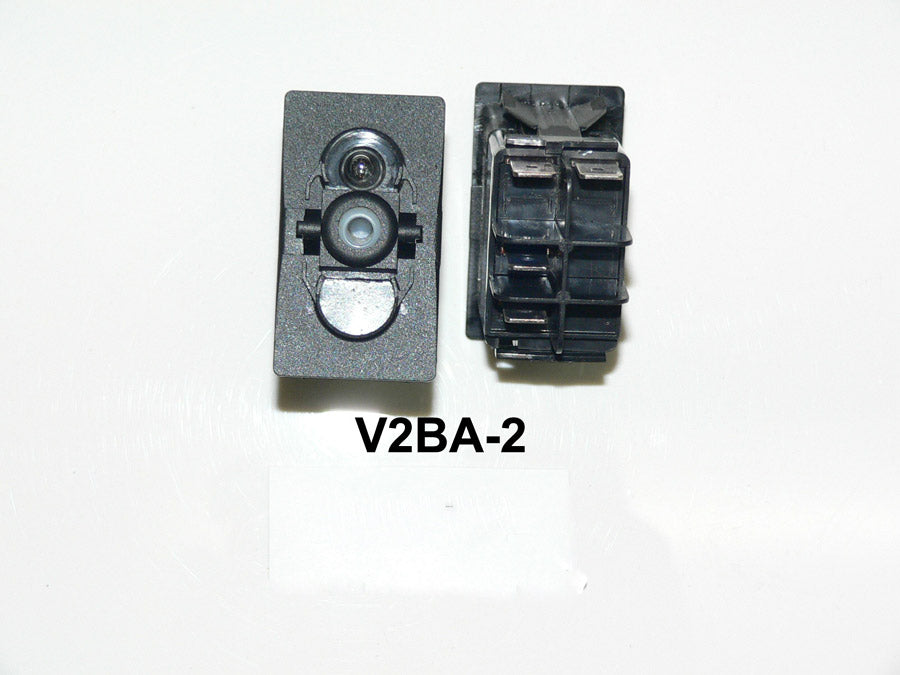

- 24V independent lamp in the 1 position. The photo shows the lamp on top
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position

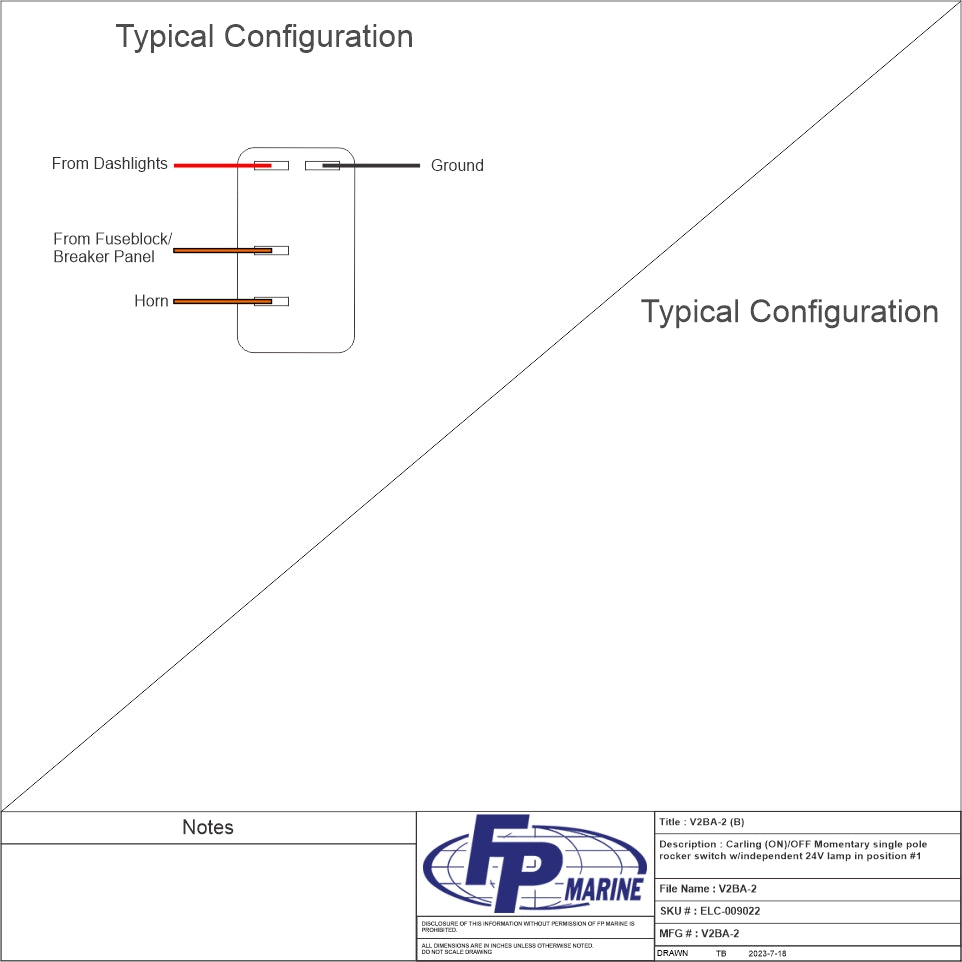

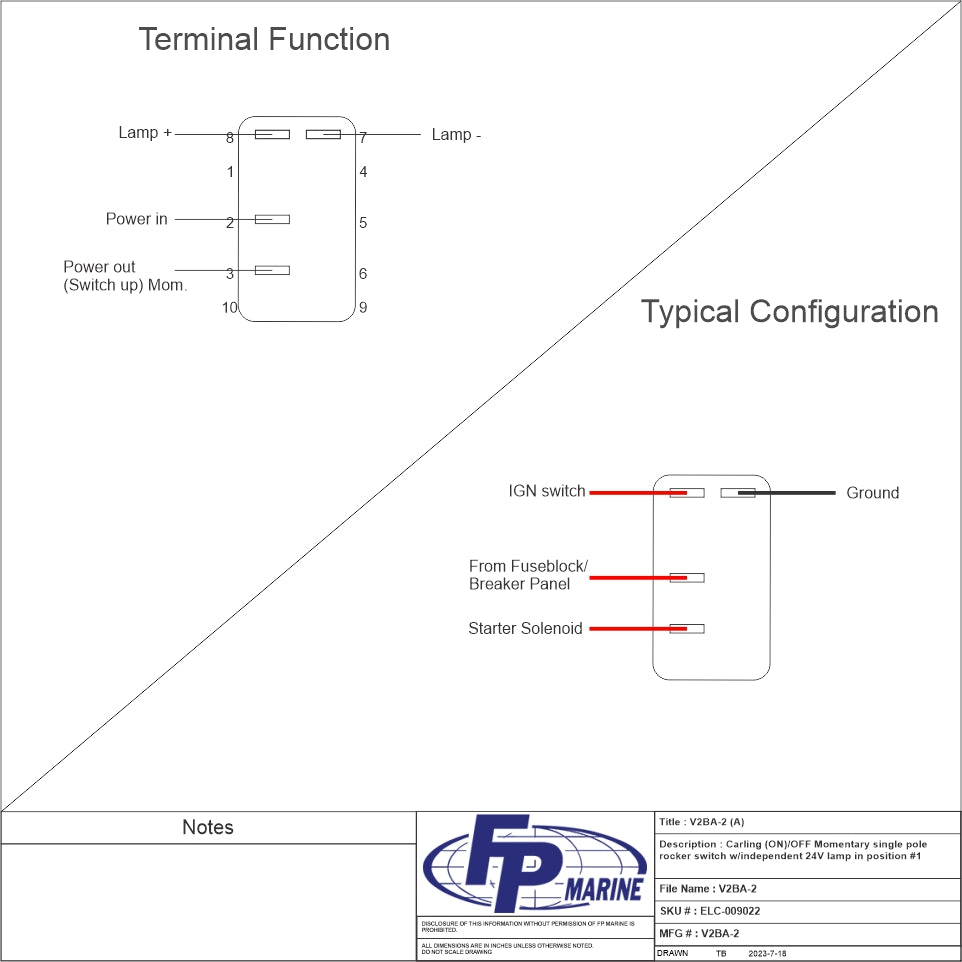

- 4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal (#3) Momentary power out.
- Sea Ray part# 971143
