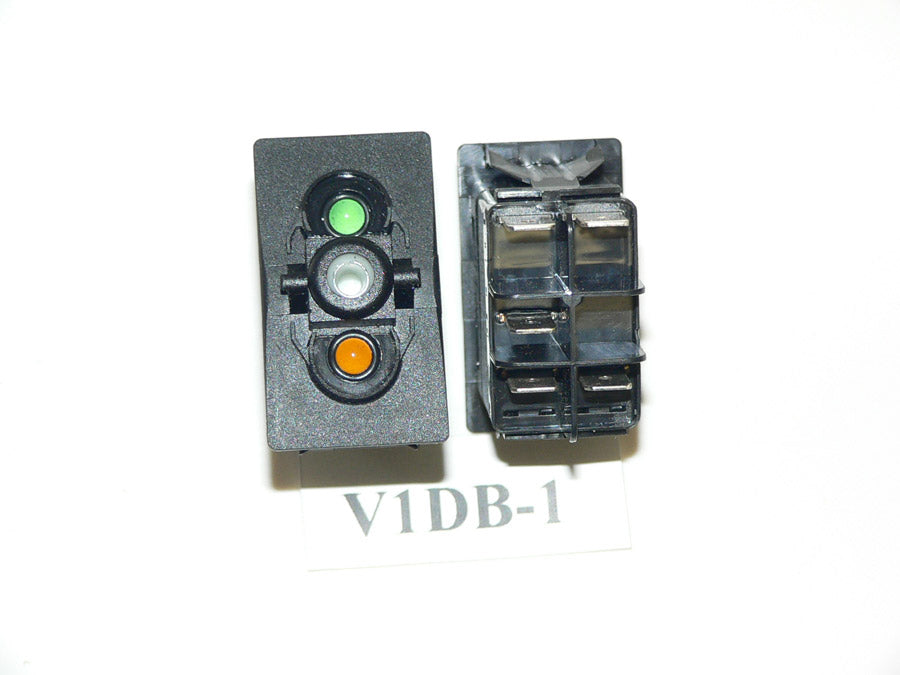

V1DB-1 Carling ON/OFF single pole V-series rocker switch w/12V Green and Amber lamps
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DB-1 ON/OFF SPST TERMINAL GUARDS W/ 12V GREEN AND AMBER LAMP
Specifications:
- FP Marine SKU:ELC-009018
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Double 12V Green LED, position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): V1DB-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.Part# V1DB-1
-
ON/OFF configuration
- Unique rare switch used by Sea Ray Boats and maybe some others.
- 12V LED green and amber lamps. The green LED lamp in the 1 position is dependent. It is grounded by terminal #8 and powered internally by terminal #3, it will illuminate when the switch is actuated to the on position. The amber lamp in the 2 bottom position is independent. It is grounded by Terminal #7 and powered by Terminal #6. It can be wired to illuminate at any time independently of actuator position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard dependent lamps that get their power internally when the handle moves to the on position
- 5 terminal; Terminals #8, #7 are the ground for the lamps. Terminal #2 is power in. Terminal #3 is power out when the actuator is pressed on. Terminal #6 is the power in for the amber lamp.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
V1DB 1 Carling ON/OFF single pole V series rocker switch w/12V Green and Amber lamps is a trusted choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be durable and finished to a high quality standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with friendly human support with real experience.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DB-1 ON/OFF SPST TERMINAL GUARDS W/ 12V GREEN AND AMBER LAMP
Specifications:
- FP Marine SKU:ELC-009018
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Double 12V Green LED, position 1 (top), Independent Amber position 2 (bottom)
- *OEM Part #(s): V1DB-1
- *Sea Ray Part #(s):
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.Part# V1DB-1
-
ON/OFF configuration
- Unique rare switch used by Sea Ray Boats and maybe some others.
- 12V LED green and amber lamps. The green LED lamp in the 1 position is dependent. It is grounded by terminal #8 and powered internally by terminal #3, it will illuminate when the switch is actuated to the on position. The amber lamp in the 2 bottom position is independent. It is grounded by Terminal #7 and powered by Terminal #6. It can be wired to illuminate at any time independently of actuator position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard dependent lamps that get their power internally when the handle moves to the on position
- 5 terminal; Terminals #8, #7 are the ground for the lamps. Terminal #2 is power in. Terminal #3 is power out when the actuator is pressed on. Terminal #6 is the power in for the amber lamp.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
V1DB 1 Carling ON/OFF single pole V series rocker switch w/12V Green and Amber lamps is commonly used for indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is responsive. You will reach personable people first support with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-009018
