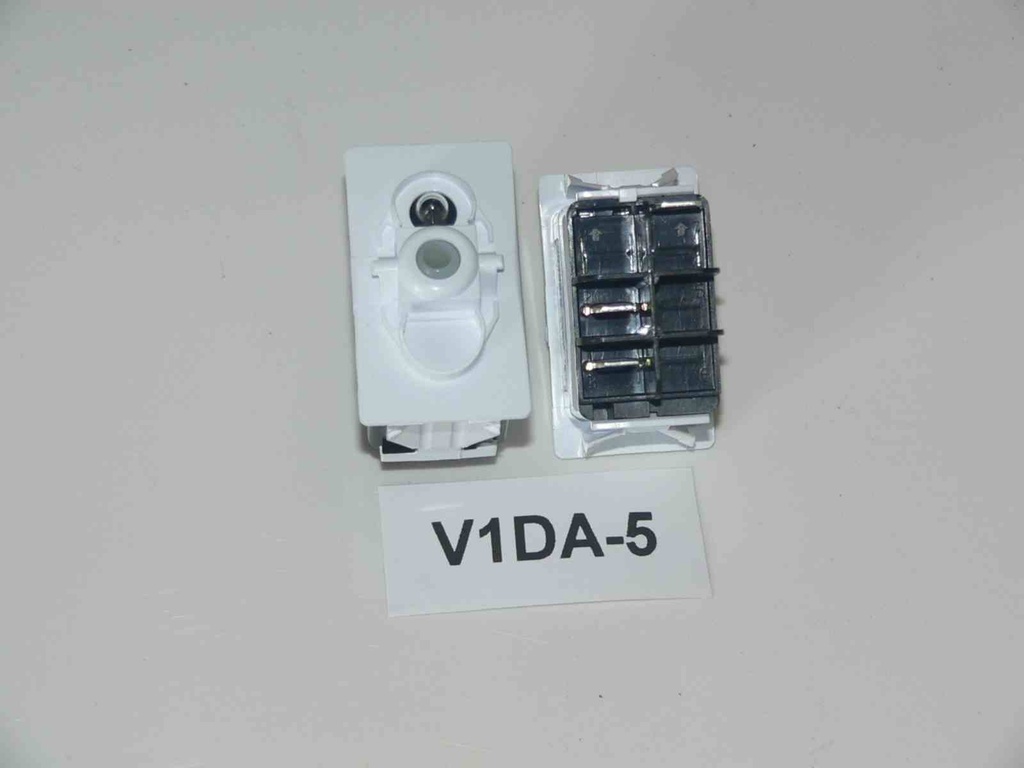

V1DA-5 Carling ON/OFF single pole V-series rocker switch w/12V lamp White Body
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DA-5 ON/OFF SPST WHITE BODY TERMINAL GUARDS W/ 12V CLEAR LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009016
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1DA-5
- *Sea Ray Part #(s): # 785931
- *Substitution(s):
Carlingswitch ON/OFF single pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- This is the most commonly used version of the ON/OFF illuminated rocker switch
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.

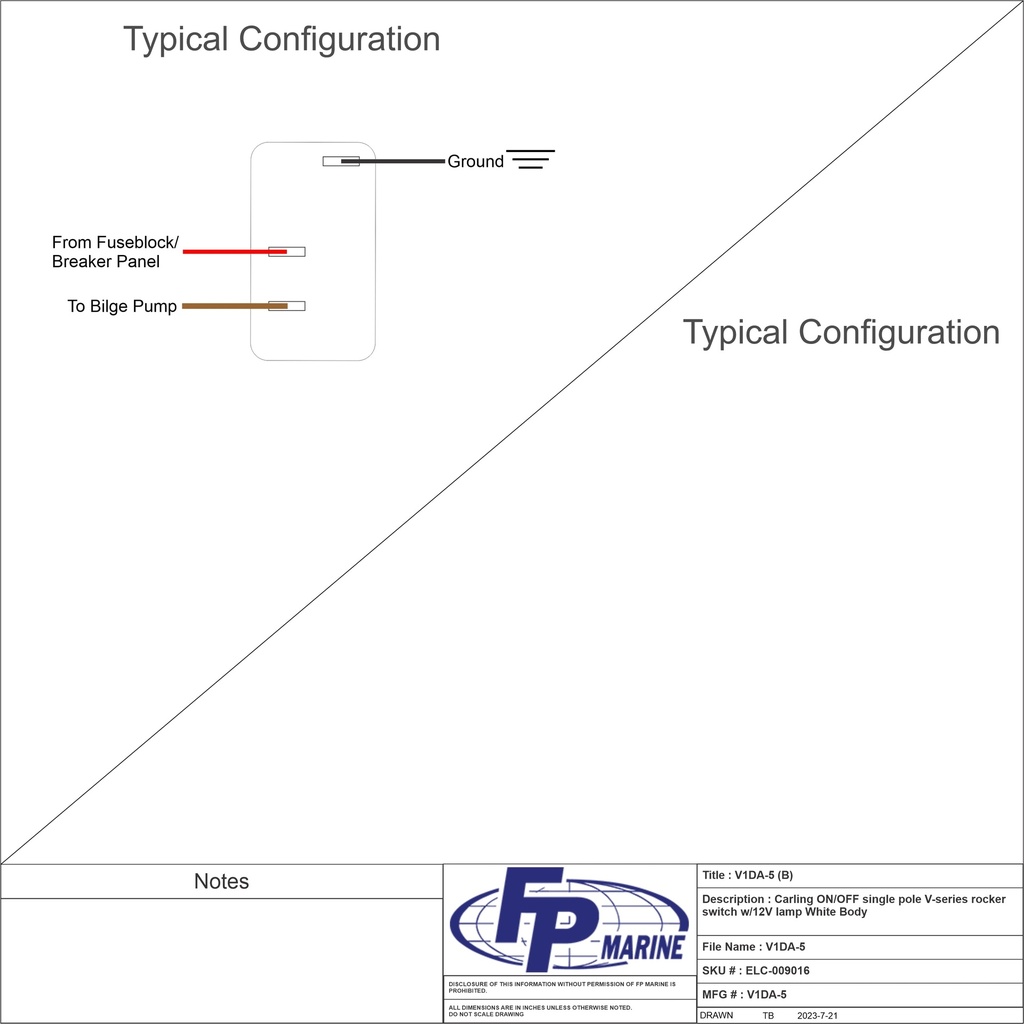

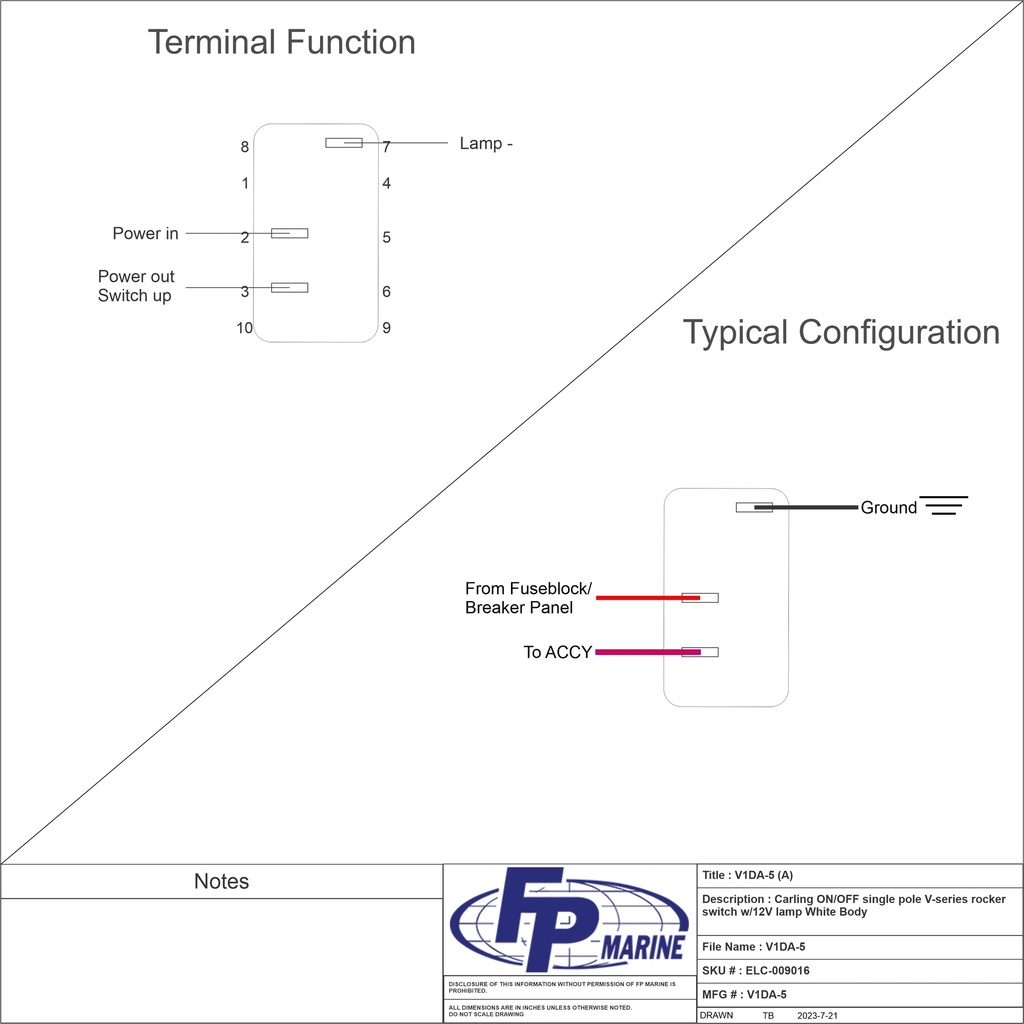

- 3 terminal; Terminal #7 is the ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# V1DA-5 Sea Ray part #
- This switch can substitute for Sea Ray Part, our Part# V15A-1 (No Lamp)
