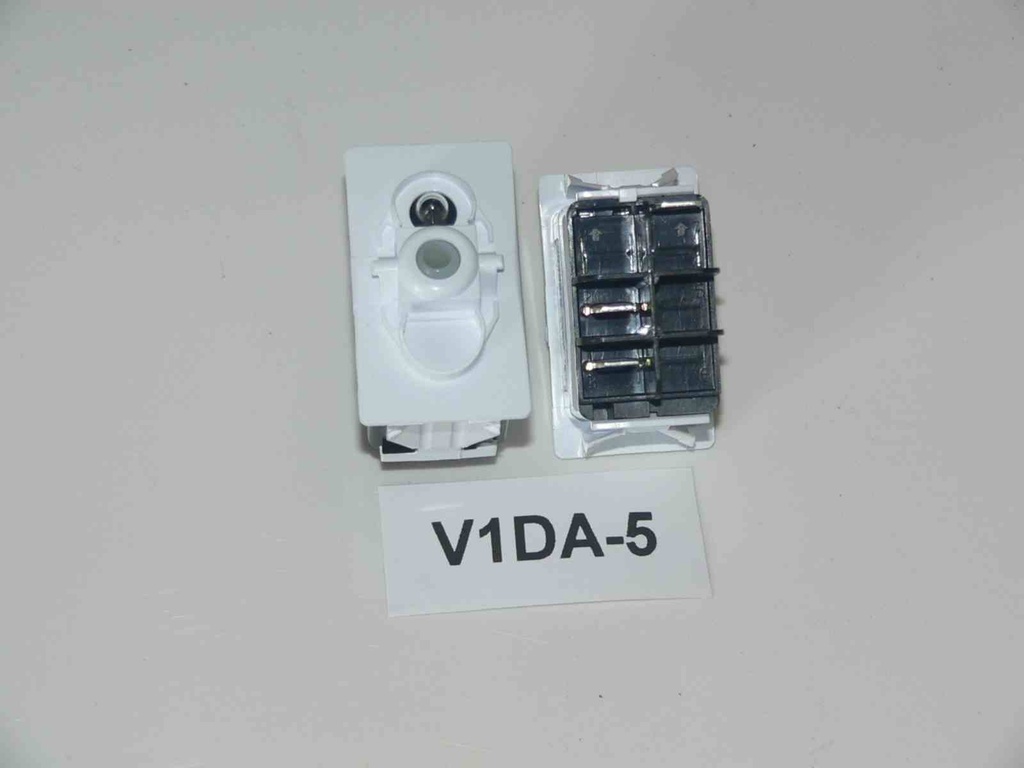

V1DA-5 Carling ON/OFF single pole V-series rocker switch w/12V lamp White Body
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DA-5 ON/OFF SPST WHITE BODY TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009016
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1DA-5
- *Sea Ray Part #(s): # 785931
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- This is the most commonly used version of the ON/OFF illuminated rocker switch
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 terminal; Terminal #7 is the ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# V1DA-5 Sea Ray part #
- This switch can substitute for Sea Ray Part, our Part# V15A-1 (No Lamp)
Product Overview
V1DA 5 Carling ON/OFF single pole V series rocker switch w/12V lamp White Body is a dependable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a professional marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with personable human support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DA-5 ON/OFF SPST WHITE BODY TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009016
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1DA-5
- *Sea Ray Part #(s): # 785931
- *Substitution(s):
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- This is the most commonly used version of the ON/OFF illuminated rocker switch
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 terminal; Terminal #7 is the ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# V1DA-5 Sea Ray part #
- This switch can substitute for Sea Ray Part, our Part# V15A-1 (No Lamp)
Fitment and Ordering Support
In marine electrical service work, V1DA 5 Carling ON/OFF single pole V series rocker switch w/12V lamp White Body supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach friendly people first support with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-009016
