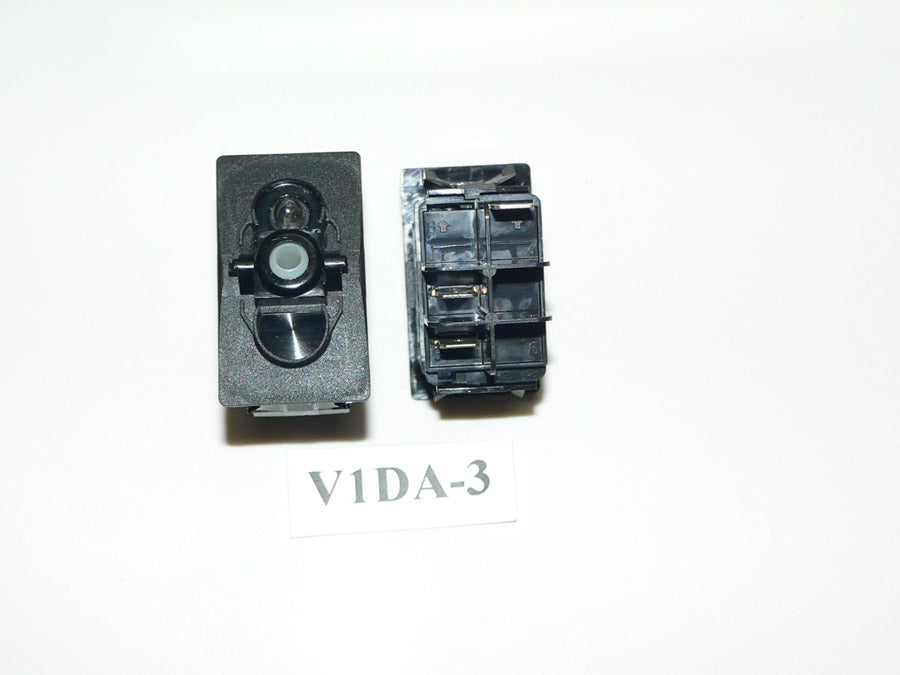

V1DA-3 Carling ON/OFF single pole V-series rocker switch w/12V lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DA-3 ON/OFF SPST TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009015
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1DA-3
- *Sea Ray Part #(s): # 648097
- *Substitution(s):
- This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- This is the most commonly used version of the ON/OFF illuminated rocker switch
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 terminal; Terminal #7 is the ground for the lamp, Terminal #2 are power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# V1DA-3 Sea Ray part , Old part# 0648097 - our V1D1-2 is a substitute
- Same switch as V1D1-2, but this unit has the plastic barriers between the terminals
Product Overview
V1DA 3 Carling ON/OFF single pole V series rocker switch w/12V lamp is a practical pick for service work when you want control you can count on. It is commonly used for indicator and control circuits. It is a expert marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our service team is responsive. You will speak with friendly real people with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1DA-3 ON/OFF SPST TERMINAL GUARDS W/ 12V CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009015
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1DA-3
- *Sea Ray Part #(s): # 648097
- *Substitution(s):
- This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- This is the most commonly used version of the ON/OFF illuminated rocker switch
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 terminal; Terminal #7 is the ground for the lamp, Terminal #2 are power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Part# V1DA-3 Sea Ray part , Old part# 0648097 - our V1D1-2 is a substitute
- Same switch as V1D1-2, but this unit has the plastic barriers between the terminals
Fitment and Ordering Support
Customers use V1DA 3 Carling ON/OFF single pole V series rocker switch w/12V lamp for indicator and control circuits in many marine setups. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a high quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is helpful. You will reach friendly real people with real hands on expertise who can help confirm the right part.
