V1D1-3 ON/OFF SPST W/ 12V RED AND GREEN LAMPS
Specifications:
- FP Marine SKU:ELC-009012
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Double 12V Red, position 1 (top) and Green, position 2 (bottom)
- *OEM Part #(s): V1D1-3
- *Sea Ray Part #(s):
- *Substitution(s):

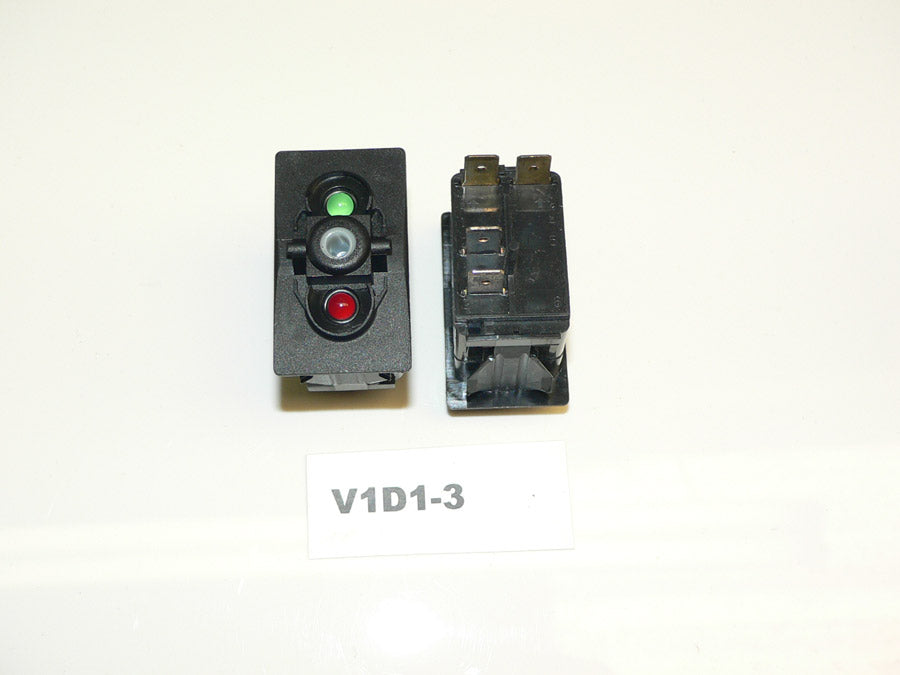

Carlingswitch ON/OFF single pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- Unique rare switch used by V1D1-3Monterey Boats and maybe some others.
- 12V LED green and red lamps. The green LED lamp in the #1 (top) position is independent and can be wired to illuminate at any time. The red lamp in the #2 (bottom) position is dependent and illuminates when the switch is actuated to the ON position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position
- 4 terminal; Terminal #8 power and Terminal #7 ground for the lamps. Note that Terminal #7 ground for both of the lamps and Terminal #8 is the power for the independent green lamp. Terminal #2 is power in and Terminal #3 is power out for the circuit.
- Common for Marine, RV, automotive, and other 12V DC applications.
