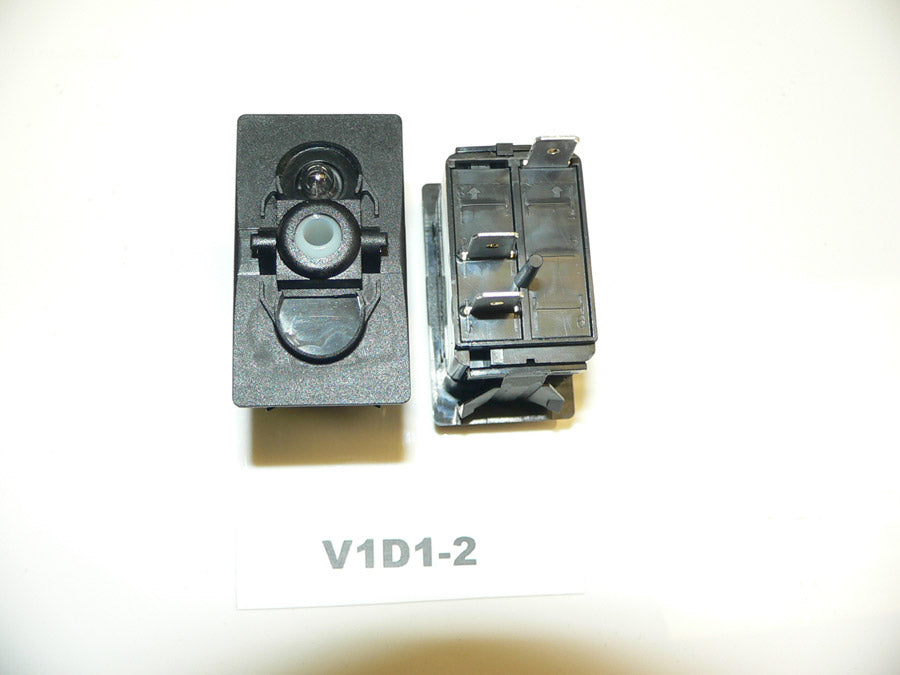

V1D1-2 Carling ON/OFF Single Pole V-series Rocker Switch w/ 12V Lamp
PNL-BW180VT-stg
V1D1-2 ON/OFF SPST W/ SINGLE 12V CLEAR DEPENDENT LAMP
Specifications:
- Series: V-Series
- Manufacturers Part #: V1D1B60B
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear Position 1 (top)
- *OEM Part #(s): V1D1-2
- *Sea Ray Part #(s): 648097, 0648097, 711812 (older grey body)
- *Substitution(s): V1DA-3, V1D2
* Part #(s) may vary among boat models/years & are for search/reference only.
-
ON/OFF configuration.
- This is the most commonly used version of the ON/OFF illuminated rocker switch.
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 Terminal: Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Part # V1D1-2 , Sea Ray part # 648097 , Old part # 0648097 Also replaces the old gray body switch SR part # 711812
- Choose from a variety of actuators/covers with different lenses. Actuator/Cover part numbers begin with VV
- Same switch as V1DA-3, but this unit does not have the plastic barriers between the terminals.
- Common for Marine, RV, Automotive, and other 12V DC applications.
THIS SWITCH MAY BE SUBSTITUTED FOR A V1D2 SWITCH.
Product Overview
V1D1 2 Carling ON/OFF Single Pole V series Rocker Switch w/ 12V Lamp is a reliable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be built to last and finished to a high quality standard. If you want help confirming fitment or wiring, our customer service is supportive. You will speak with personable people first support with real experience.
Specifications and Details
Web Listing Details
V1D1-2 ON/OFF SPST W/ SINGLE 12V CLEAR DEPENDENT LAMP
Specifications:
- Series: V-Series
- Manufacturers Part #: V1D1B60B
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear Position 1 (top)
- *OEM Part #(s): V1D1-2
- *Sea Ray Part #(s): 648097, 0648097, 711812 (older grey body)
- *Substitution(s): V1DA-3, V1D2
* Part #(s) may vary among boat models/years & are for search/reference only.
-
ON/OFF configuration.
- This is the most commonly used version of the ON/OFF illuminated rocker switch.
- 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
- 3 Terminal: Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Part # V1D1-2 , Sea Ray part # 648097 , Old part # 0648097 Also replaces the old gray body switch SR part # 711812
- Choose from a variety of actuators/covers with different lenses. Actuator/Cover part numbers begin with VV
- Same switch as V1DA-3, but this unit does not have the plastic barriers between the terminals.
- Common for Marine, RV, Automotive, and other 12V DC applications.
THIS SWITCH MAY BE SUBSTITUTED FOR A V1D2 SWITCH.
Fitment and Ordering Support
In marine electrical service work, V1D1 2 Carling ON/OFF Single Pole V series Rocker Switch w/ 12V Lamp supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach friendly real people with real know how who can help confirm the right part.
