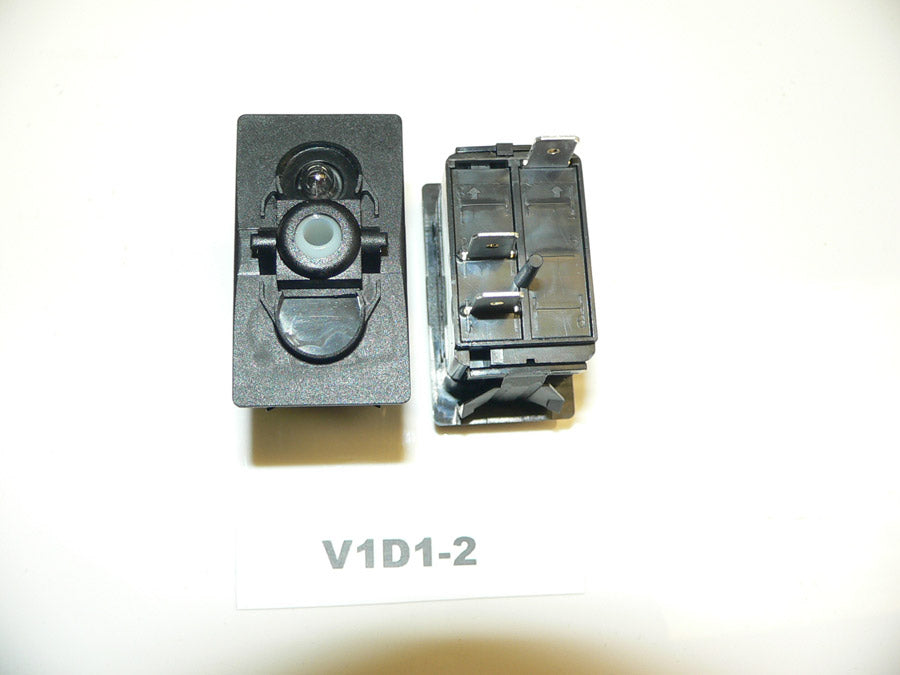

V1D1-2 Carling ON/OFF Single Pole V-series Rocker Switch w/ 12V Lamp
PNL-BW180VT-stg
Electrical Switch for Sea Ray and Other Boats
OEM-quality marine electrical switch engineered for reliable boat system control. For Sea Ray, Boston Whaler, Grady White, and other cruisers.
Product Specifications
Type: Electrical Switch
Configuration: Single Pole - Standard
Application: boat electrical switching and control
SKU: ELC-009009
Details: V1D1-2 ON/OFF SPST W/ SINGLE 12V CLEAR DEPENDENT LAMP Carling Contura V-Series Rocker Switch Body This is a Switch Body Only. Actuators/Covers are sold separately. (Shop Our Wide Variety of Contura Actuators/Covers Here!) Specifications: Series: V-SeriesManufacturers Part #: V1D1B60B Function:Latching ON/OFF SPST Lamp: Single 12V Clear Position 1 (top) *OEM Part #(s): V1D1-2*Sea Ray Part #(s): 648097, 0648097, 711812 (older grey body) *Substitution(s): V1DA-3, V1D2 * Part #(s) may vary among boat models/years & are for search/reference only. ON/OFF configuration. This is the most commonly used version of the ON/OFF illuminated rocker switch. 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position. 3 Terminal: Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out. Part # V1D1-2 , Sea Ray part # 648097 , Old part # 0648097 Also replaces the old gray body switch SR part # 711812 Choose from a variety of actuators/covers with different lenses. Actuator/Cover part numbers begin with VV Same switch as V1DA-3, but this unit does not have the plastic barriers between the terminals. Common for Marine, RV, Automotive, and other 12V DC applications. THIS SWITCH MAY BE SUBSTITUTED FOR A V1D2 SWITCH.
Why OEM Electrical Switches Matter
OEM electrical switches are engineered for your boat's voltage and amperage specifications. They deliver reliable operation, proper electrical protection, and long-term durability in marine environments. Using correct switches prevents electrical system failures, fires, and equipment damage.
Quality electrical components ensure system safety and reliability. Always use OEM switches rated for your boat's electrical system specifications.
Quick FAQs
Will this switch fit my boat?
Designed for Sea Ray and other standard boats. Electrical switches must match your boat's voltage and amperage specifications. Verify compatibility before ordering. Contact [email protected] with your boat model and electrical system details.
What's the difference between Single Pole and Double Pole?
Single Pole switches control one circuit. Double Pole switches control two independent circuits simultaneously. Choose based on your boat's electrical configuration. Contact [email protected] if unsure which type you need.
What's the difference between Momentary and Locking?
Momentary switches activate only while pressed. Locking (or toggle) switches stay in position until toggled again. Choose based on your application. Wrong type can cause electrical system issues.
Can I use any electrical switch?
No. Electrical switches must match your boat's voltage (12V, 24V, etc.) and amperage rating exactly. Using wrong switches risks electrical fires and system failure. Always use OEM switches rated for your specific boat system. Never substitute with automotive or general-purpose switches.
Do you have switches for older boat models?
Yes. We stock electrical switches for boats from 1980s-current production. Contact [email protected] with your boat's model year and electrical system specifications.
