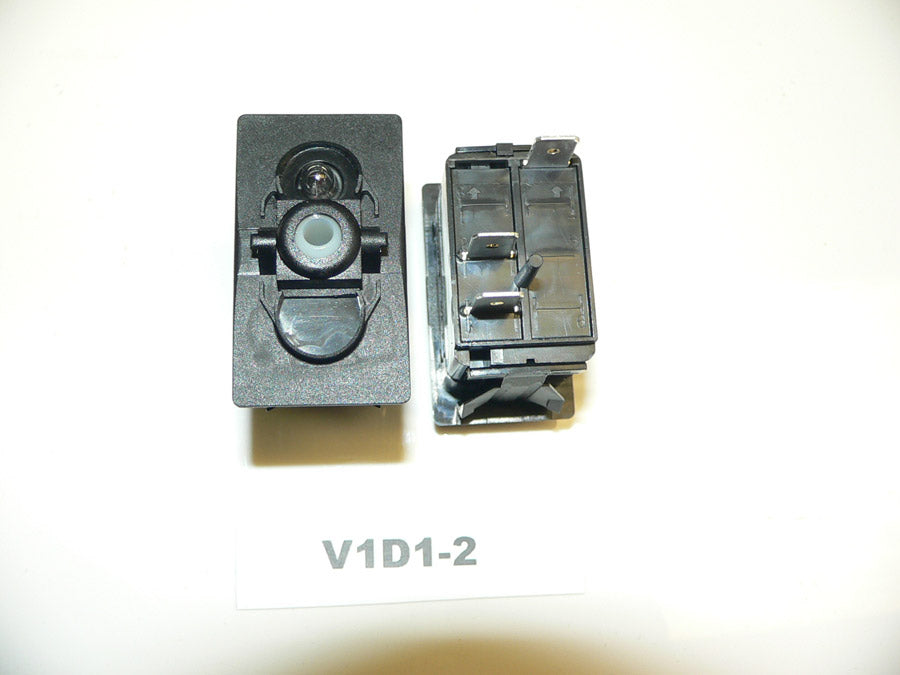

V1D1-2 Carling ON/OFF Single Pole V-series Rocker Switch w/ 12V Lamp

V1D1-2 ON/OFF SPST W/ SINGLE 12V CLEAR DEPENDENT LAMP

Specifications:

• Series: V-Series
• Manufacturers Part #: V1D1B60B

• Function:Latching ON/OFF SPST

• Lamp: Single 12V Clear Position 1 (top)
• *OEM Part #(s): V1D1-2
• *Sea Ray Part #(s): 648097, 0648097, 711812 (older grey body)
• *Substitution(s): V1DA-3, V1D2

* Part #(s) may vary among boat models/years & are for search/reference only.

• ON/OFF configuration.

• This is the most commonly used version of the ON/OFF illuminated rocker switch.
• 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
• 3 Terminal: Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
• Part # V1D1-2 , Sea Ray part # 648097 , Old part # 0648097 Also replaces the old gray body switch SR part # 711812
• Choose from a variety of actuators/covers with different lenses. Actuator/Cover part numbers begin with VV
• Same switch as V1DA-3, but this unit does not have the plastic barriers between the terminals.
• Common for Marine, RV, Automotive, and other 12V DC applications.

THIS SWITCH MAY BE SUBSTITUTED FOR A V1D2 SWITCH.
