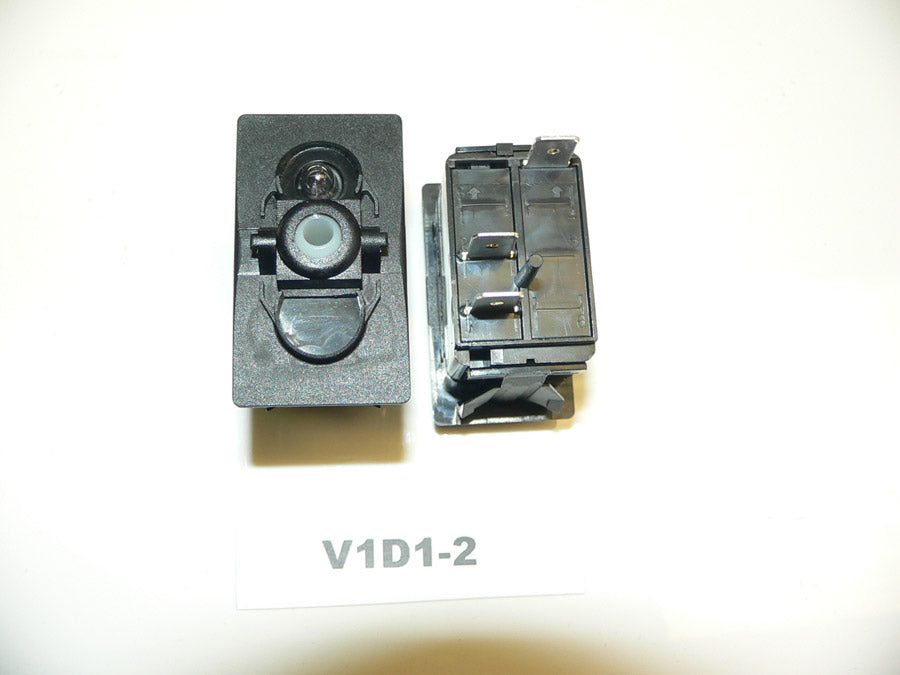

V1D1-2 Carling ON/OFF Single Pole V-series Rocker Switch w/ 12V Lamp

https://www.fpmarine.com/web/image/product.template/28714/image_1920?unique=e60a925

SUR-000009-1791788

V1D1-2 ON/OFF SPST W/ SINGLE 12V CLEAR DEPENDENT LAMP

Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.

Specifications:

  • Series: V-Series
  • Function:Latching ON/OFF SPST
  • Lamp: Single 12V Clear Position 1 (top)
  • *OEM Part #(s): V1D1-2
    • *Sea Ray Part #(s):648097 , 0648097 , 711812 (older grey body)
  • *Substitution(s):V1DA-3 , V1D2

* Part #(s) may vary among boat models/years & are for search/reference only.

  • ON/OFF configuration.
  • This is the most commonly used version of the ON/OFF illuminated rocker switch.
  • 12V clear incandescent lamp in the top position. Lamp illuminates when the switch is actuated to the ON position.
  • 3 Terminal: Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
  • Part # V1D1-2 , Sea Ray part # 648097 , Old part # 0648097 Also replaces the old gray body switch SR part # 711812
  • Choose from a variety of actuators/covers with different lenses. Actuator/Cover part numbers begin with VV
  • Same switch as V1DA-3, but this unit does not have the plastic barriers between the terminals.
  • Common for Marine, RV, Automotive, and other 12V DC applications.

THIS SWITCH MAY BE SUBSTITUTED FOR A V1D2 SWITCH.
