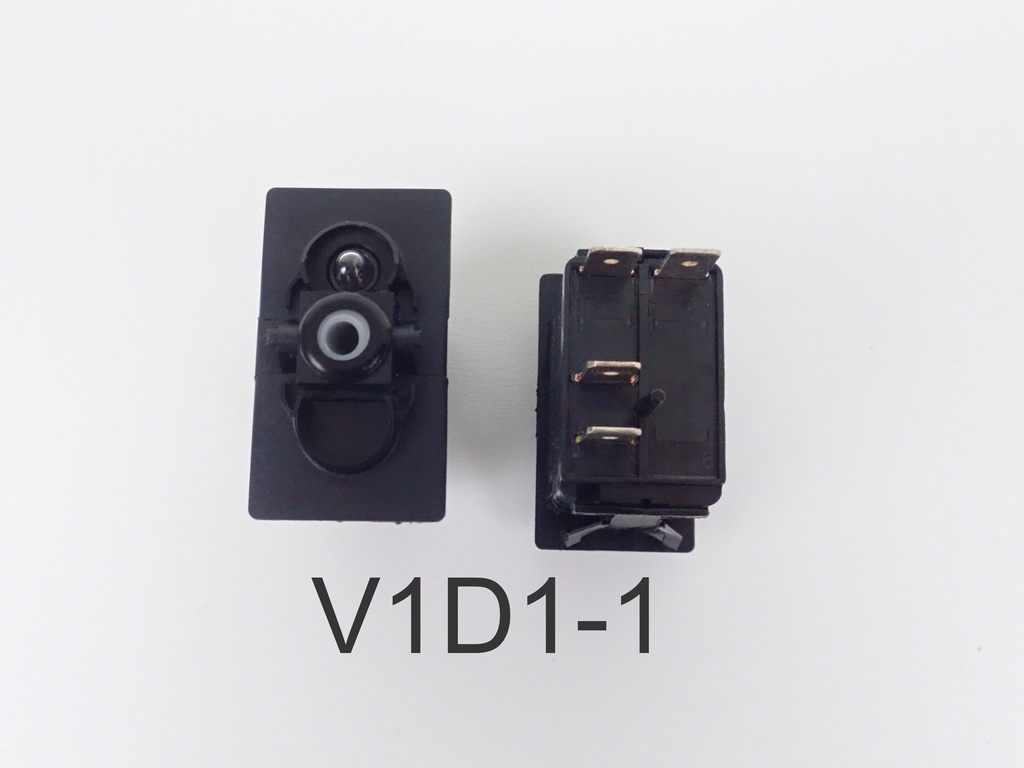

V1D1-1Carling ON/OFF single pole V-series rocker switch w/independent 12V lamp
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1D1-1 ON/OFF SPST W/ INDEPENDENT 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009007
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V1D1-1
- *Sea Ray Part #(s): # 681502
- *Substitution(s):
-
ON/OFF configuration
- 12V independent incandescent lamp in the top position
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Sea Ray part - synchronizer, old part # 0681502
Product Overview
If you are replacing a worn switch, V1D1 1Carling ON/OFF single pole V series rocker switch w/independent 12V lamp is a trusted option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a latest option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be long lasting and finished to a quality standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with friendly real people with real know how.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1D1-1 ON/OFF SPST W/ INDEPENDENT 12V CLEAR LAMP
Specifications:
- FP Marine SKU: ELC-009007
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V1D1-1
- *Sea Ray Part #(s): # 681502
- *Substitution(s):
-
ON/OFF configuration
- 12V independent incandescent lamp in the top position
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Sea Ray part - synchronizer, old part # 0681502
Fitment and Ordering Support
In marine electrical service work, V1D1 1Carling ON/OFF single pole V series rocker switch w/independent 12V lamp supports indicator and control circuits. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is responsive. You will reach easy to work with human support with real experience who can help confirm the right part.
Internal Reference:
ELC-009007
