V1D1-1Carling ON/OFF single pole V-series rocker switch w/independent 12V lamp
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's

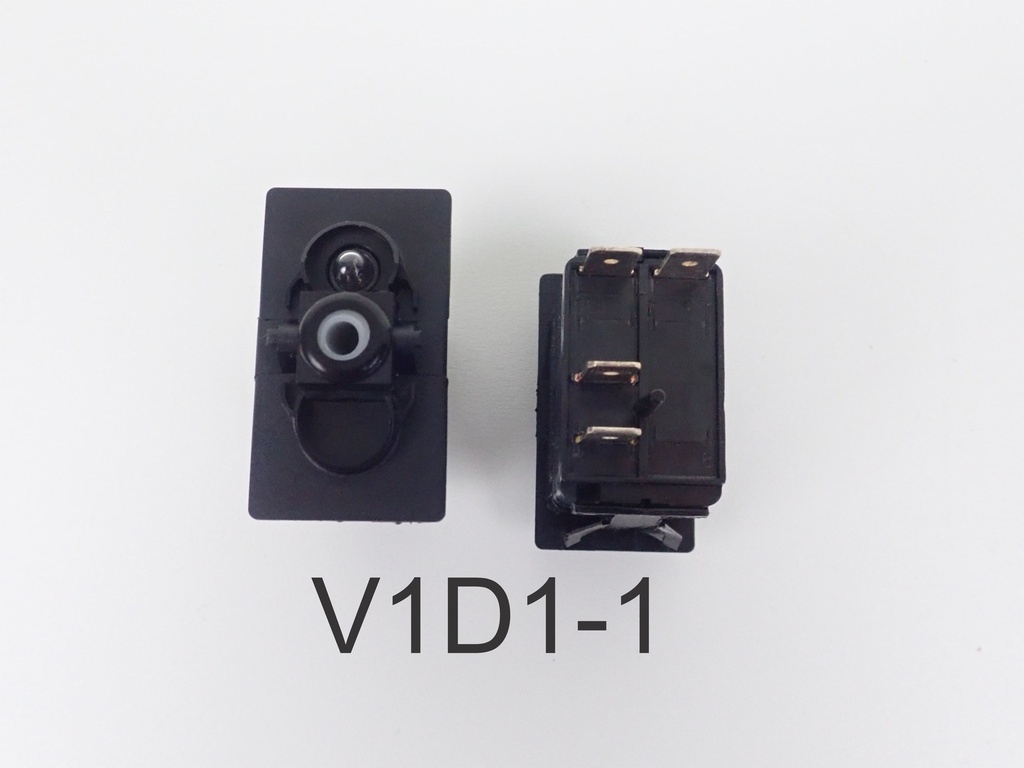

V1D1-1 ON/OFF SPST W/ INDEPENDENT 12V CLEAR LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU: ELC-009007
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single Independent 12V Clear, position 1 (top)
- *OEM Part #(s): V1D1-1
- *Sea Ray Part #(s): # 681502
- *Substitution(s):
Carlingswitch ON/OFF single pole V series Contura rocker switch body.
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- 12V independent incandescent lamp in the top position
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position

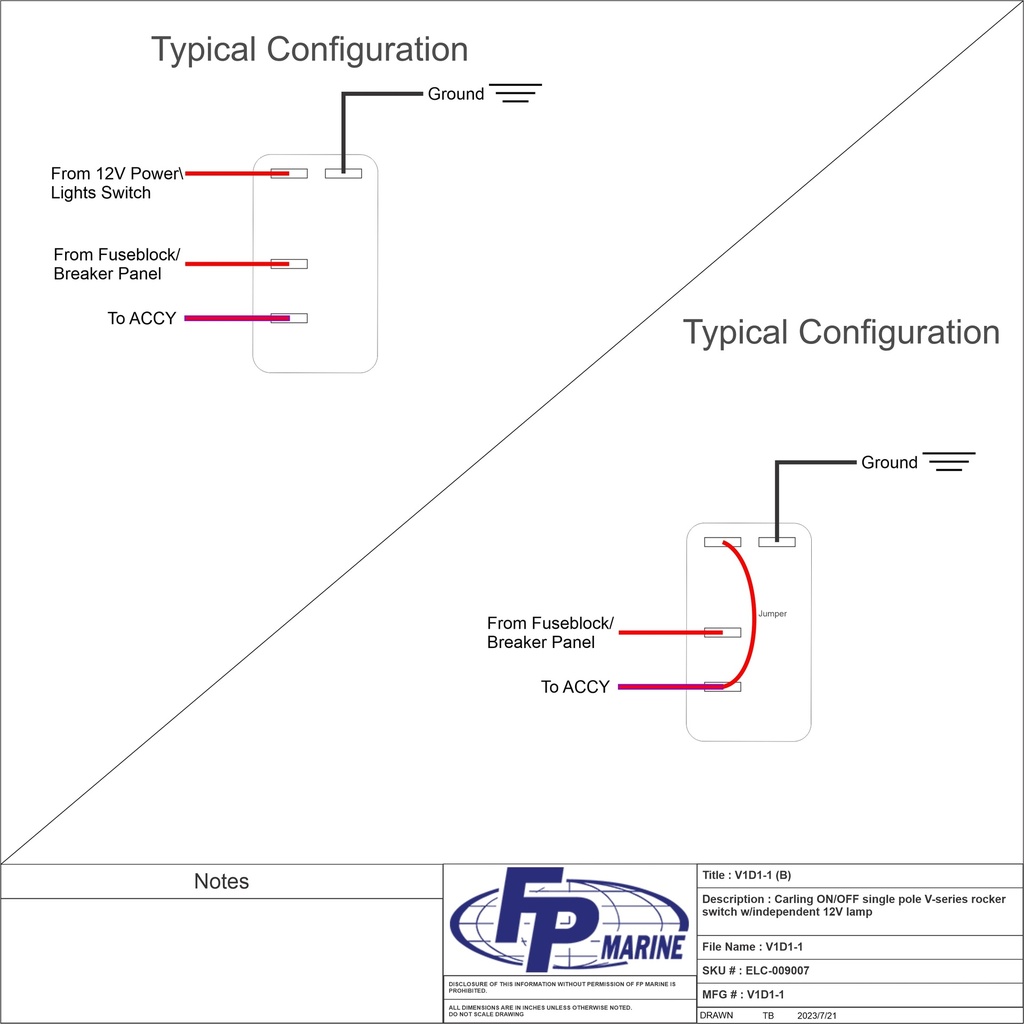

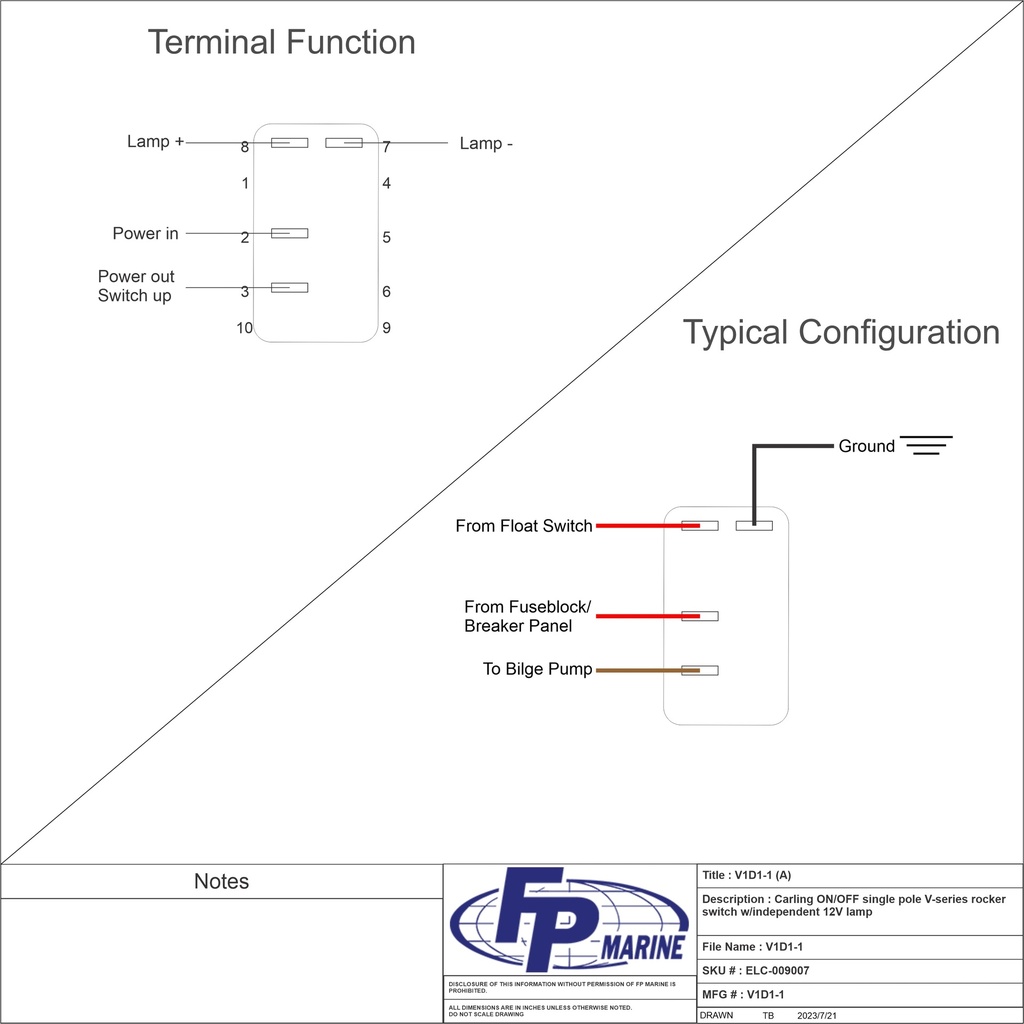

- 4 terminal; Terminal #8 is power and Terminal #7 ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Sea Ray part - synchronizer, old part # 0681502
