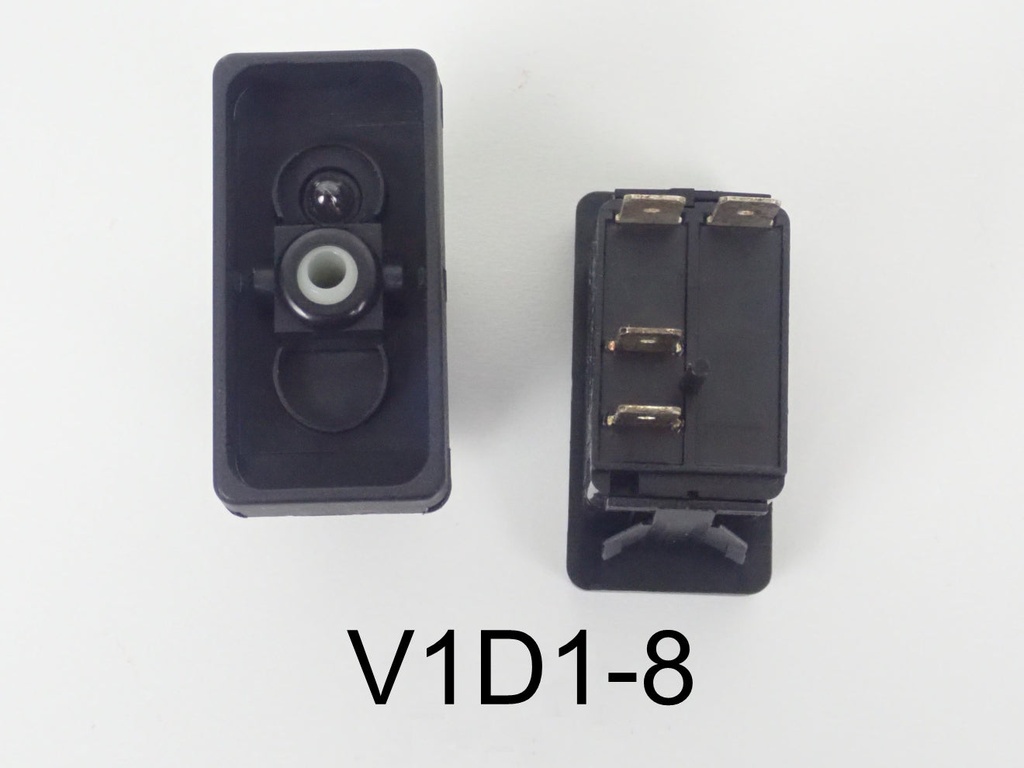

V1D1-8 Carling rocker switch On/Off w/Independent Lamp. Raised Bracket. No Actuator
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1D1-8 ON/OFF SPST RAISED BRACKETS W/ INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009006
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1D1-8
- *Sea Ray Part #(s):
- *Substitution(s):
- ON/OFF configuration
- Single Pole
- This switch has a "raised bracket" and protects the actuator from accidental activation. This switch accepts Carling Contura X, XI, or XII actuators only
- 12V Clear independent lamp in the #1 (top) position is wired to Terminals #7 and #8 and illuminates independently of actuator position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #7 is the ground for the lamp, Terminal #8 is the power feed for the independent lamp in position 1. Terminal #2 is power in. Terminal #3) is power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
Product Overview
V1D1 8 Carling rocker switch On/Off w/Independent Lamp. Raised Bracket. No Actuator is a dependable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. This is a updated option for customers refreshing an older setup. It is a professional marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with easy to work with people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1D1-8 ON/OFF SPST RAISED BRACKETS W/ INDEPENDENT CLEAR LAMP
Specifications:
- FP Marine SKU:ELC-009006
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 12V Clear, position 1 (top)
- *OEM Part #(s): V1D1-8
- *Sea Ray Part #(s):
- *Substitution(s):
- ON/OFF configuration
- Single Pole
- This switch has a "raised bracket" and protects the actuator from accidental activation. This switch accepts Carling Contura X, XI, or XII actuators only
- 12V Clear independent lamp in the #1 (top) position is wired to Terminals #7 and #8 and illuminates independently of actuator position.
- An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard "dependent" lamps that get their power internally when the actuator moves to the "on" position
- 4 terminal; Terminal #7 is the ground for the lamp, Terminal #8 is the power feed for the independent lamp in position 1. Terminal #2 is power in. Terminal #3) is power out.
- Common for Marine, RV, automotive, and other 12V DC applications.
Fitment and Ordering Support
In marine electrical service work, V1D1 8 Carling rocker switch On/Off w/Independent Lamp. Raised Bracket. No Actuator supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our support team is supportive. You will reach personable human support with real hands on expertise who can help confirm the right part.
Internal Reference:
ELC-009006
