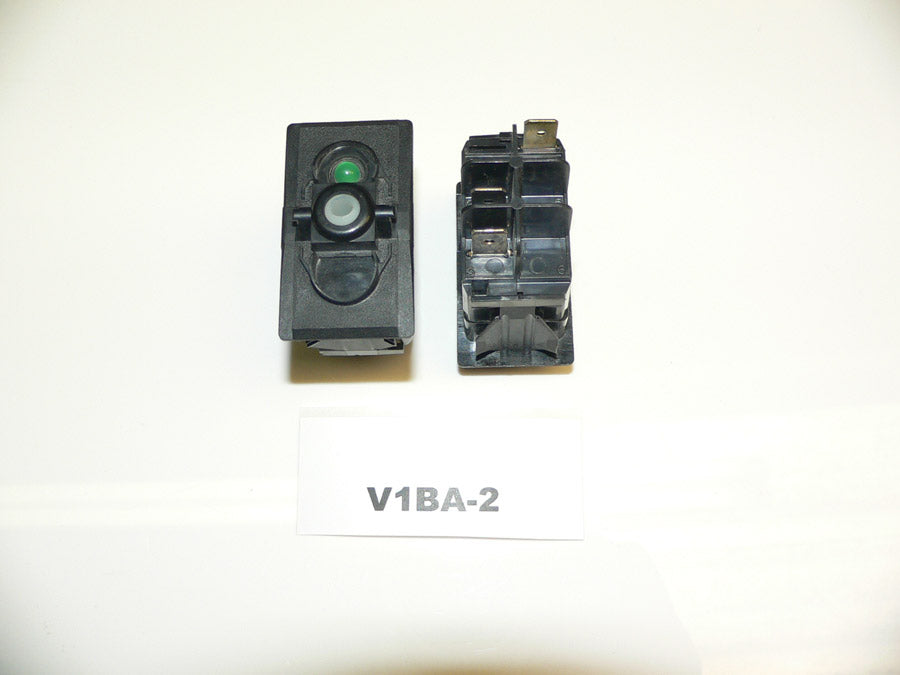

V1BA-2 Carling ON/OFF single pole V-series rocker switch w/24V green lamp
SUR-000009-1791788
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
V1BA-2 ON/OFF SPST TERMINAL GUARDS W/ 24V GREEN LAMP
Carling Contura V-Series Rocker Switch Body
This is a Switch Body Only. Actuators/Covers are sold separately.
Specifications:
- FP Marine SKU:ELC-009004
- Series: V-Series
- Function:Latching ON/OFF SPST
- Lamp: Single 24V Green, position 1 (top)
- *OEM Part #(s): V1BA-2
- *Sea Ray Part #(s): #1260264
- *Substitution(s):
Carlingswitch ON/OFF single pole V series Contura rocker switch body.
-
This is a Switch Body Only. Actuators are sold separately.
-
ON/OFF configuration
- 24V LED Green lamp in the top position. Lamp illuminates when the switch is actuated to the ON position
- Typically uses an actuator with a clear lens.
- 3 terminal with divider guards; Terminal #7 is the ground for the lamp, Terminal #2 is power in and Terminal #3 power out.
- Common for Marine, RV, automotive, and other 24V DC applications.
- Part# V1BA-2, Sea Ray part
