LT-2571-1, Carling DPDT (ON)/OFF/ON Independent Lamp - Lighted Tip Toggle Switch, Black Handle, 8 Terminal
PNL-BW180VT-stg
- Independent Red lamp with black handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.

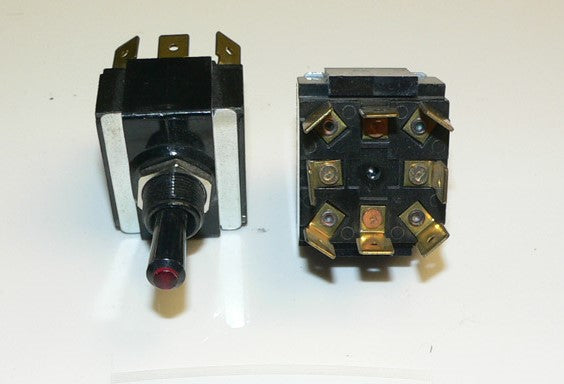

- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp. The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are MOMENTARY power out with the handle in the up position, the two terminals are independent of each other.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for two different circuits that do not need to be activated at the same time like a horn and a small accessory or light. They were popular on Maverick and Hewes boats.
- Part # LT-2571-1.
Product Overview
If you are replacing a worn switch, LT 2571 1, Carling DPDT (ON)/OFF/ON Independent Lamp Lighted Tip Toggle Switch, Black Handle, 8 Terminal is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. It is a expert marine replacement part. It is built to be durable and finished to a premium standard. If you want help confirming fitment or wiring, our service team is supportive. You will speak with personable people first support with real hands on expertise.
Specifications and Details
Web Listing Details
- Independent Red lamp with black handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 8 terminal; The two terminals marked "F" at the top middle and bottom middle positions are for the lamp. The center terminals on the left and right are power in, The upper left terminal and the upper right terminal are power out with the handle in the down position, the two terminals are independent of each other. The lower left terminal and the lower right terminal are MOMENTARY power out with the handle in the up position, the two terminals are independent of each other.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications. Typically used for two different circuits that do not need to be activated at the same time like a horn and a small accessory or light. They were popular on Maverick and Hewes boats.
- Part # LT-2571-1.
Fitment and Ordering Support
LT 2571 1, Carling DPDT (ON)/OFF/ON Independent Lamp Lighted Tip Toggle Switch, Black Handle, 8 Terminal is commonly used for indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach friendly real people with real know how who can help confirm the right part.
