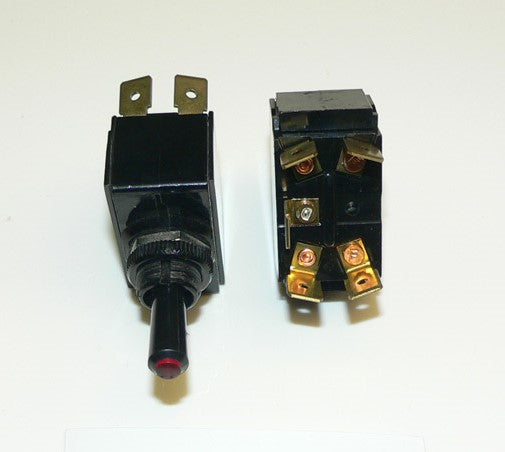

LT-1561-BLK-IND, Carling SPDT ON/OFF/ON Independent Lamp - Lighted Tip Toggle Switch, Black Handle
PNL-BW180VT-stg
Carlingswitch ON/OFF/ON single pole, lighted tip toggle switch.
- Independent Red lamp with black handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 5 terminal; The two terminals on the right marked "F" are for the lamp, The center terminal on the left is power in, The upper left terminal is power out with the handle in the down position, the lower left terminal is power out with the handle in the up position.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications.
- Part # LT-1561-5.
- Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
Product Overview
If you are replacing a worn switch, LT 1561 BLK IND, Carling SPDT ON/OFF/ON Independent Lamp Lighted Tip Toggle Switch, Black Handle is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a latest option for customers refreshing an older setup. It is a pro grade marine replacement part. It is built to be long lasting and finished to a premium standard. If you want help confirming fitment or wiring, our support team is helpful. You will speak with friendly real people with real experience.
Specifications and Details
Web Listing Details
Carlingswitch ON/OFF/ON single pole, lighted tip toggle switch.
- Independent Red lamp with black handle. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the handle position as opposed to standard "dependent" lamps that get their power internally when the handle moves to the "on" position.
- 5 terminal; The two terminals on the right marked "F" are for the lamp, The center terminal on the left is power in, The upper left terminal is power out with the handle in the down position, the lower left terminal is power out with the handle in the up position.
- Lamp is 12VDC.
- Common for Marine, RV, automotive, and other 12 volt DC applications.
- Part # LT-1561-5.
- Typically used for dual lighting applications, navigation lights (with external diode), or two different circuits that would not need to be utilized at the same time.
Fitment and Ordering Support
Customers use LT 1561 BLK IND, Carling SPDT ON/OFF/ON Independent Lamp Lighted Tip Toggle Switch, Black Handle for indicator and control circuits in many marine setups. It is typically selected when you need a trusted replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach personable human support with real experience who can help confirm the right part.
