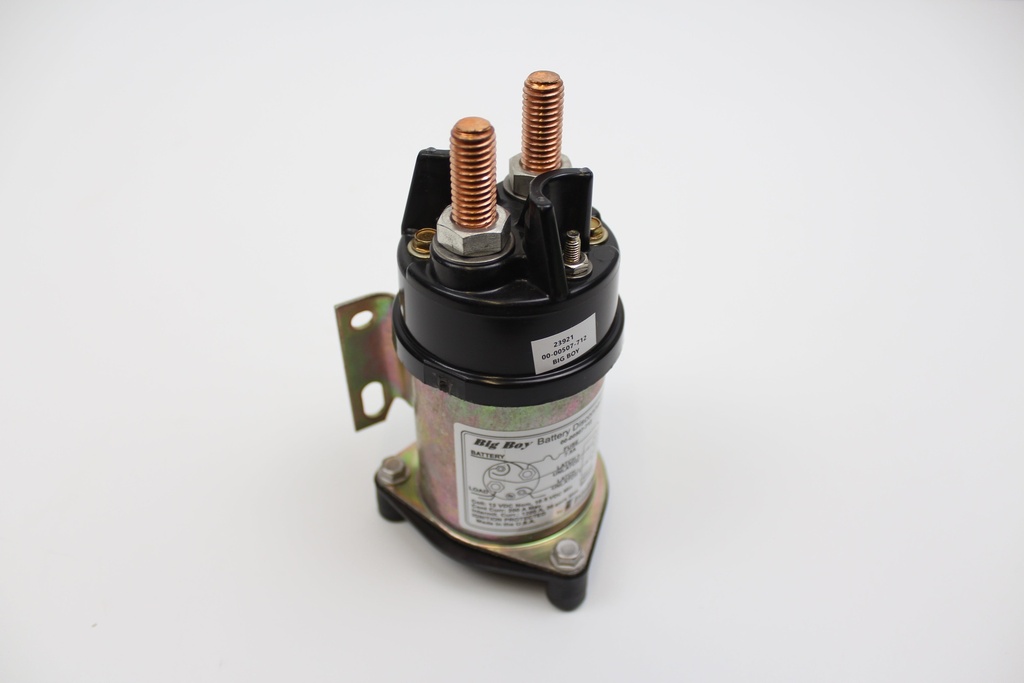

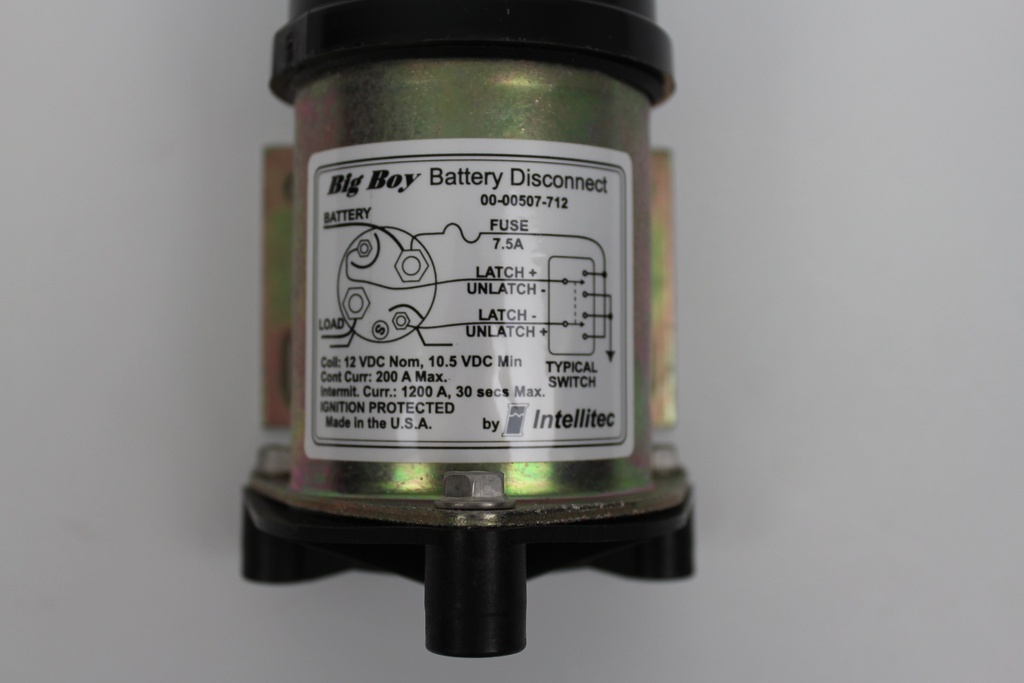

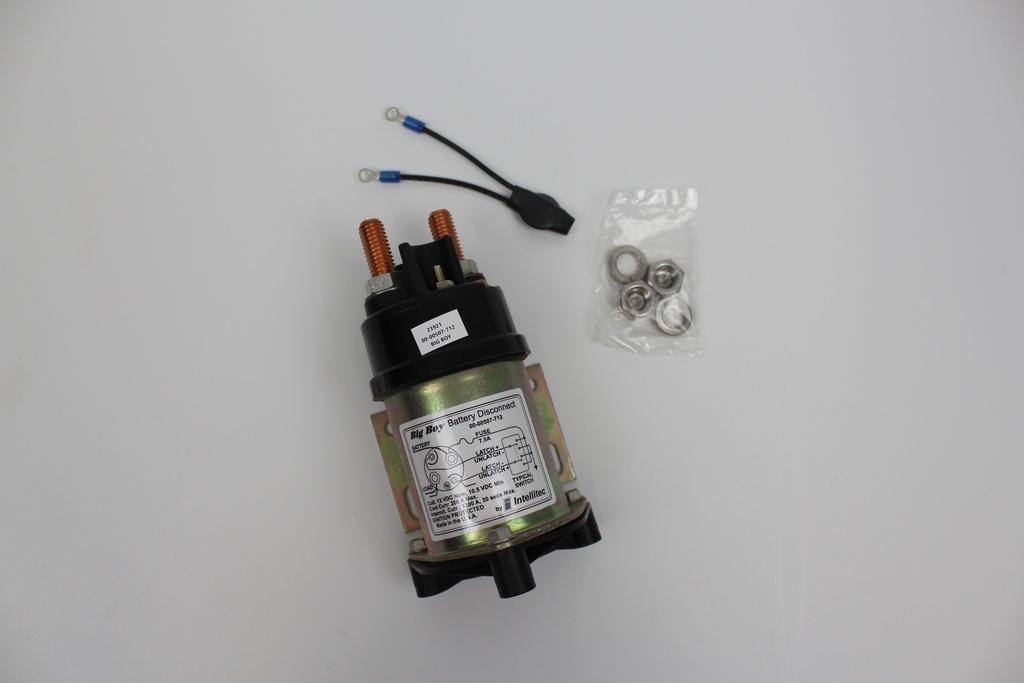

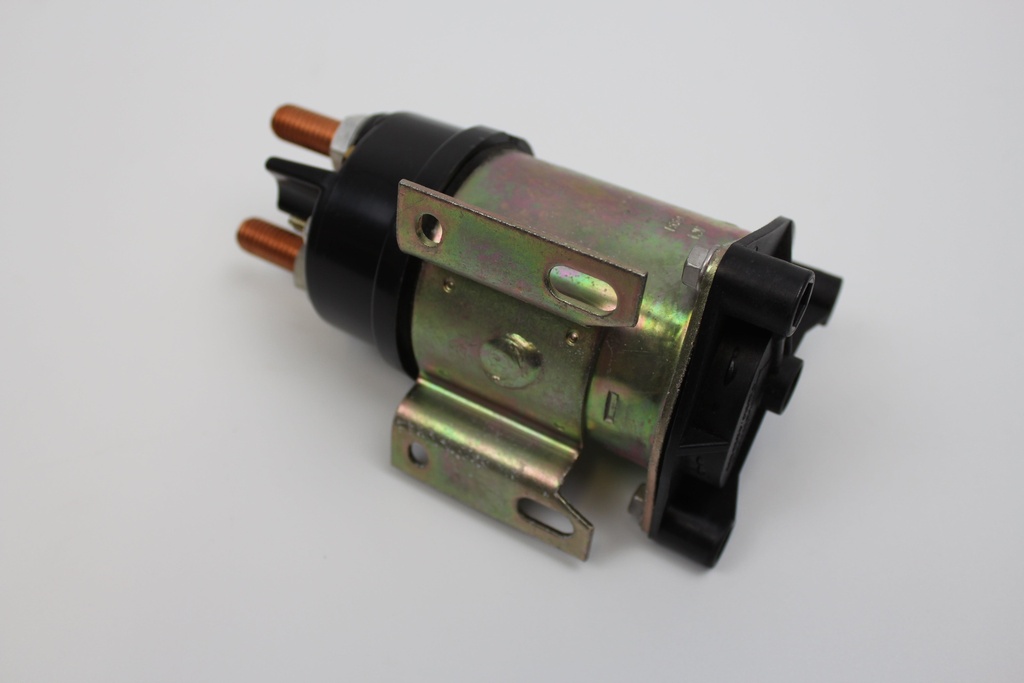

Intellitec 200 amp "Big Boy" Battery disconnect/latching relay 12 Volt
SUR-000009-1791788
Heavy Duty 12 volt Solenoid / Latching Relay / Disconnect
- Intellitec Part # 00-00507-712
- Sea Ray uses these on batteries and bow thruster systems
- Sea Ray Part # 980219
- 200 amp continuous 1200 amp intermittent
12V Models:
00-00507-012 (Latching)
00-00507-512 (Ignition Protected and latching)
00-00507-712 (Marine Application and Ignition protected and latching)
77-90006-120 (Non-latching)

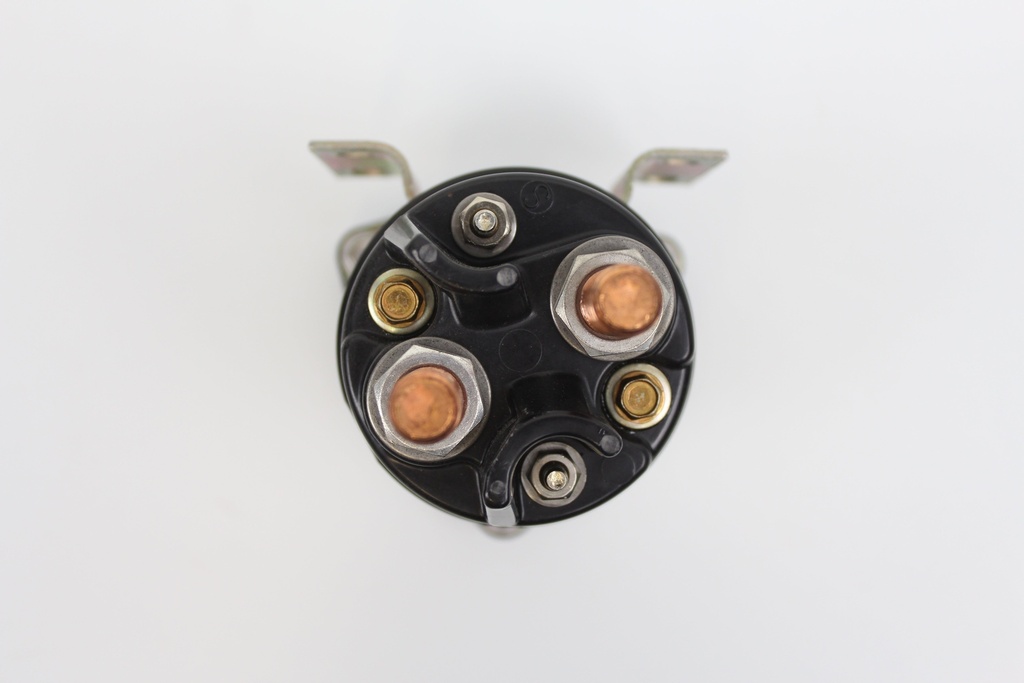

*Marine models have stainless studs for the 2 #10 coil terminals.
Product Specifications:
53-00507-000.cdr (intellitec.com)
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Internal Reference:
ELC-007900
