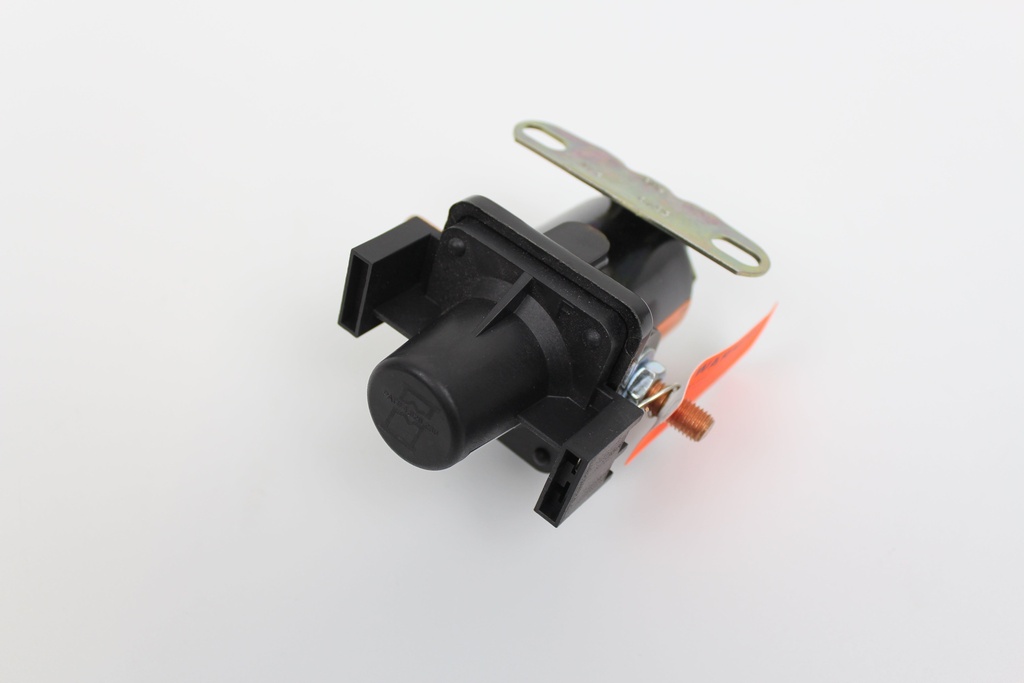

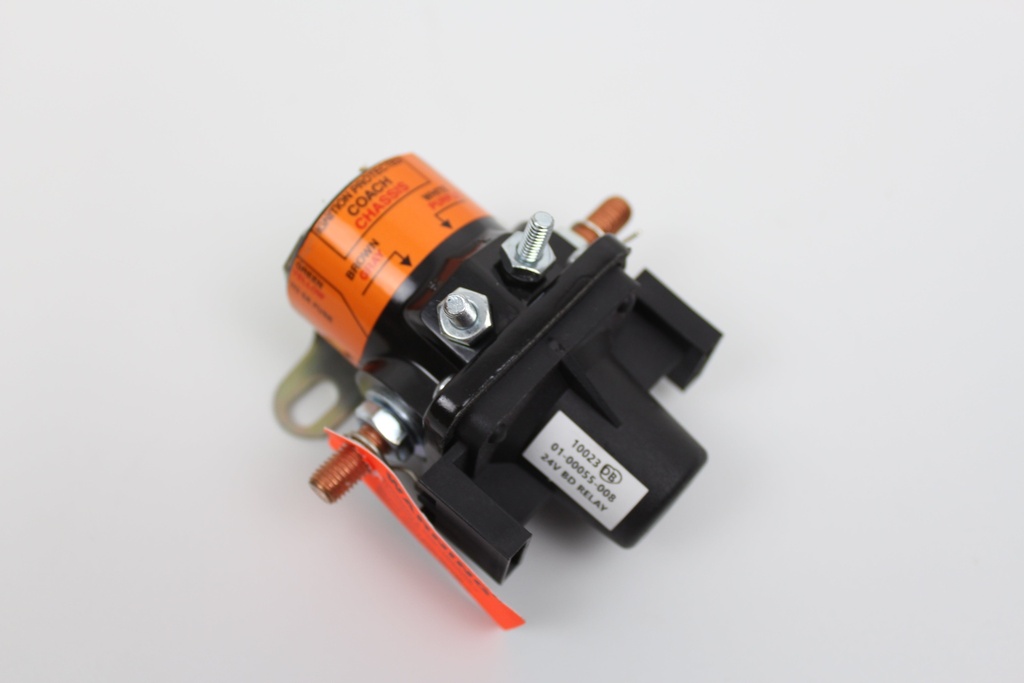

Intellitec 100 amp battery disconnect relay solenoid 24 volt
PNL-BW180VT-stg
Remotely disconnects batteries for temporary or long term storage
Intellitec Part #: 01-00055-008
THE RELAY - How it Works
The Battery Disconnect Relay is a mechanically latching switch that operates by the momentary application of battery voltage to the coil terminals in one direction for latching (closed) or the other direction for unlatching (open).

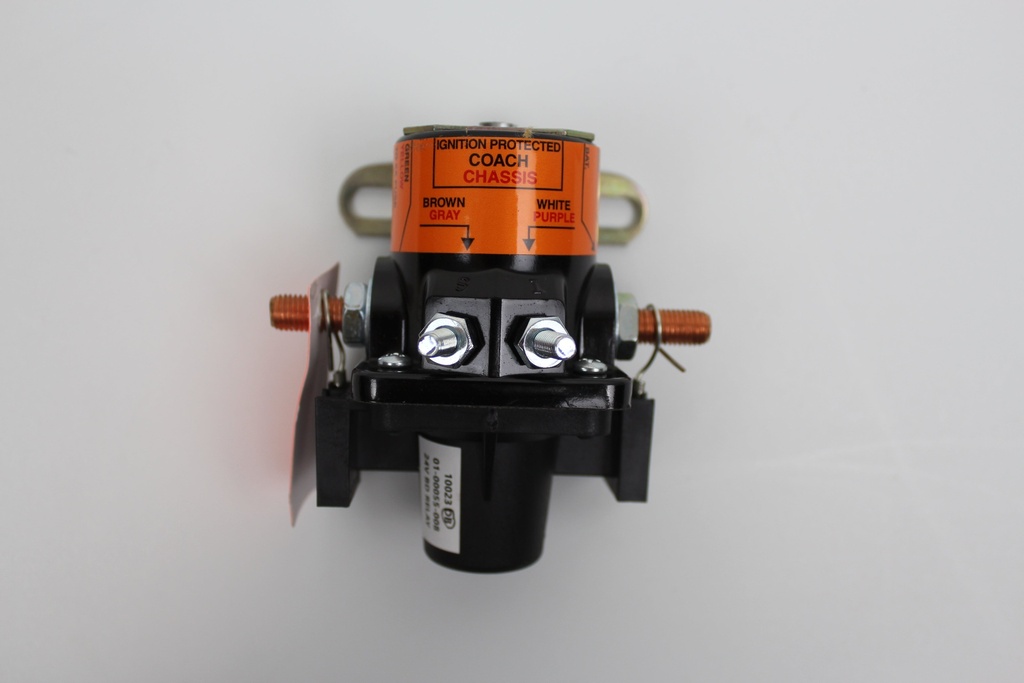

To close the relay, +24 volts is applied to the ""I"" terminal and ground the ""S"" terminal of the relay.
To open the relay, +24 volts is applied to the ""S"" terminal and ground on the ""I"" terminal.
No voltage is required for the relay to stay open or closed, All it takes is a momentary application of 24 volts from a remote (ON)/OFF/(ON) switch. On most Sea Ray boats, these battery disconnect switches are located on the MDP Main distribution Panel in the cabin. The relays are built to withstand vibration and harsh marine environments.
FUSES

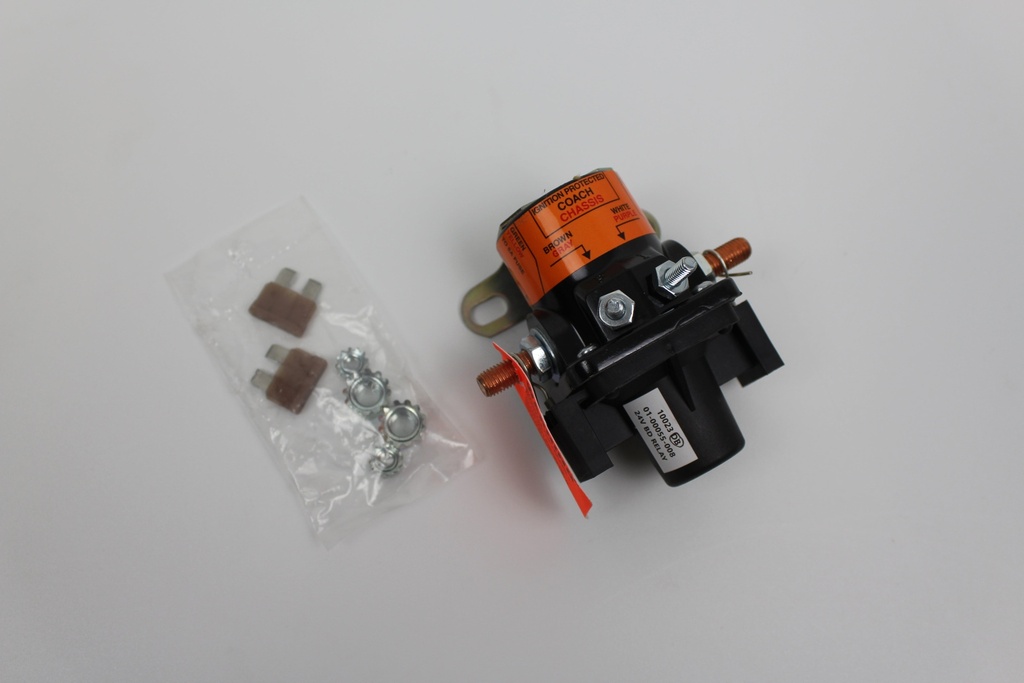

There are two 5 Amp fuses mounted on each relay. Looking at the relay with cap at the top, the fuse on the right feeds the LED indicator and if so equipped, the digital voltmeter. The fuse on the left feeds the power to the switch that operates the solenoid.
Product Specifications:
Continuous Carry Current 100 Amps max.
Short Term Carry Current 500 Amps (30 seconds max.)
Product Overview
If you are replacing a worn switch, Intellitec 100 amp battery disconnect relay solenoid 24 volt is a dependable option that helps you finish the job without extra hassle. It is commonly used for indicator and control circuits. This is a new option for customers refreshing an older setup. It is a expert marine replacement part. It is built to be long lasting and finished to a high quality standard. If you want help confirming fitment or wiring, our service team is helpful. You will speak with personable people first support with real experience.
Specifications and Details
Web Listing Details
Remotely disconnects batteries for temporary or long term storage
Intellitec Part #: 01-00055-008
THE RELAY - How it Works
The Battery Disconnect Relay is a mechanically latching switch that operates by the momentary application of battery voltage to the coil terminals in one direction for latching (closed) or the other direction for unlatching (open).
To close the relay, +24 volts is applied to the ""I"" terminal and ground the ""S"" terminal of the relay.
To open the relay, +24 volts is applied to the ""S"" terminal and ground on the ""I"" terminal.
No voltage is required for the relay to stay open or closed, All it takes is a momentary application of 24 volts from a remote (ON)/OFF/(ON) switch. On most Sea Ray boats, these battery disconnect switches are located on the MDP Main distribution Panel in the cabin. The relays are built to withstand vibration and harsh marine environments.
FUSES
There are two 5 Amp fuses mounted on each relay. Looking at the relay with cap at the top, the fuse on the right feeds the LED indicator and if so equipped, the digital voltmeter. The fuse on the left feeds the power to the switch that operates the solenoid.
Product Specifications:
Continuous Carry Current 100 Amps max.
Short Term Carry Current 500 Amps (30 seconds max.)
Fitment and Ordering Support
In marine electrical service work, Intellitec 100 amp battery disconnect relay solenoid 24 volt supports indicator and control circuits. It is typically selected when you need a reliable replacement that performs well in marine conditions and delivers a quality result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our service team is supportive. You will reach friendly real people with real know how who can help confirm the right part.
