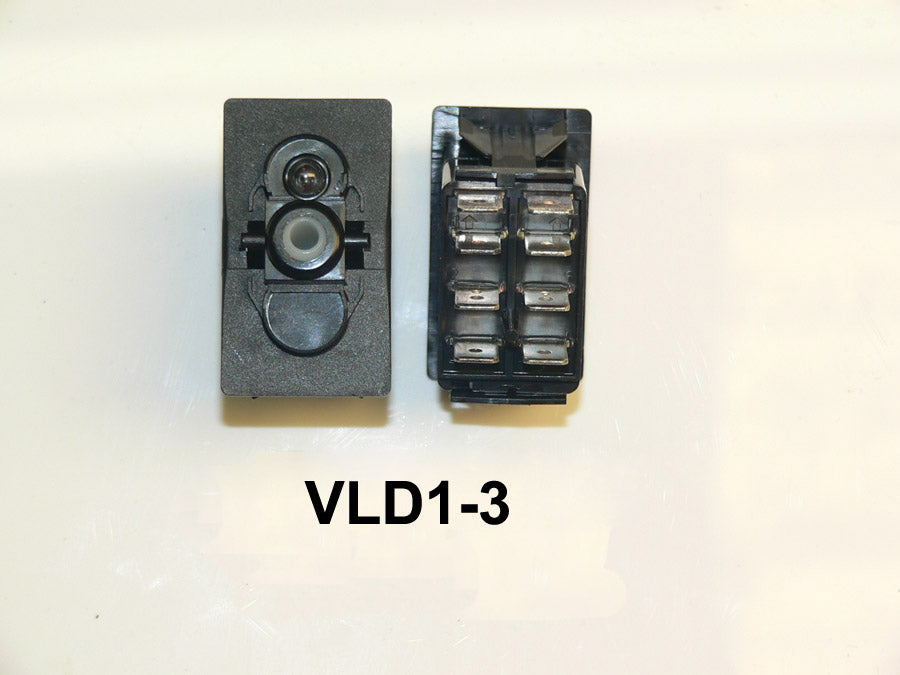

VLD1-3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, independent clear lamp in position #1.
PNL-BW180VT-stg
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
Specifications:
- OEM Part #(s): VLD1A60B
- FP Marine SKU:ELC-009081
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Single 12V Independent Clear position 1 (top),
- Sea Ray Part #(s): # 681484 681494 1733928
- Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 12V clear independent lamp in the 1 top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.
- 8 terminal; Terminals are for the lamp, Terminal #7 is the ground and Terminal #8 is the power. Terminals #2 and #5 are power in and the other two pairs of terminals #3,#6 and #1,#4 are power out. The switch is off when the actuator is in the middle position. Terminals #3 and #6 are power out when the actuator is in the up position. Terminals #1 and #4 are power out when the actuator is in the down position.
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top 2 terminals for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Windlass Main switch, Main Battery Disconnect, Sea Ray part# 681484 681494
Product Overview
VLD1 3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, independent clear lamp in position #1. is a dependable choice when you want a clean install and consistent switching performance. It is commonly used for indicator and control circuits. It is a pro grade marine replacement part. It is built to be long lasting and finished to a quality standard. If you want help confirming fitment or wiring, our customer service is helpful. You will speak with friendly people first support with real hands on expertise.
Specifications and Details
Web Listing Details
Please Click Here to See Our Library/Tech Center for Videos, Articles & FAQ's
Specifications:
- OEM Part #(s): VLD1A60B
- FP Marine SKU:ELC-009081
- Function: Momentary (ON)/OFF/(ON) DPDT
- Lamp: Single 12V Independent Clear position 1 (top),
- Sea Ray Part #(s): # 681484 681494 1733928
- Substitution(s):
* Part #(s) may vary among boat models/years & are for search/reference only.
-
This is a Switch Body Only. Actuators are sold separately.
-
(ON)/OFF/(ON) configuration, double pole double throw. momentary-on/off/momentary-on
- 12V clear independent lamp in the 1 top position. An independent lamp has both a positive and negative terminal as opposed to the standard switches that just have a negative terminal. Independent lamps can be lit independently of the actuator position as opposed to standard dependent lamps that get their power internally when the actuator moves to the on position.
- 8 terminal; Terminals are for the lamp, Terminal #7 is the ground and Terminal #8 is the power. Terminals #2 and #5 are power in and the other two pairs of terminals #3,#6 and #1,#4 are power out. The switch is off when the actuator is in the middle position. Terminals #3 and #6 are power out when the actuator is in the up position. Terminals #1 and #4 are power out when the actuator is in the down position.
- At times these switches are wired differently. The important thing to remember is how the switch operates. When the bottom of the actuator is depressed, the middle two terminals make contact with the top two (active) terminals that are side by side (ignore the very top 2 terminals for the light, for the moment) . When the top of the actuator is depressed, the middle two terminals make contact with the bottom two terminals. As with all double pole switches, the two sides are independent of each other. So the terminals on the left side of the switch never make contact with the terminals on the right side of the switch unless you install an external jumper wire.
- Common for Marine, RV, automotive, and other 12V DC applications.
- Windlass Main switch, Main Battery Disconnect, Sea Ray part# 681484 681494
Fitment and Ordering Support
In marine electrical service work, VLD1 3 Carling (ON)/OFF/(ON) double pole momentary rocker switch, independent clear lamp in position #1. supports indicator and control circuits. It is typically selected when you need a dependable replacement that performs well in marine conditions and delivers a premium result. Before ordering, confirm the switch function and terminals, then compare photos and specifications to what is installed now. If anything is unclear, our customer service is helpful. You will reach easy to work with people first support with real hands on expertise who can help confirm the right part.
