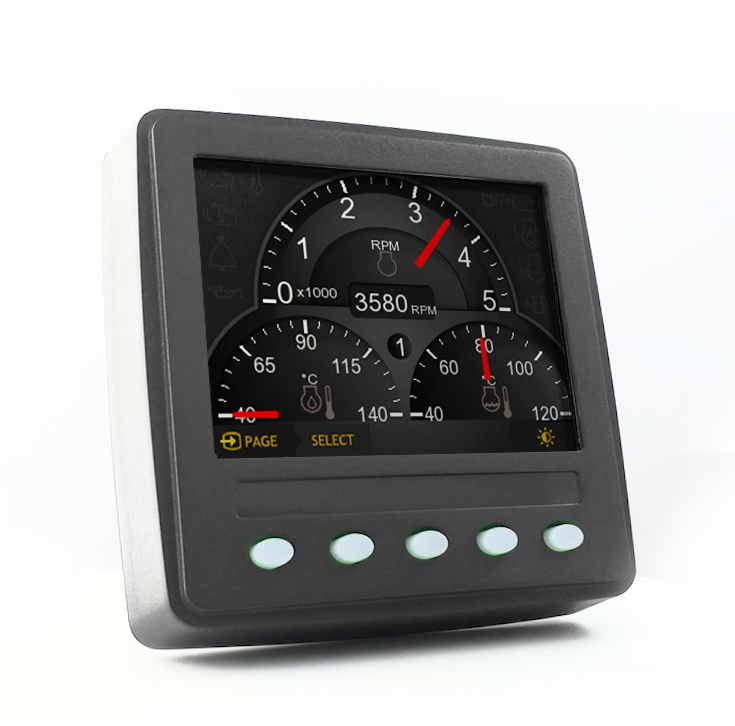

C3 3.5" VeeCan Color Display EGM Universal Engine Gateway Monitor. Analog to NMEA 2000 69838E

VeeThree EGM NMEA2000, J1939, Analog

This powerful display can receive Analog inputs, J1939 inputs (diesel and industrial), and NMEA2000. The display can convert the analog and J1939 inputs to NMEA2000 and feed the data to the network, allowing it to be displayed on other NMEA2000 devices. So this Gateway monitor/display can read data from older engines and display it on your multi function display! These monitors have been used extensively in the heavy equipment industry for many years.

The VeeThree Universal Engine Gateway/Monitor is designed to be used with ALL engine types converting, displaying, and re-transmitting NMEA2000 engine data measured from traditional analog engine sender signals or from J1939 or NMEA200.

Engine Gateway (Analog to NMEA2000): The EGM replaces the need for expensive, dedicated gateway modules and provides the user with the added advantage of a full color interactive monitor screen that can be used in place or alongside traditional gauges.

Engine Monitor: The EGM is driven by CANvu softwareproviding selectable icon based display layouts; including a comprehensive multi-language text-based fault warning and acknowledgement system and a series of "hidden until lit" alarm lamps.

The C3 has a 3.5inch color display with fully integrated input and output features including 7 analog inputs, 4 relay outputs combined with 2 digital inputs, 1 tachometer, 2 CAN input connections (supporting SAE J1939, NMEA 2000), plus a USB port it is part of the compact, flexible, and rugged CAN bus display & monitors from Veethree.

The 69872 gauge is a component of 69838E kit

The QVGA color display can be viewed in full sunlight, and the unit is totally sealed and electronically extremely durable. The C3 monitor is equipped to meet the challenge of providing tough, flexible, maintenance free instrumentation in even the very harshest of environments.

Parameters Supported:
Engine Speed
Engine Load and Torque
Engine Hours
Water Pressure
Water Temperature
Oil Pressure
Battery Voltage
Turbo Boost
Fuel Level
Fuel Rate/ Economy, etc
Fuel Used/ Distance to Empty/Time to Empty,etc
Fuel Pressure
Rudder Angle
Boat Speed
Heading
Depth

Please email us for a full data sheet on this product
