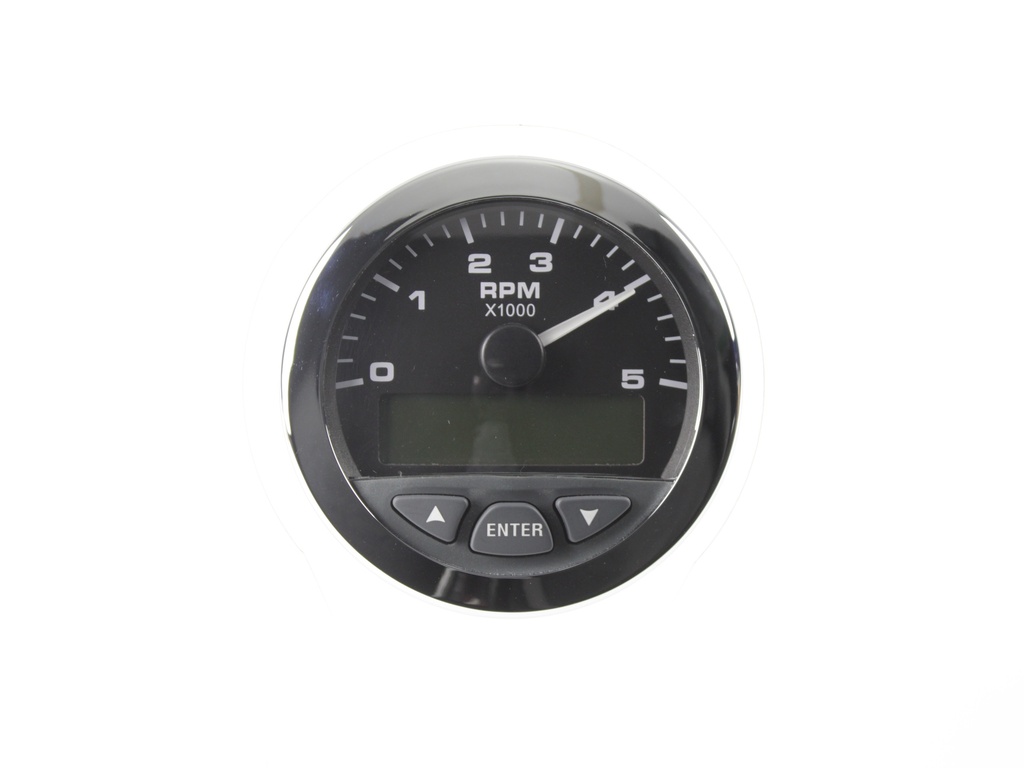

Matrix Tach - J1939 Cummins 5k 781596SDFB

• Manufacturer / Part #: ​Veethree - / 781596SDFB
• ​Series: ​​Matrix - Cummins J1939
• ​Size: ​3 inch (3.37"/85.5mm hole cutout)
• Range: ​​​​0-5000 RPM
• Connection Type: ​​​​M12-5 N2K connection
• Features:
• • ​White graphics on Black face
  • ​Polished stainless steel trim ring
  • ​2 tone dial - Black hub w/ White pointer
  • ​Dimmable Red LED backlighting
  • ​Anti-Fog, scratch resistant domed glass lens
• Applications: ​​​​Cummins Diesel

The Matrix gauge set is an affordable, high-value range of digital instruments designed to operate on NMEA2k engines (max 4 engines/2 stations.) Accurate reliable information is provided on a clean, easy-to-read gauge with an LCD display and soft-function tactile buttons for navigating through the menu interface. With the push of a button the operator has easy access to the status of the engine including fault alerts, diagnostic messages and other important parameter information using J1939 protocols.

In a Matrix gauge set, the 3” Tachometer is the master and connects directly to the J1939 data bus. All other gauges are servants and connect to the Tachometer private bus. The Tachometer reads the applicable engine parameters and forwards them on the private bus for the applicable gauges.
